S6720S-32X-LI-32S-AC
1668.16
Details
Huawei S6720S-32X-LI-32S-AC is a next-generation simplified 10GE fixed switch. It can be used as 10GE access switches on campus networks and data center networks. S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.
Moreover, S6720-LI provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or users. DoS attacks include SYN flood, Land, Smurf, and ICMP flood attacks. Attacks to networks refer to STP BPDU/root attacks. Attacks to users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP r equest flood attacks. DoS attacks that change the CHADDR field in DHCP packets are also attacks against users

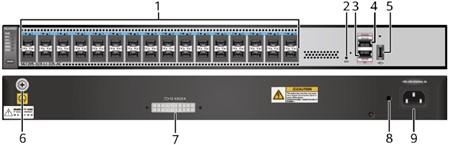

| 1; Thirty-two 10GE SFP+ ports | 2, One PNP button |
| 3, One ETH management port | 4, One console port |
| 5, One USB port | 6, Ground screw |
| 7, RPS socket | 8, Jack for AC power cable locking strap |
| 9, AC socket |
Huawei S6720S-32X-LI-32S-AC Specifications
| Item | Description |
| Model | S6720S-32X-LI-32S-AC |
| Part number | 98010694 |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 42.8 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | ±6 kV in differential mode, ± 6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.) | |
| Weight (including package) | 4.3 kg (9.48 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 108.5 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 71.8 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 46.4 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S6720S-32X-LI-32S-AC Features
l S6720-LI supports various IPv6 routing protocols including RIPng and OSPFv3. It uses the IPv6 Neighbor Discovery Protocol (NDP) to manage packets exchanged between neighbors. It also provides the Path MTU Discovery (PMTU) mechanism to select a proper MTU on the path from the source to the destination, optimizing network resources and obtaining the maximum throughput.
l S6720-LI supports automatic configuration, plug-and-play, deployment using a USB flash drive, and batch remote upgrade. These capabilities simplify device management and maintenance, and greatly reduce maintenance costs.
l S6720-LI supports SNMPv1/v2/v3 and provides flexible methods for managing and maintaining devices, such as CLI and Web NMS. The NQA function helps users with network planning and upgrades. In addition, the S6720-LI supports NTP, SSH v2, HWTACACS, RMON, log hosts, and port-based tr affic statistics.
l S6720-LI supports GVRP, which dynamically distributes, registers, and propagates VLAN attributes to reduce the manual configuration workloads of network administrators and ensure correct VLAN configuration.
Huawei S6720S-32X-LI-32S-AC Ordering Info
| Module | Product Description |
| S6720-16X-LI-16S-AC | S6720-16X-LI-16S-AC (16 10GE SFP+, AC power supply) |
| S6720S-16X-LI-16S-AC | S6720S-16X-LI-16S-AC (16 10GE SFP+, AC power supply) |
| S6720-26Q-LI-24S-AC | S6720-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, AC power supply) |
| S6720S-26Q-LI-24S-AC | S6720S-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, AC power supply) |
| S6720-32X-LI-32S-AC | S6720-32X-LI-32S-AC (32 10GE SFP+, AC power supply) |
| S6720S-32X-LI-32S-AC | S6720S-32X-LI-32S-AC (32 10GE SFP+, AC power supply) |

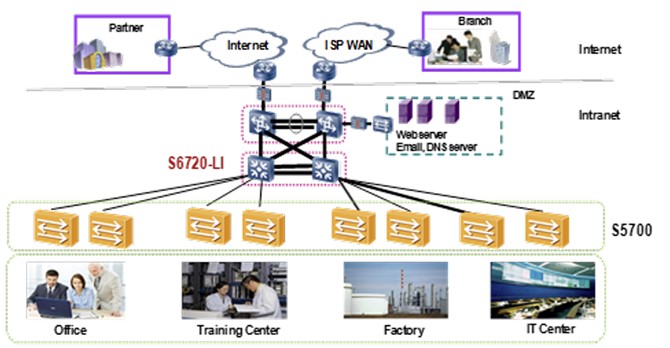

Huawei S6720S-32X-LI-32S-AC Networking and Applications
More Information
| Brand | Huawei |
|---|
