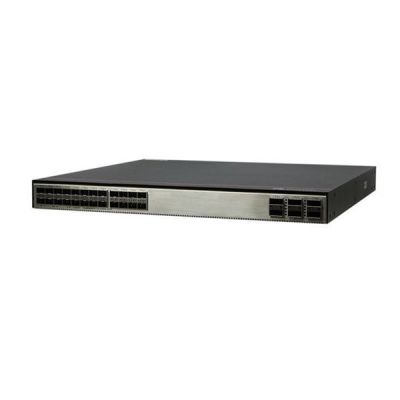

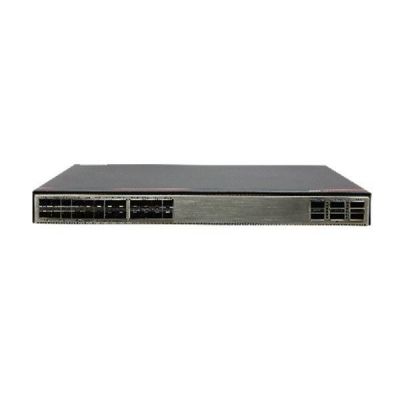

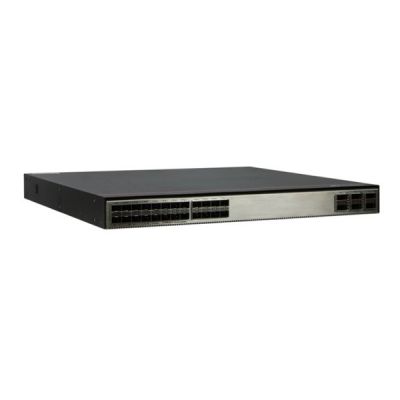

CloudEngine S6730S-H24X6C-A
1815.25
Details
Huawei CloudEngine S6730S-H24X6C-A is a next generation enterprise class core and aggregation switch. It builds on an industry leading Versatile Routing Platform (VRP) and are purpose built with security, IoT, and cloud in mind. With these traits, S6730-H can be widely used in enterprise campuses, colleges/un iversities, data centers, and other scenarios.
In addition, S6730-H switches support VXLAN to implement network virtualization, achieving multi purpose networks and multi network convergence for greatly improved network capacity and utilization. As such, S6730-H switches are an ideal choice for building next generation IoT converged networks in terms of cost, flexibility, and scalabili ty.

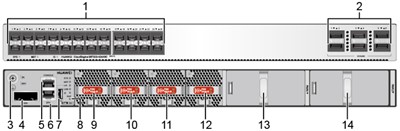

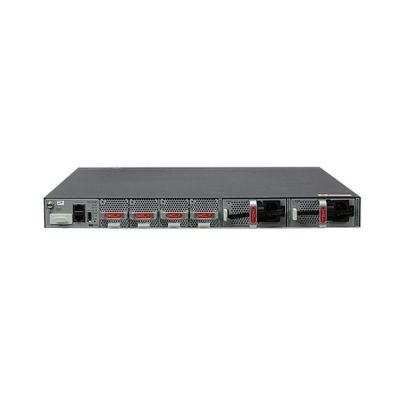

| 1, Twenty-four 10GE SFP+ ports | 2, Six 40GE/100GE QSFP28 optical ports |
| 3, Ground screw | 4, SSD card slot |
| 5, One console port | 6, One ETH management port |
| 7, One USB port | 8, One PNP button |
| 9, Fan module slot 1 | 10, Fan module slot 2 |
| 11, Fan module slot 3 | 12, Fan module slot 4 |
| 13, Power module slot 1 | 14, Power module slot 2 |
Huawei CloudEngine S6730S-H24X6C-A Specifications
| Item | Description |
| Part number | 02353HVK 02353HVK-001 02353HVK-003 02353HVK-004 |
| Memory (RAM) | 4 GB |
| Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 62.27 years |
| Availability | > 0.99999 |
| Service port surge protection | N/A |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Weight (with packaging) | 9.84 kg (21.69 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
AC input: 100 V AC to 240 V AC, 50/60 Hz
|
| High-Voltage DC input: 240 V DC | |
| DC input: -48 V DC to -60 V DC | |
| Maximum voltage range |
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
|
| High-Voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 254 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 149 W |
| Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
|
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.) |
Huawei CloudEngine S6730S-H24X6C-A Features
l S6730S-H supports SVF and functions as a parent switch. With this virtualization technology, a physical network with the "Small-sized core and aggregation switches + Access switches + APs" structure can be virtualized into a "super switch", greatly simplifying network management.
l S6730S-H provides excellent QoS capabilities and supports queue scheduling and congestion control algorithms. Additionally, it adopts innovative priority queuing and multi-level scheduling mechanisms to implement finegrained scheduling of data flows, meeting service quality requirements of different user terminals and services.
l S6730S-H supports Two-Way Active Measurement Protocol (TWAMP) to accurately check any IP link and obtain the entire network's IP performance. This protocol eliminates the need of using a dedicated probe or a proprietary protocol.
l S6730S-H supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One CloudEngine S6730-H switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.
Huawei CloudEngine S6730S-H24X6C-A Networking and Applications
More Information
| Brand | Huawei |
|---|
