S6720S-16X-LI-16S-AC
816.24
Details
Huawei S6720S-16X-LI-16S-AC is a next-generation simplified 10GE fixed switch with 16 x 10GE SFP+ ports, Built-in AC power supply and redundant power supply (RPS). It can be used as 10GE access switches on campus networks and data center networks. S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the switch supports MSTP multi-process that enhances the existing STP, RSTP, and MSTP implementation. This function increases the number of MSTIs supported on a network. It also supports enhanced Ethernet reliability technologies such as Smart Link and RRPP, which implement millisecondlevel protection switchover and ensure network reliability. Smart Link and RRPP both support multiinstance to implement load balancing among links, improving bandwidth use efficiency.

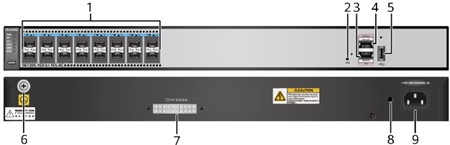

| 1, Sixteen 10GE SFP+ ports | 2, One PNP button |
| 3, One ETH management port | 4, One console port |
| 5, One USB port | 6, Ground screw |
| 7, RPS socket | 8, Jack for AC power cable locking strap |
| 9, AC socket |
Huawei S6720S-16X-LI-16S-AC Specifications
| Item | Description |
| Part number | 98010688 |
| Model | S6720S-16X-LI-16S-AC |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 39.2 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | ±6 kV in differential mode, ± 6 kV in common mode |
| Weight (including package) | 4.1 kg (9.04 lb) |
| Stack ports | Any 10GE SFP+ ports |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 67.9 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 45.2 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 46.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.) |
Huawei S6720S-16X-LI-16S-AC Features
l S6720-LI supports DHCP snooping, which generates user binding entries. DHCP snooping discards invalid packets that do not match any binding entries, such as ARP spoofing packets and IP spoofing packets. This prevents hackers from using ARP packets to initiate attacks on campus networks. DHCP snooping trusted ports can be specified to ensure that users connect only to the authorized DHCP server.
l S6720-LI supports strict ARP learning. This feature prevents ARP spoofing attackers from exhausting ARP entries so that users can connect to the Internet normally. The S6720-LI supports IP source check to prevent DoS attacks caused by MA C address spoofing, IP address spoofing, and MAC/IP spoofing
l S6720-LI supports enhanced trunk (E-trunk). A CE can be dual-homed to two PEs through Eth-Trunk links. This implements inter-device link aggregation and link load balancing, and greatly improves reliability of access devices.
l S6720-LI supports the Smart Ethernet Protection (SEP) protocol, a ring network protocol applied to the link layer of an Ethernet network. SEP can be used on open ring networks and provides millisecond level switchover to ensure nonstop services. SEP features simplicity, high reliability, fast switchover, easy maintenance, and flexible topology, facilitating network planning and management
Huawei S6720S-16X-LI-16S-AC Ordering Info
| Module | Product Description |
| S6720-16X-LI-16S-AC | S6720-16X-LI-16S-AC (16 10GE SFP+, AC power supply) |
| S6720S-16X-LI-16S-AC | S6720S-16X-LI-16S-AC (16 10GE SFP+, AC power supply) |
| S6720-26Q-LI-24S-AC | S6720-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, AC power supply) |
| S6720S-26Q-LI-24S-AC | S6720S-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, AC power supply) |
| S6720-32X-LI-32S-AC | S6720-32X-LI-32S-AC (32 10GE SFP+, AC power supply) |
| S6720S-32X-LI-32S-AC | S6720S-32X-LI-32S-AC (32 10GE SFP+, AC power supply) |
Huawei S6720S-16X-LI-16S-AC Networking and Applications
More Information
| Brand | Huawei |
|---|
