S6720-16X-LI-16S-AC
886.15
Details
Huawei S6720-16X-LI-16S-AC is a next-generation simplified 10GE fixed switch with 16 x 10GE SFP+ ports. It can be used as 10GE access switch on campus networks and data center networks. In addition, S6720-LI provides line-rate 10GE access ports and 40GE uplink ports, and delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.

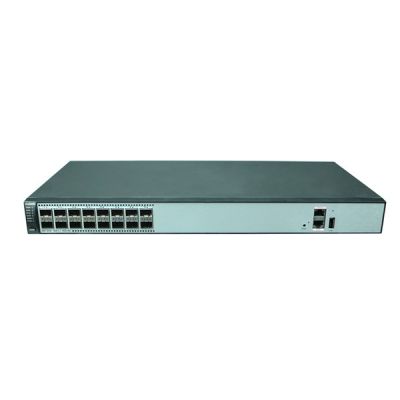

| 1, Sixteen 10GE SFP+ ports | 2, One PNP button |
| 3, One ETH management port | 4, One console port |
| 5, One USB port | 6, Ground screw |
| 7, RPS socket | 8, Jack for AC power cable locking strap |
| 9, AC socket |
Huawei S6720-16X-LI-16S-AC Specifications
| Item | Description |
| Model | S6720-16X-LI-16S-AC |
| Part number | 98010687 |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 39.2 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | ±6 kV in differential mode, ± 6 kV in common mode |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.) | |
| Weight (including package) | 4.1 kg (9.04 lb) |
| Stack ports | Any 10GE SFP+ ports |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 67.9 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 45.2 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 46.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S6720-16X-LI-16S-AC Features
l To provide sufficient bandwidth for users, more and more servers use 10G network adapters. The S6720-LI has the highest density of 10GE ports and largest switching capacity among counterpart switches. Each S6720-LI provides up to 32 line-rate 10GE ports and two line-rate QSFP+ ports.
l Ports of the S6720-LI support GE access and 10GE access and can identify optical module types, maximizing the return on investment and allowing users to flexibly deploy services.
l S6720-LI provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or users. DoS attacks include SYN flood, Land, Smurf, and ICMP flood attacks. Attacks to networks refer to STP BPDU/root attacks. Attacks to users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoS attacks that change the CHADDR field in DHCP packets are also attacks against users.
l S6720-LI supports DHCP snooping, which generates user binding entries. DHCP snooping discards invalid packets that do not match any binding entries, such as ARP spoofing packets and IP spoofing packets. This prevents hackers from using ARP packets to initiate attacks on campus networks. DHCP snooping trusted ports can be specified to ensure that users connect only to the authorized DHCP server.
Huawei S6720-16X-LI-16S-AC Ordering Info
| Module | Product Description |
| S6720-16X-LI-16S-AC | S6720-16X-LI-16S-AC (16 10GE SFP+, AC power supply) |
| S6720S-16X-LI-16S-AC | S6720S-16X-LI-16S-AC (16 10GE SFP+, AC power supply) |
| S6720-26Q-LI-24S-AC | S6720-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, AC power supply) |
| S6720S-26Q-LI-24S-AC | S6720S-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, AC power supply) |
| S6720-32X-LI-32S-AC | S6720-32X-LI-32S-AC (32 10GE SFP+, AC power supply) |
| S6720S-32X-LI-32S-AC | S6720S-32X-LI-32S-AC (32 10GE SFP+, AC power supply) |
Huawei S6720-16X-LI-16S-AC Networking and Applications
More Information
| Brand | Huawei |
|---|
