S7712
4998.69
Details
Huawei S7712 Routing Switch is designed for nextgeneration enterprise networks. It supports two SRUs, twelve LPUs, and AC or DC power modules in 1+1 or 2+2 backup mode. S7700 is based on Huawei's intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive QoS policies, controllable multicast, load balancing, and security, in addition to highperformance Layer 2 to Layer 4 switching services. The S7700 also features superb scalability and reliability. The product can function either as an aggregation or core node on a campus network or in a data center to provide integrated wireless access. It also offers voice, video, and data services, helping enterprises build an integrated cost-effective end-to-end network.
Huawei's Packet Conservation Algorithm for Internet (iPCA) technology changes the traditional method that uses simulated traffic for fault location. iPCA technology monitors network quality for any service flow at any network node, at any time, and without extra costs. It can detect temporary service interruptions within one second and can identify faulty ports accurately. This cutting-edge fault detection technology turns "extensive management" into "fine granular management."
Huawei's IEEE 1588v2 and Synchronous Ethernet (SyncE) solutions enable high-precision time synchronization between network devices. Compared with the Global Positioning System (GPS) time synchronization solution, Huawei's solutions enhance security while reducing costs.

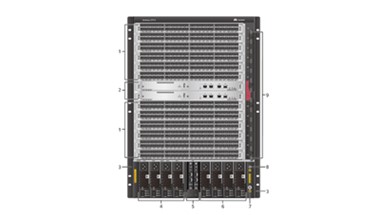

| 1, Twelve of the service cards | 2, Two MPUs |
| 3, A pair of mounting brackets | 4, Four power modules |
| 5, Two EH1D200CMU00-Centralized Monitoring Unit | 6, Four PoE power modules |
| 7, Ground screw | 8, Front ESD jack |
| 9, Cable management frames |

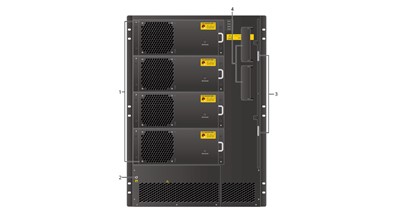

| 1, Four Fan Module | 2, Rear ESD jack |
| 3, Air filter | 4, A pair of removable handles |
Huawei S7712 Routing Switch Specifications
| Item | Description |
| Part number |
S7712 chassis: 02113306
S7712 chassis, PoE supported: 02113308 S7712 chassis, FCC certified: 02113961 S7712 chassis, PoE supported, FCC certified: 02113963 |
| Description | Supports two SRUs, twelve LPUs, and AC or DC power modules in 1+1 or 2+2 backup mode |
| LPU slots | 12 |
| MPU slots | 2 |
| Fan slots | 4 |
| System power supply slots | 4 |
| PoE power supply slots | 4 |
| Maximum port density | V100R006C00: 576xFE, 576xGE, 144x10GE |
| V200R001C00: 576xFE, 576xGE, 480x10GE | |
| V200R002C00 to V200R007C00: 576xFE, 576xGE, 480x10GE, 24x40GE | |
| V200R008C00 to V200R009C00: 576xFE, 576xGE, 480x10GE, 24x40GE, 24x100GE | |
| V200R010C00 to V200R019C00: 576xFE, 576xGE, 576x10GE, 96x40GE, 48x100GE | |
| V200R019C00 to V200R020C10: 576xFE, 576xGE, 576x10GE, 96x40GE, 72x100GE | |
| V200R021C00 and later versions: 576xFE, 576xGE, 576x10GE, 144x40GE, 72x100GE | |
| Installation | In an N66E or N68E cabinet, one cabinet for one chassis |
| CSS | CSS card or service port clustering |
| PoE | Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply |
| PoE power module backup: no backup, 3+1 backup, or 2+2 backup | |
| Maximum output power: 9000 W | |
| Maximum power consumption (fully configured, no PoE power supply) | 4200 W |
| Power specifications | DC input voltage |
| Rated voltage: -48 V DC/-60 V DC | |
|
Maximum voltage range:
|
|
| 1600 W DC power module: -38.4 V DC to -72 V DC | |
| 2200 W DC power module: -40 V DC to -72 V DC | |
| AC input voltage | |
| Rated voltage: 110 V AC/220 V AC, 50/60 Hz | |
| Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) | |
| HVDC input voltage (3000 W AC) | |
| Rated voltage: 240 V DC | |
| Maximum voltage range: 190 V DC to 290 V DC | |
| Dimensions (H x W x D, without rack-mounting brackets) | With cable management frames (15 U high): 663.9 mm x 442 mm x 585 mm (26.1 in. x 17.4 in. x 23.0 in.) |
| Without cable management frames (15 U high): 663.9 mm x 442 mm x 517.4 mm (26.1 in. x 17.4 in. x 20.37 in.) | |
| Weight (empty/fully configured) | 25 kg/97 kg (55.1 lb/213.8 lb) |
| Reliability and availability | MTBF: 24.1 years Availability: 0.9999959 |
| Environment specifications | Operating temperature and altitude: |
| -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) | |
| 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). | |
| 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) | |
| Relative humidity: 5% RH to 95% RH (noncondensing) | |
| Storage temperature: -40°C to +70°C (-40°F to +158°F) | |
| Storage altitude: < 5000 m (16404 ft.) | |
| Noise at normal temperature (acoustic power) | ≤ 72 dB(A) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S7712 Routing Switch Features
l S7700's multi-service routing and switching platform meets requirements for service bearing at the access layer, aggregation layer, and core layer of enterprise networks. The S7700 provides wireless access along with voice, video, and data services, helping enterprises build integrated full-service networks with high availability and low latency.
l S7700 innovatively implements the CSS function through switch fabrics, and packets are only switched once when they are forwarded between chassis. This addresses the problem of low switching efficiency caused by multiple switching processes during inter-chassis forwarding in clusters established using line cards. The cluster provides the industry's highest cluster bandwidth 256 Gbit/s, In addition, inter-chassis link aggregation can be used to improve link use efficiency and prevent single-point failures.
l S7700's QoS control mechanisms classify traffic based on information from the link layer to the application layer. With advanced queue scheduling and congestion control algorithms, the S7700 performs accurate multi-level scheduling for data flows, satisfying enterprises' QoS requirements for a variety of services and user terminals.
l S7700's load balancer supports multiple load balancing algorithms, including the weighted round robin (WRR) algorithm, least connection algorithm, hash algorithm based on the IP address, and hash algorithm based on the URL in HTTP packets
Huawei S7712 Routing Switch Ordering Info
| LE0BN66EDC | N66E DC Assembly Rack (Four 40A outputs, maximum 1600W per output, 600X600X2200mm) |
| LE0BN66EAC | N66E AC Assembly Rack (Eight 10A Outputs, maximum 1600W per output, 600X600X2200mm) |
| LE2BN66EA000 | N66E AC Assembly Rack (Four 16A Outputs, maximum 2500W per output, 600X600X2200mm) |
| ES0B00770300 | S7703 Assembly Chassis |
| SWC02BAKN001 | S7703 PoE assembly chassis |
| ES0B00770600 | S7706 Assembly Chassis |
| SWC02BAKJ000 | S7706 PoE assembly chassis |
| ES0B00771200 | S7712 Assembly Chassis |
| ES0E2FBX | Wide Voltage Fan Box |
| ES1M00FBX001 | Enhancement Wide Voltage 68 Fan Box |
| EH1M00FBX000 | Wide Voltage 74 Fan Box |
| EH1D200CMU00 | Centralized Monitoring Board |
| ES0D00MCUA00 | S7703 Main Control Unit A |
| ES1D2MCUD000 | S7703 Main Control Unit D |
| LSS7MCUD0001 | S7703 Main Control Unit D |
| ES0D00SRUA00 | S7706/S7712 Main Control Unit A |
| ES1D2SRUE000 | S7706/S7712,Main Control Unit E |
| ES1D2SRUH000 | S7706/S7712 Main Control Unit H |
| LSS7SRUHA100 | S7706/S7712 Main Control Unit H(A1) |
| LSS7SRUHX100 | S7706/S7712 Main Control Unit H(X1) |
| LSS7SRUHX101 | S7706/S7712 Main Control Unit H(X1) |
| LSS7SRUH1000 | S7706/S7712,Main Control Unit H |
| LSS7SRUE1000 | S7706/S7712,Main Control Unit E |
| ES02VSTSA | Cluster Switching System Service Unit |
| ES1D2VS04000 | 4-Port 10G Cluster Switching System Service Unit (SFP+) |
| ES0D0G48TC01 | 48-Port 10/100/1000BASE-T Interface Card (EC, RJ45) |
| ES1M2G48TX5S | 48-port 10/100/1000BASE-T interface card (X5S,M,RJ45) |
| ES1M2G48TX5E | 48-port 10/100/1000BASE-T interface card (X5E,M,RJ45) |
| LSS7G48TA1S0 | 48-port 10/100/1000BASE-T interface card (EA1, RJ45) |
| LSS7G48TA1E0 | 48-port 10/100/1000BASE-T interface card (EC1, RJ45) |
| LSS7G48TX6E0 | 48-port 100/1000BASE-T interface card (X6E,RJ45) |
| LSS7G48VX5E0 | 48-port 100/1000BASE-T PoE interface card (X5E, RJ45, PoE++) |
| LSS7G48VA1S0 | 48-port 10/100/1000BASE-T PoE interface card (EA1, RJ45, PoE++) |
| LSS7G48VX6E0 | 48-port 100/1000BASE-T interface card (X6E,RJ45,PoE++) |
| ES0D0G48SC01 | 48-Port 100/1000BASE-X Interface Card (EC, SFP) |
| LSS7G48SX6S0 | 48-port GE SFP interface card (X6S,SFP) |
| LSS7G48SX6E0 | 48-port GE SFP interface card (X6E,SFP) |
| LSS7G48SA1S0 | 48-Port 100/1000BASE-X Interface Card(EA1,SFP) |
| LSS7G48SA1E0 | 48-Port 100/1000BASE-X Interface Card(EC1,SFP) |
| ES1D2X08SX5H | 8-port 10GE SFP+ interface card (X5H, SFP+) |
| ES0D0X12SA01 | 12-Port 10GBASE-X Interface Card(SA, SFP+) |
| LSS7X24BX6S0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6S,SFP+) |
| LSS7X24BX6E0 | 24-port 10GE SFP+ interface and 24-port GE SFP interface card (X6E,SFP+) |
| ES1D2X16SSC2 | 16-Port 10GBASE-X Interface Card (SC,SFP+) |
| ES1D2X32SSC0 | 32-Port 10GBASE-X Interface Card (SC,SFP+) |
| LSS7X48SX6S0 | 48-port 10GE SFP+ interface card (X6S,SFP+) |
| LSS7X48SX6E0 | 48-port 10GE SFP+ interface card (X6E,SFP+) |
| LSS7M24VX6S1 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6S,RJ45,PoE++) |
| LSS7M24VX6E1 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45,PoE++) |
| LSS7M24BX6S0 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6S,RJ45) |
| LSS7M24BX6E0 | 24-port 100M/1G/2.5G/5G/10G and 24-port 100M/1G interface card (X6E,RJ45) |
| LSS7L12QX6E0 | 12-port 40GE QSFP+ inferface card (X6E,QSFP+) |
| LSS7C02BX6E0 | 2-port 100GE QSFP28 interface and 4-port 40GE QSFP28 interface card (X6E,QSFP28) |
| LSS7C06HX6S0 | 6-port 100GE QSFP28 interface card (X6S,QSFP28) |
| LSS7C06HX6E0 | 6-port 100GE QSFP28 interface card (X6E,QSFP28) |
| ES02PSD16 | 1600W DC Power Module(Black) |
| W2PSA0800 | 800W AC Power Module(Black) |
| PAC-2200WF | 2200W AC Power Module |
| W2PSD2200 | 2200W DC Power Module(Black) |
| PAC3KS54-CE | 3000W AC power module (black) |
| PAC3KS54-NE | 3000W AC power module (black) |
| LE0W01DPDB | DC Power Distribution Unit (Four 40A outputs, maximum 1600 W per output, include power cable) |
| IN6W18L10A | AC Power Distribution Unit (Eight 10A outputs, maximum 1600 W per output, include power cable) |
| IM1W24APD | AC Power Distribution Unit (Four 16A outputs, maximum 2500 W per output, include power cable) |
| ES1SMS2J7701 | S7700 Basic SW,V200R019C10 |
| ESS7R20C00SW | S7700 Basic SW,V200R020C00 |
| ESS7R20C10SW | S7700 Basic SW,V200R020C10 |
| ESS7R21C00SW | S7700 Basic SW,V200R021C00 |
| ESS7R21C01SW | S7700 Basic SW,V200R021C00 |
| ES0SSVFF7700 | SVF Function License(with S7700 used) |
| ES0SMPLS7700 | MPLS Function License |
| ES0SNQAF7700 | NQA Function License |
| ES0SIPV67700 | IPV6 Function License |
| ES1SVXLAN000 | VXLAN enhanced function license(used in S7700 series) |
| ES1SFIB128K0 | X-series LPU FIB Resource License-128K |
| ES1SWL512AP0 | WLAN Access Controller AP Resource License-512AP (with the X-series LPU used) |
| ES1SWL128AP0 | WLAN Access Controller AP Resource License-128AP (with the X-series LPU used) |
| ES1SWL64AP00 | WLAN Access Controller AP Resource License-64AP (with the X-series LPU used) |
| ES1SWL16AP00 | WLAN Access Controller AP Resource License-16AP (with the X-series LPU used) |
| ES1SPPPOE4K0 | PPPoE Access Subscriber Resource License-4K (with the X-series LPU used) |
| ES1SPPPOE8K0 | PPPoE Access Subscriber Resource License-8K (with the X-series LPU used) |
| ES1SPPPOE16K | PPPoE Access Subscriber Resource License-16K (with the X-series LPU used) |
| L-ACU2-128AP | ACU2 Wireless Access Controller AP Resource License(128 AP) |
| N1-S77-F-Lic | N1-CloudCampus,Foundation,S77 Series,Per Device |
| N1-S77-F-SnS1Y | N1-CloudCampus,Foundation,S77 Series,SnS,Per Device,1Year |
| N1-S77-A-Lic | N1-CloudCampus,Advanced,S77 Series,Per Device |
| N1-S77-A-SnS1Y | N1-CloudCampus,Advanced,S77 Series,SnS,Per Device,1Year |
| N1-S77-FToA-Lic | N1-Upgrade-Foundation to Advanced,S77 Series,Per Device |
| N1-S77-FToA-SnS1Y | N1-Upgrade-Foundation to Advanced,S77 Series,SnS,Per Device,1Year |
| N1-AC1.0-AM-15-Lic | N1-CloudCampus,Access Management-AC1.0,15 Terminals |
| N1-AC1.0-AM-15-SnS1Y | N1-CloudCampus,Access Management-AC1.0,15 Terminals,SnS,1Year |
| CI-X7MSwitch-U | CampusInsight-Upgrade-Foundation to Advanced, X7 Series Modular Switch, Per Device |
| CI-X7MSwitch-U-SnS1Y | CampusInsight-Upgrade-Foundation to Advanced, X7 Series Modular Switch, SnS, Per Device, 1 Year |
| EH1IV2RDC0E0 | S7700 and S9700 Series Switches V200R013C00 Product Documentation |
| EH1IV2RJC0E0 | S7700 Series Switches V200R019C00 Product Documentation |
| EH1IV2RJC1E0 | S7700 Series Switches V200R019C10 Product Documentation |

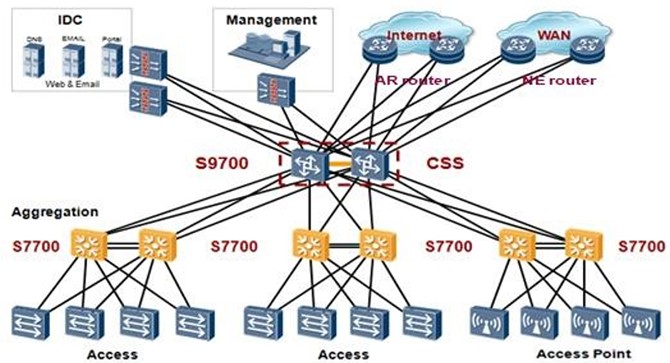

Huawei S7712 Routing Switch Networking and Applications
More Information
| Brand | Huawei |
|---|
