S6720S-26Q-LI-24S-AC
2519.89
Details

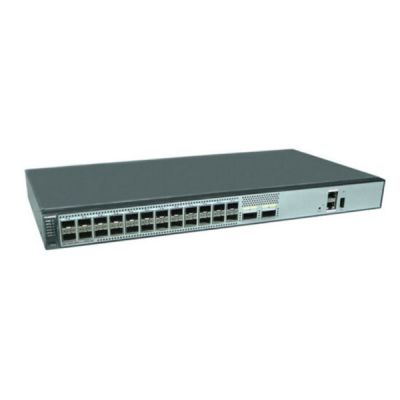

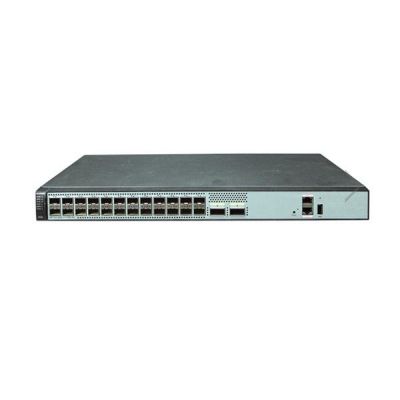

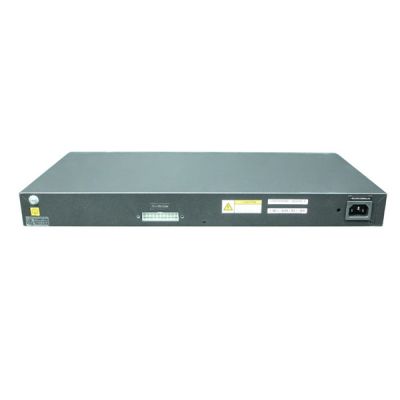

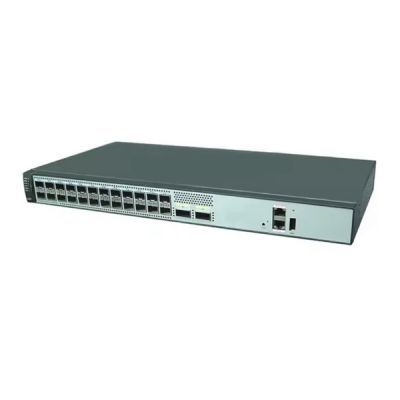

Huawei S6720S-26Q-LI-24S-AC is a next-generation simplified 10GE fixed switch with 24 x 10GE SFP+ ports, 2 x 40GE QSFP+ ports. It can be used as 10GE access switches on campus networks and data center networks. In addition, S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.
S6720-LI supports intelligent stack (iStack) and virtualizes multiple switches into one logical switch. A port of the S6720-LI can be configured as a stack port using a command for flexible stack deployment. The distance between stacked switches is further increased when the switches are connected with optical fibers. Compared with a single device, iStack has advantages on scalability, reliability, performance, and overall architecture. A new switch can join a stack to increase the system capacity or replace a faulty member switch without interrupting services. Compared with stacking of modular switches, the iStack function can increase system capacity and port density with no restriction of the hardware architecture. Multiple devices in a stack can be considered as one logical device. These switches can be managed using a single IP address, which greatly reduces system expansion and O&M costs

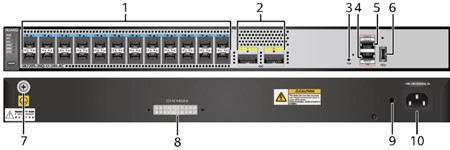

| 1, Twenty-four 10GE SFP+ ports | 2, Two 40GE QSFP+ ports |
| 3, One PNP button | 4, One ETH management port |
| 5, One console port | 6, One USB port |
| 7, Ground screw | 8, RPS socket |
| 9, Jack for AC power cable locking strap | 10, AC socket |
Huawei S6720S-26Q-LI-24S-AC Specifications
| Item | Description |
| Model | S6720S-26Q-LI-24S-AC |
| Part number | 98010685 |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 39.2 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | ±6 kV in differential mode, ± 6 kV in common mode |
| Weight (including package) | 4.2 kg (9.26 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE QSFP+ ports (a maximum of 2 physical ports) | |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) | 100.2 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 67.1 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 46.5 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.) |
Huawei S6720S-26Q-LI-24S-AC Features
l S6720-LI supports SNMPv1/v2/v3 and provides flexible methods for managing and maintaining devices, such as CLI and Web NMS. The NQA function helps users with network planning and upgrades. In addition, the S6720-LI supports NTP, SSH v2, HWTACACS, RMON, log hosts, and port-based traffic statistics.
l S6720-LI supports GVRP, which dynamically distributes, registers, and propagates VLAN attributes to reduce the manual configuration workloads of network administrators and ensure correct VLAN configuration.
l S6720-LI supports the Smart Ethernet Protection (SEP) protocol, a ring network protocol applied to the link layer of an Ethernet network. SEP can be used on open ring networks and provides millisecond level switchover to ensure nonstop services. SEP features simplicity, high reliability, fast switchover, easy maintenance, and flexible topology, facilitating network planning and management.
l S6720-LI supports G.8032, also called Ethernet Ring Protection Switching (ERPS). ERPS is based on traditional Ethernet MAC and bridging functions. It uses the mature Ethernet OAM and Ring Automatic Protection Switching (Ring APS or R-APS) technologies to implement millisecond-level protection switchover on Ethernet. ERPS supports multiple services and provides flexible networking, reducing the OPEX and CAPEX.
Huawei S6720S-26Q-LI-24S-AC Ordering Info
| Module | Product Description |
| S6720-16X-LI-16S-AC | S6720-16X-LI-16S-AC (16 10GE SFP+, AC power supply) |
| S6720S-16X-LI-16S-AC | S6720S-16X-LI-16S-AC (16 10GE SFP+, AC power supply) |
| S6720-26Q-LI-24S-AC | S6720-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, AC power supply) |
| S6720S-26Q-LI-24S-AC | S6720S-26Q-LI-24S-AC (24 10GE SFP+, 2 40GE QSFP+, AC power supply) |
| S6720-32X-LI-32S-AC | S6720-32X-LI-32S-AC (32 10GE SFP+, AC power supply) |
| S6720S-32X-LI-32S-AC | S6720S-32X-LI-32S-AC (32 10GE SFP+, AC power supply) |
Huawei S6720S-26Q-LI-24S-AC Networking and Applications
More Information
| Brand | Huawei |
|---|
