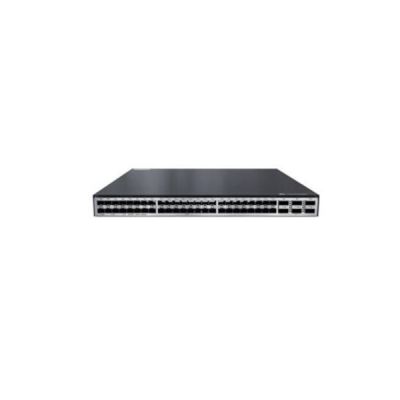

CloudEngine S6730-H48X6C
2018.65

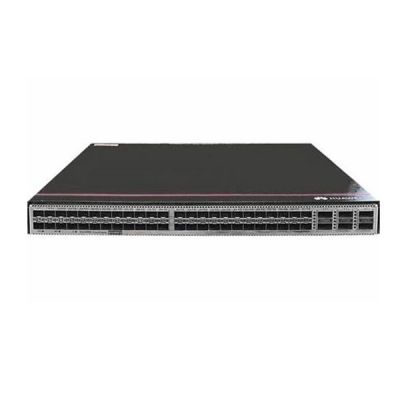

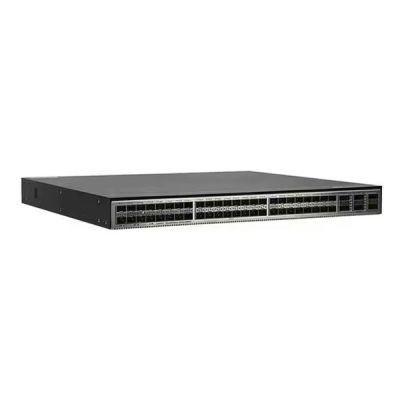

CloudEngine S6730-H48X6C

$2,018.65

Huawei's new generation IDN ready fixed switch with 48 x 10 Gig SFP+, 6 x 100 Gig QSFP28

- +
Availability:In stock
SKU Huawei CloudEngine S6730-H48X6C
Brand Huawei
Details

Huawei CloudEngine S6730-H48X6C is brand-new 10GE box switch with Forty-eight 10GE SFP+ ports and Six 40GE/100GE QSFP28 optical ports. The product has onboard AC capability and can manage a large numbe of Access points. At the same time, it has free mobility capabilities and provides a consistent user experience. Moreover, S6730-H48X6C offers VXLAN capabilities and supports network Virtualization function, built-in security probe, and supports abnormal traffic detection, threat analysis of encrypted traffic, network-wide threat trapping and other functions, Thanks to these outstanding functions, Huawei CloudEngine S6730-H48X6C can be widely used in enterprise campuses, operators, universities, governments and other application scenarios.

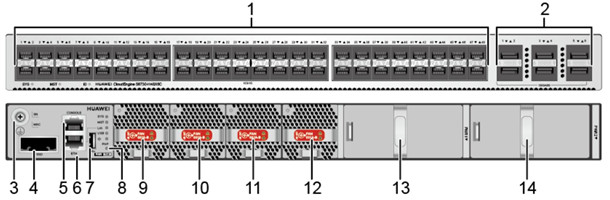

Huawei CloudEngine S6730-H48X6C

1 Forty-eight 10GE SFP+ ports 8 One PNP button
2 Six 40GE/100GE QSFP28 optical ports 9 Fan module slot 1
3 Ground screw 10 Fan module slot 2
4 SSD card slot 11 Fan module slot 3
5 One console port 12 Fan module slot 4
6 One ETH management port 13 Power module slot 1
7 One USB port 14 Power module slot 2

Huawei CloudEngine S6730-H48X6C Specifications

Item Description
Model CloudEngine S6730-H48X6C
Part Number 02352FSF, 02353FWL, 02352FSF-003, 02353FWL-003
Ports 48*10GE SFP+ ports 6*40GE/100GE QSFP28 optical ports
Memory (RAM) 4 GB
Flash 2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 56.87 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection N/A
Operating temperature
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Weight (with packaging) 9.2 kg (20.28 lb)
RTC Supported
RPS Not supported
PoE Not supported
Maximum power consumption (100% throughput, full speed of fans) 291 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 165 W
Noise under normal temperature (27°C, sound power) < 65 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Stack ports Any 10GE SFP+ ports (a maximum of 16 physical ports)
Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
Certification EMC certification
Safety certification
Manufacturing certification
Rated voltage range
AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)

Huawei CloudEngine S6730-H48X6C Features

l  It supports fully customizable traffic forwarding modes, forwarding behaviors, and lookup algorithms to achieve new service through microcode programming. Customers do not need to replace new hardware, fast and flexible, and can be launched in 6 months.

l  It supports the SVF super virtual switching network function. As parent switches, the original "small core/aggregation + access switch + AP" network architecture is virtualized as a single device for management to simplify network management.

l  It supports iStack stacking, which combines multiple switches that support stacking features together to logically form a virtual switch.

l  It supports VXLAN features, centralized gateway, distributed gateway deployment, and BGP-EVPN protocol to achieve dynamic VXLAN tunnel establishment, and can be configured through Netconf/YANG.

Huawei CloudEngine S6730-H48X6C Ordering Information

CloudEngine S6730-H48X6C CloudEngine S6730-H48X6C (48 10GE SFP+, 6 40GE QSFP28, optional license upgrade to 6 100GE QSFP28, no power supply)
CloudEngine S6730-H24X6C CloudEngine S6730-H24X6C (24 10GE SFP+, 6 40GE QSFP28, optional license upgrade to 6 100GE QSFP28, no power supply)
CloudEngine S6730-H48X6C CloudEngine S6730-H48X6C combined configuration (48 10GE SFP+, 6 100GE/40GE QSFP28, with license, without power supply)
CloudEngine S6730-H24X6C CloudEngine S6730-H24X6C combined configuration (24 10GE SFP+, 6 100GE/40GE QSFP28, with license, without power supply)
CloudEngine S6730-H24X4Y4C CloudEngine S6730-H24X4Y4C (24 10GE SFP+, 4 25GE SFP28, 4 100GE QSFP28, without power supply)
L-100GEUPG-S67H CloudEngine S6730-H series, upgrade from 40GE to 100GE RTU License, per device
L-VxLAN-S67 S67 series, VxLAN software license, per device
L-512AP-S67 S67 series, wireless access controller AP resource authorization-512AP
L-64AP-S67 S67 series, wireless access controller AP resource authorization-64AP
L-32AP-S67 S67 series, wireless access controller AP resource authorization-32AP
L-1AP-S67 S67 series, wireless access controller AP resource authorization-1AP
N1-S67H-M-Lic S67 series, basic software, per device
N1-S67H-M-SnS1Y S67 series, basic software software subscription and warranty annual fee, per device, 1 year
PAC-600S12-CB 600W AC power module (matching S6730-H48X6C/S6730-H24X6C series models)
PDC1000S12-DB 1000W DC power module (matching S6730-H48X6C/S6730-H24X6C series models)
PAC300S12-CL 300W AC power module (matching S6730-H24X4Y4C series)
PDC260S12-DL 260W DC power module (matching S6730-H24X4Y4C series models)

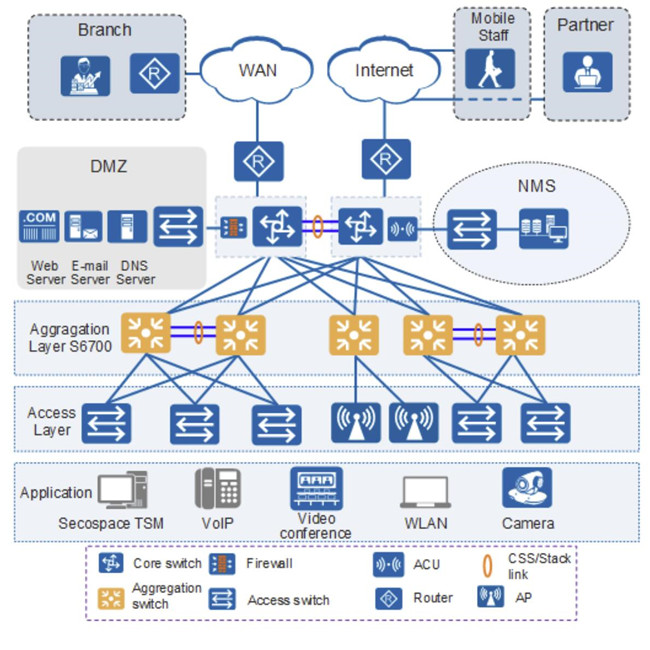

Huawei CloudEngine S6730-H48X6C Networking and Applications

Huawei CloudEngine S6730-H48X6C Networking and Applications
