CloudEngine S6730-H24X6C-K
2691.15

CloudEngine S6730-H24X6C-K

$2,691.15

next-generation enterprise-class core and aggregation switch with 24 x 10 GE SFP+, 6 x 40/100 GE QSFP28

- +
Availability:In stock
SKU Huawei CloudEngine S6730-H24X6C-K
Brand Huawei
Details

Huawei CloudEngine S6730-H24X6C-K is a next-generation enterprise-class core and aggregation switches. It offers high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M).
By integrating the native wireless access controller (WAC) capability, a single S6730-H switch can manage a vast number of wireless access points (APs). The results are simplified network architecture, fewer required devices, and lowered networking costs. Free mobility, another key differentiator of S6730-H, enables consistent user experience no matter the user location or IP address, fully meeting enterprises' demands for mobile offices.
Moreover, S6730-H switches have built-in security probes to enable abnormal traffic detection, analysis of threats even in encrypted traffic, and network-wide threat deception. With such robust security features, CloudEngine S6730-H switches transform traditional passive security defense into proactive security protection, fully ensuring campus network security.

S6730-H24X6C-K Huawei S6730-H Series 10 GE Switches 24 x 10 GE SFP+, 6 x 40/100 GE QSFP28 02353KHA low cost ycict

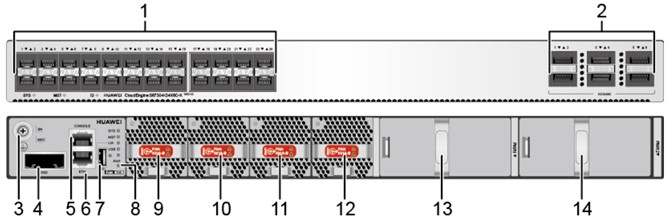

1. 24 10GE SFP Ethernet optical interfaces 2, 6 40GE/100GE QSFP28 Ethernet optical interfaces
3. Grounding screws 4, SSD card slots
5. 1 Console interface 6, 1 ETH management interface
7. 1 USB interface 8, 1 PNP button
9. Fan module slot 1 10, Fan module slot 2
11. Fan module slot 3 12, Fan module slot 4
13. Power module slot 1 14, Power module slot 2

Huawei CloudEngine S6730-H24X6C-K Specifications

Specifications  Parameters
Model CloudEngine S6730-H24X6C-K
Memory (RAM) 4GB
Flash Physical space is 2GB, and the actual available space can be checked using the display version command.
Mean Time Between Failures (MTBF) (years) 62.27
Availability Greater than 0.99999
Service lightning protection specifications NA
Power Source Lightning Protection Specifications Configure the AC power supply module: differential mode ±6kV, common mode ±6kVConfigure the DC power supply module: differential mode ±2kV, common mode ±4kV
External dimensions (Width × Depth × Height) Basic dimensions (depth excluding the distance from the protruding structural components of the front and rear panels): 442.0mm × 420.0mm × 43.6mmMaximum dimensions (depth from the protruding ports on the front panel to the maximum distance of the rear panel module handle): 442.0mm × 446.0mm × 43.6mm
Weight (including packaging materials) 8.9kg
Stacking Port Any 10GE SFP interface (supports up to 16 physical interfaces) Any 40GE/100GE QSFP28 interface (supports up to 6 physical interfaces)
RTC Support
RPS No support
PoE No support
Rated voltage range
Input: 100V AC to 240V AC; 50/60Hz High voltage DC input: 240V DC DC input: -48V DC to -60V DC
Maximum voltage range
Communication input: 90V AC to 290V AC; 45Hz to 65HzHigh voltage DC input: 190V DC to 290V DCDC input: -38.4V DC to -72V DC
Maximum power consumption (100% flow, fan at full speed) 254W
Typical power consumption (30% flow, tested according to ATIS standards) 149W
Operating temperature range
-5°C+45°C0m1800m Altitude
Storage temperature range -40°C+70°C
Normal temperature noise (27°C, sound power) less than 65dB(A)
Relative humidity range 5%RH95%RHNon-condensation
Working altitude 0m5000m
Product certification Support EMC certificationSupport safety certificationSupport production certification
Part NO 02353KHA
02353KHA-001
02353KHA-003
02353KHA-004

Huawei CloudEngine S6730-H24X6C-K Features

l  S6730-H series provides the integrated WLAN AC function that can manage 1K APs, reducing the costs of purchasing additional WLAN AC hardware. With this switch series, customers can stay ahead in the high-speed wireless era.

l  S6730-H series supports SVF and functions as a parent switch. With this virtualization technology, a physical network with the "Small-sized core and aggregation switches + Access switches + APs" structure can be virtualized into a "super switch", greatly simplifying network management.

l  S6730-H series uses the Packet Conservation Algorithm for Internet (iPCA) technology that alters the traditional method of using simulated traffic for fault location. iPCA technology can monitor network quality for any service flow anywhere, anytime, without extra costs. It can detect temporary service interruptions in a very short time and can identify faulty ports accurately. This cutting-edge fault detection technology turns "extensive management" to "granular management."

l  S6730-H supports Two-Way Active Measurement Protocol (TWAMP) to accurately check any IP link and obtain the entire network's IP performance. This protocol eliminates the need of using a dedicated probe or a proprietary protocol.

Huawei CloudEngine S6730-H24X6C-K Networking and Applications

S6730-H24X6C-K Huawei S6730-H Series 10 GE Switches 24 x 10 GE SFP+, 6 x 40/100 GE QSFP28 low cost ycict
