PAC-600WD-B
126.38
Details

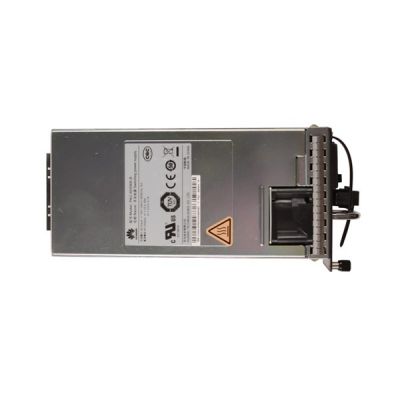

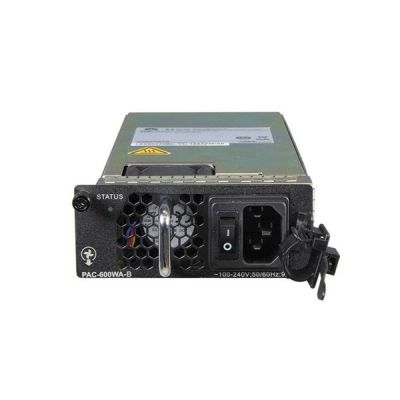

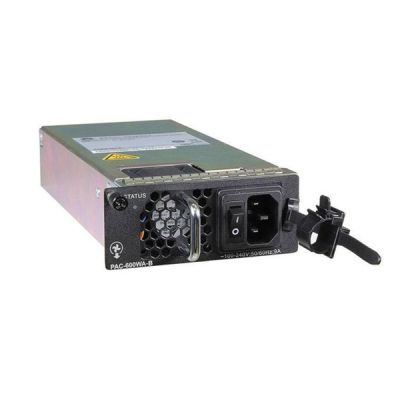

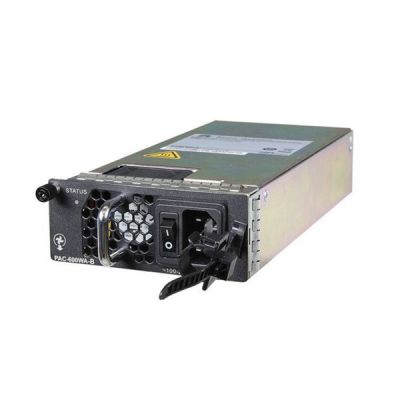

Huawei PAC-600WD-B is 600W AC Power Module applied for S6700 series Ethernet switches. They are next-generation 10G fixed switches. The S6700 can function as a core switch on a campus network. It has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports. Additionally, It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 40 Gbit/s even 100 Gbit/s traffic aggregation. Moreover, the S6700 provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure.

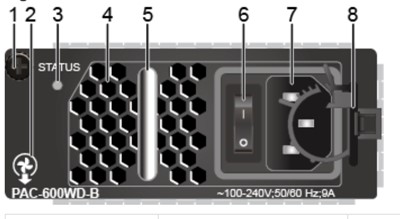

| 1. Captive screw | 2. Airflow flag (air out) | 3. Indicator | 4. Fan air vent |
| 5. Handle | 6. Power switch | 7. Power socket | 8. AC power cable locking strap |
Huawei PAC-600WD-B Specifications
| Item | Details |
| Description | 600 W AC Power Module |
| Part Number | 2131743 |
| Model | PAC-600WD-B |
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight without packaging [kg(lb)] | 1 kg (2.20 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 9:00 AM |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
