PAC600S12-CB
125.48
Details
Huawei PAC600S12-CB is 600W AC&240V DC Power Module. The product apples to S6730-H24X6C, S6730-H48X6C, S6730-S24X6Q, S6730S-S24X6Q-A, CE6863, CE6881 and CE6820 Series switch. It is configured with fan for cooling through a back-to-front airflow, power panel side exhaust.

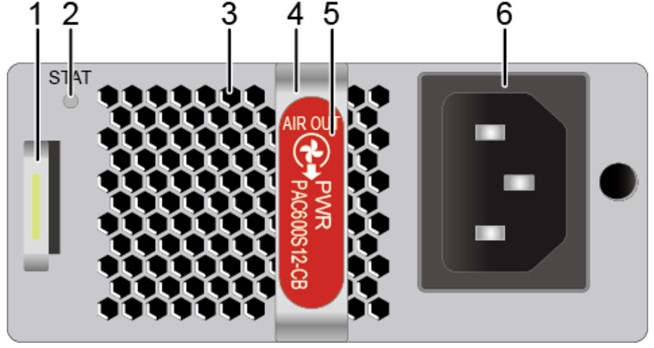

| 1. Lock | 2. Indicator | 3. Fan air vent |
| 4. Handle | 5. Airflow flag (air out) | 6. Power socket |
Huawei PAC600S12-CB Specifications
| Item | Details |
| Description | 600 W AC&240 V DC Power Module |
| Part Number | 02312FFU |
| Model | PAC600S12-CB |
| Weight without packaging [kg(lb)] | 0.95 kg (2.09 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz 240 V DC |
| Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz 190 V DC to 290 V DC |
| Maximum input current [A] | 100 V AC to 240 V AC: 8 A 240 V DC: 4 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
Huawei PAC600S12-CB and More Power Modules
PAC-60WA-L (60 W AC Power Module)
LS5M100PWA00/ES0W2PSA0150 (150 W AC Power Module)
LS5M100PWD00/ES0W2PSD0150 (150 W DC Power Module)
PAC-350WA-B (350 W AC Power Module)
W0PSA2500 (250 W AC PoE Power Module)
W0PSA5000/PAC-500WA-BE (500 W AC PoE Power Module)
W2PSA0580 (580 W AC PoE Power Module)
PDC-650WA-BE (650 W DC PoE Power Module)
PAC1000D5412 (1000 W AC PoE Power Module)
W2PSA1150 (1150 W AC PoE Power Module)
PAC60S12-AR (60 W AC&240 V DC Power Module)
PAC150S12-R (150 W AC Power Module)
W0PSA1701 (170 W AC Power Module)
ES5M0PSD1700 (170 W DC Power Module)
PDC180S12-CR (180 W DC Power Module)
PDC-350WA-B (350 W DC Power Module)
PAC-600WA-B (600 W AC Power Module)
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust))
PAC600S56-EB (600 W PoE AC&240 V DC Power Module (66mm Width Case, Back to Front, Power panel side exhaust))
PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module)
PAC1000S56-EB (1000 W PoE AC&240 V DC Power Module (66 mm Width Case, Back to Front, Power panel side exhaust))
PDC1000S56-CB (1000 W PoE DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)
PDC1000S56-EB (1000 W PoE DC Power Module (66 mm Width case, Back to Front, Power panel side exhaust))
