PAC1000D5412
218.35
Details
Huawei PAC1000D5412 is 1000W AC PoE Power Module applied for S6700 Series Switches. It is an industry-leading, high-performance fixed switches that provide line-speed 10GE access ports and 40GE uplink ports. The switch can be used for server access in data centers or core/aggregation switch in campus network.
S6720-EI provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or users. DoS attacks include SYN flood, Land, Smurf, and ICMP flood attacks. Attacks to networks refer to STP BPDU/root attacks. Attacks to users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoS attacks that change the CHADDR field in DHCP packets are also attacks against users.

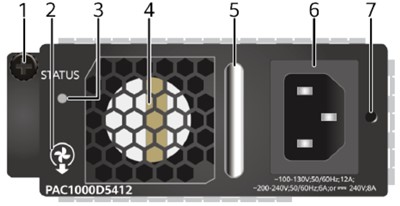

| 1. Captive screw | 2. Airflow flag (air out) | 3. Indicator | 4. Fan |
| 5. Handle | 6. AC power socket | 7. AC power cable locking strap | - |
Huawei PAC1000D5412 Specifications
| Item | Description |
| Part number | 02312EJK |
| Descriptions | 1000W AC PoE Power Module |
| Dimensions (H x W x D) | 42 mm x 99 mm x 204 mm (1.7 in. x 3.9 in. x 8.0 in.) |
| Weight | 1.1 kg (2.43 lb) |
| Rated input voltage range | 100 V AC to 130 V AC, 50/60 Hz |
| 200 V AC to 240 V AC, 50/60 Hz | |
| 240 V DC | |
| Maximum input voltage range | 90 V AC to 290 V AC, 47 Hz to 63 Hz |
| 190 V DC to 290 V DC | |
| Input current | 100 V AC to 130 V AC: 12 A |
| 200 V AC to 240 V AC: 6 A | |
| 240 V DC: 8 A | |
| Maximum output current |
12 V: 20.84 A
|
| 53.5 V: 14.58 A | |
| 56 V: 13.93 A | |
| Maximum output power |
100 V AC to 130 V AC input:
|
| PoE: 754.6 W | |
| Total: 900 W | |
|
200 V AC to 240 V AC input and 240 V DC input:
|
|
| PoE: 754.6 W | |
| Total: 1000 W | |
| Operating altitude | 100 V AC to 130 V AC: 0-3000 m |
| 200 V AC to 240 V AC: 0-5000 m | |
| 240 V DC: 0-5000 m | |
| PAC1000D5412 | S6720-32C-PWH-SI-AC, S6720-32C-PWH-SI, S6720-52X-PWH-SI, S6720-56C-PWH-SI-AC, S6720-56C-PWH-SI |
| PoE power supply | Provides a maximum of 754.6 W PoE power. |
| Input protection | Provides protection against input overvoltage and input undervoltage. |
| Output protection | Provides protection against output overvoltage, output overcurrent, and output short-circuit. |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold (80°C or 176°F), the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
| Hot swapping | Supported |
Huawei PAC1000D5412 and More Power Modules
ES0W2PSA0150 (150 W AC Power Module)
ES0W2PSD0150 (150 W DC Power Module)
LS6W2PSD0500 (500 W DC Power Module)
W0PSA5000 (500 W AC Power Module)
W2PSA0580 (580 W AC PoE Power Module)
PDC-650WA-BE (650 W DC PoE Power Module)
PAC1000D5412 (1000 W AC PoE Power Module)
W2PSA1150 (1150 W AC PoE Power Module)
W0PSA1701 (170 W AC Power Module)
ES5M0PSD1700 (170 W DC Power Module)
PDC260S12-DL (260 W DC Power Module)
PAC300S12-CL (300 W AC&240 V DC Power Module)
PDC-350WA-B (350 W DC Power Module)
PAC-600WA-B (600 W AC Power Module)
PAC-600WD-B (600 W AC Power Module)
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)
