PAC-600WA-B
120.28
Details

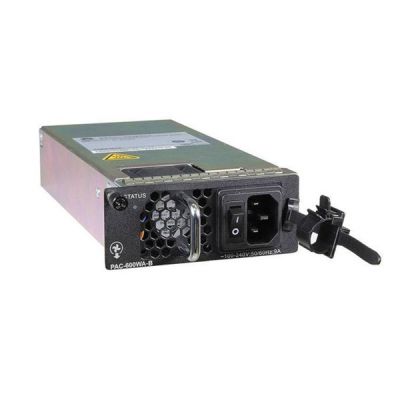

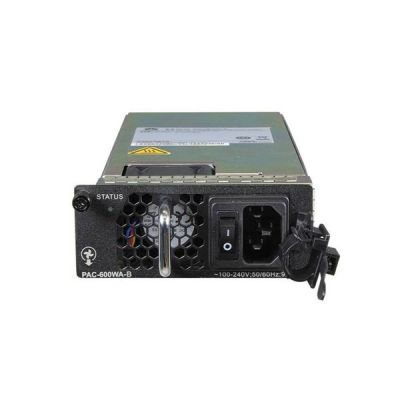

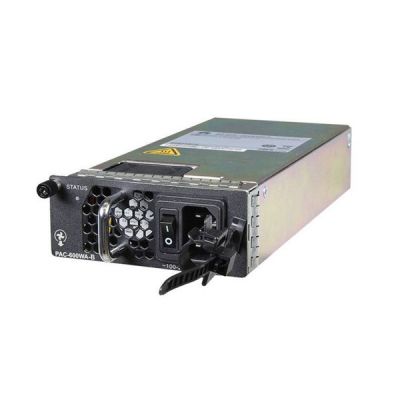

Huawei PAC-600WA-B is 600W AC Power Module applied for S6700 Series Switches. They provides 10GE downlink ports alongside 40GE uplink ports. The switches deliver high-speed, 10 Gbit/s access to high-density servers. They also functions as a core or aggregation switch on campus networks, providing a rate of 40 Gbit/s.
With Virtual Extensible Local Area Network (VXLAN)-based virtualization, comprehensive security policies, and a range of Quality of Service (QoS) features, S6730-S helps enterprises build scalable, reliable, and secure campus and data center networks.

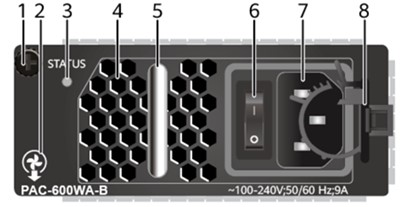

| 1. Captive screw | 2. Airflow flag (air out) | 3. Indicator | 4. Fan air vent |
| 5. Handle | 6. Power switch | 7. Power socket | 8. AC power cable locking strap |
Huawei PAC-600WA-B Specifications
| Item | Details |
| Description | 600 W AC Power Module |
| Part Number | 02310PMH |
| Model | PAC-600WA-B |
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight without packaging [kg(lb)] | 1 kg (2.20 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | 100 V AC to 240 V AC, 50/60 Hz |
| Input voltage range [V] | 90 V AC to 290 V AC, 45 Hz to 65 Hz |
| Maximum input current [A] | 9:00 AM |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 50 A |
| Rated output power [W] | 600 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
Huawei PAC-600WA-B and More Power Modules
ES0W2PSA0150 (150 W AC Power Module)
ES0W2PSD0150 (150 W DC Power Module)
LS6W2PSD0500 (500 W DC Power Module)
W0PSA5000 (500 W AC Power Module)
W2PSA0580 (580 W AC PoE Power Module)
PDC-650WA-BE (650 W DC PoE Power Module)
PAC1000D5412 (1000 W AC PoE Power Module)
W2PSA1150 (1150 W AC PoE Power Module)
W0PSA1701 (170 W AC Power Module)
ES5M0PSD1700 (170 W DC Power Module)
PDC260S12-DL (260 W DC Power Module)
PAC300S12-CL (300 W AC&240 V DC Power Module)
PDC-350WA-B (350 W DC Power Module)
PAC-600WA-B (600 W AC Power Module)
PAC-600WD-B (600 W AC Power Module)
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)
More Information
| Brand | Huawei |
|---|
