PDC260S12-DL
119.46
Details

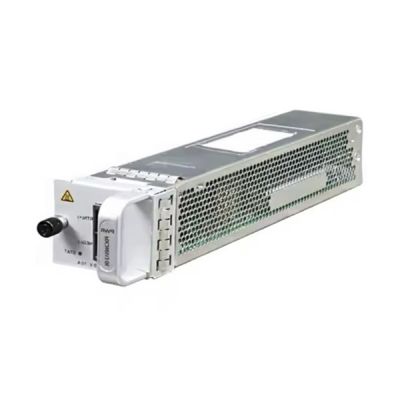

Huawei PDC260S12-DL is 260W DC Power Module, which applies for S6700 Series Switches. S6730-H Series 10GE Switches deliver 10 GE downlink and 100 GE uplink connectivity for enterprise campuses, carriers, higher education institutions, and governments, integrating native Wireless Local Area Network (WLAN) Access Controller (AC) capabilities, to support up to 1024 WLAN Access Points (APs).
The series enables the convergence of wired and wireless networks — greatly simplifying operations — offering free mobility to deliver a consistent user experience and Virtual Extensible Local Area Network (VXLAN)-based virtualization, creating a multi-purpose network. With built-in security probes, S6730-H supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception.

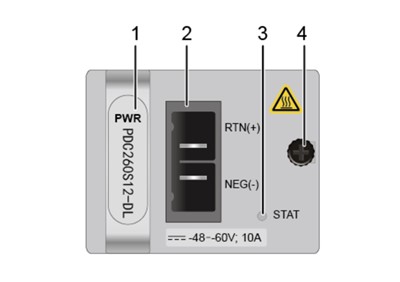

| 1, Handle | 2. DC power socket |
| 3. Indicator | 4. Captive screw |
Huawei PDC260S12-DL Specifications
| Item | Details |
| Description | 260 W DC Power Module |
| Part Number | 02312UMV |
| Model | PDC260S12-DL |
| Dimensions without packaging (H x W x D) [mm(in.)] | 40.2 mm x 47.2 mm x 202.6 mm (1.6 in. x 1.9 in. x 8.0 in.) |
| Weight without packaging [kg(lb)] | 0.5 kg (1.1 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | -48 V DC to -60 V DC |
| Input voltage range [V] | -38.4 V DC to -72 V DC |
| Maximum input current [A] | 10:00 AM |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 21.7 A |
| Rated output power [W] | 260 W |
| Power dissipation Mode | Natural heat dissipation without fans |
| Hot swapping | Supported |
Huawei PDC260S12-DL and More Power Modules
ES0W2PSA0150 (150 W AC Power Module)
ES0W2PSD0150 (150 W DC Power Module)
LS6W2PSD0500 (500 W DC Power Module)
W0PSA5000 (500 W AC Power Module)
W2PSA0580 (580 W AC PoE Power Module)
PDC-650WA-BE (650 W DC PoE Power Module)
PAC1000D5412 (1000 W AC PoE Power Module)
W2PSA1150 (1150 W AC PoE Power Module)
W0PSA1701 (170 W AC Power Module)
ES5M0PSD1700 (170 W DC Power Module)
PDC260S12-DL (260 W DC Power Module)
PAC300S12-CL (300 W AC&240 V DC Power Module)
PDC-350WA-B (350 W DC Power Module)
PAC-600WA-B (600 W AC Power Module)
PAC-600WD-B (600 W AC Power Module)
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)
