PDC1000S12-DB
236.58
Details

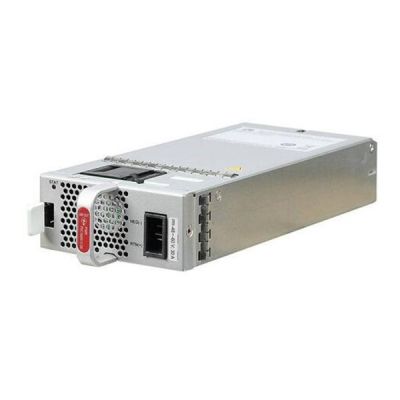

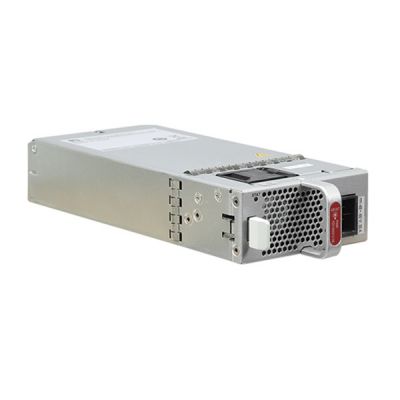

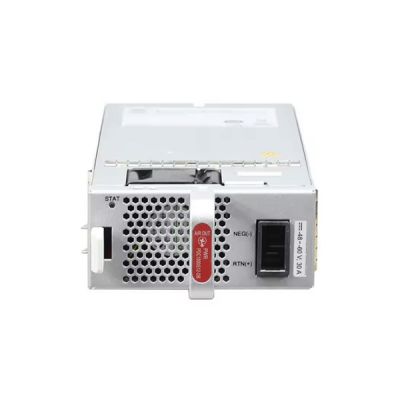

Huawei PDC1000S12-DB is 1000 W DC Power Module, which apples to S5700, S6700 Series Switches. S6730-H Series switches are next generation enterprise class core and aggregation switches, which offer high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). They build on an industry leading Versatile Routing Platform (VRP) and are purpose built with security, IoT, and cloud in mind. The switches offer 10GE, 25GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud managed networ k services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.

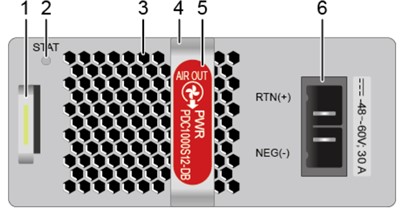

| 1. Lock | 2. Indicator | 3. Fan air vent |
| 4. Handle | 5. Airflow flag (air out) | 6. DC power socket |
Huawei PDC1000S12-DB Specifications
| Item | Details |
| Description | 1000 W DC Power Module |
| Part Number | 02312QJK |
| Model | PDC1000S12-DB |
| Dimensions without packaging (H x W x D) [mm(in.)] | 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.) |
| Weight without packaging [kg(lb)] | 1.02 kg (2.25 lb) |
| Number of inputs | 1 |
| Rated input voltage [V] | -48 V DC to -60 V DC |
| Input voltage range [V] | -38.4 V DC to -72 V DC |
| Maximum input current [A] | 30 A |
| Rated output voltage [V] | 12 V |
| Rated output current [A] | 83.3 A |
| Rated output power [W] | 1000 W |
| Power dissipation Mode | Heat dissipation with fan |
| Hot swapping | Supported |
Huawei PDC1000S12-DB and More Power Modules
PAC-60WA-L (60 W AC Power Module)
LS5M100PWA00/ES0W2PSA0150 (150 W AC Power Module)
LS5M100PWD00/ES0W2PSD0150 (150 W DC Power Module)
PAC-350WA-B (350 W AC Power Module)
W0PSA2500 (250 W AC PoE Power Module)
W0PSA5000/PAC-500WA-BE (500 W AC PoE Power Module)
W2PSA0580 (580 W AC PoE Power Module)
PDC-650WA-BE (650 W DC PoE Power Module)
PAC1000D5412 (1000 W AC PoE Power Module)
W2PSA1150 (1150 W AC PoE Power Module)
PAC60S12-AR (60 W AC&240 V DC Power Module)
PAC150S12-R (150 W AC Power Module)
W0PSA1701 (170 W AC Power Module)
ES5M0PSD1700 (170 W DC Power Module)
PDC180S12-CR (180 W DC Power Module)
PDC-350WA-B (350 W DC Power Module)
PAC-600WA-B (600 W AC Power Module)
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PAC600S56-CB (600 W PoE AC&240 V DC Power Module (Back to Front, Power panel side exhaust))
PAC600S56-EB (600 W PoE AC&240 V DC Power Module (66mm Width Case, Back to Front, Power panel side exhaust))
PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module)
PAC1000S56-EB (1000 W PoE AC&240 V DC Power Module (66 mm Width Case, Back to Front, Power panel side exhaust))
PDC1000S56-CB (1000 W PoE DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)
PDC1000S56-EB (1000 W PoE DC Power Module (66 mm Width case, Back to Front, Power panel side exhaust))
More Information
| Brand | Huawei |
|---|
