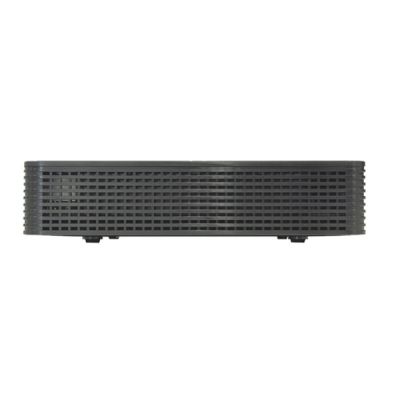

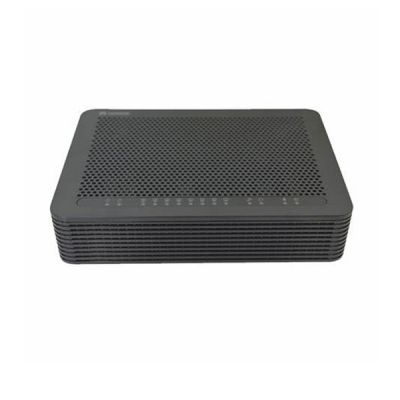

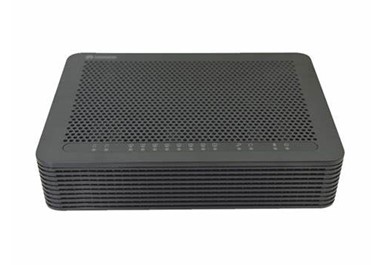

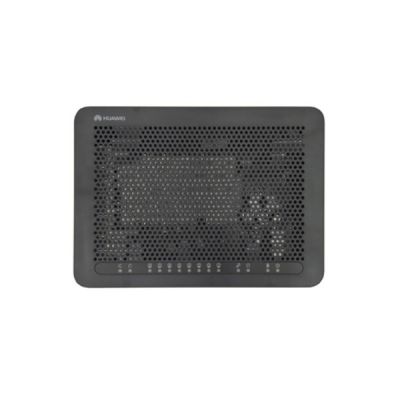

EchoLife EG8280P
1696.69
Details
EchoLife EG8280P is an Optical Network Terminal (ONT) used in Huawei's Agile POL Solution. By using GPON technology, ultra-broadband access is provided for enterprise campuses.
The model provides 8 GE ports that support PoE functions and 2 POTS ports. The high forwarding performance ensures the user experience of voice,internet and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
EchoLife EG8280P Specifications
| Specifications | EG8280P |
| User-side Ports | 8 x GE (PoE) + 2 x POTS |
| Network-side Ports | GPON |
| Dimensions (H x W x D) | 56 mm x 254 mm x 180 mm |
| Operating Temperature | -40°C to 55°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 90V to 264V AC, 50Hz/60Hz |
| System Power Supply | 56V DC, 2.5A |
| Indicators | POWER/PON/LOS/LAN/TEL |
| Maximum PoE Output Power | Gross power 120W (up to 30W for one GE port) |
| Surge protection specifications | GE port: common mode 4 kV; differential mode 0.5 kV. POTS port: common mode 4 kV; differential mode 0.5 kV. AC power supply: common mode 6 kV; differential mode 6 kV. |
EchoLife EG8280P Features
PON Port
• SC/UPC connector
• SFP optical module
• Transmission rate (unit: Gbit/s)
GPON: downstream 2.488 and upstream 1.244
XG-PON: downstream 9.953 and upstream 2.488
XGS-PON: downstream 9.953 and upstream 9.953
• Type B single-homing
• Type B dual-homing (supported in Layer 2 forwarding)
GE Electrical Port
• PoE and PoE+ IEEE 802.3af and IEEE 802.3at
• RJ-45 connector
• Port rate autonegotiation (10/100/1000 Mbit/s)
• Auto-MDI/MDIX
• Configuration of the number of MAC addresses learned
• Ethernet port-based VLAN transparent transmission and VLAN filtering
POTS Port
• RJ-11 connector
• Line code mode: PCM
• ITU-T Q.551, ITU-T Q.552
Automatic Service Provisioning
• Authentication exemption
• XML/OMCI/TR069
Smart O&M
• XML/Web UI management
• Y.1731
• Rogue ONT detection and self-regulation
• Ring network detection
• PPPoE/DHCP/ Call emulation testing
Layer 3 Features
• Default/Static/Policy/Service routes
• VLAN binding
• ALG/UPnP/ARP
• DDNS/DMZ/DNS/NAPT
• PPPoE/Static IP/DHCP/DHCP option66
• Port mapping/Port trigger
Layer 2 Management
• DHCP option82
• PITP
• BPDU transparent transmission
• LLDP/LLDP-MED
Multicast
• IGMP v2/v3 snooping
• Dynamic controllable multicast
• MLDv1/MLDv2 snooping
Voice
• SIP/H.248
• G.711A/μ, G.729 and G.722 coding/decoding
• T.38/G.711 fax mode
QoS
• Ethernet port rate limitation
• 802.1p priority
• SP/WRR/SP+WRR
Security
• Filtering based on MAC/IP/URL
• DoS/ARP anti-attacks
• Session number restriction
• Device access control
• 802.1x
More Information
| Brand | Huawei |
|---|
