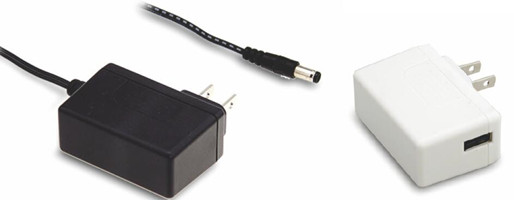

Meanwell SGA12U Series is a 12W ultra slim single-output green adaptor. The product is designed compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG), equipped with standard 2-Pin U.S. plug. At the same time, SGA12U accepts input range from 90VAC to 264VAC. It provides different models with output voltages ranging between 5VDC and 48VDC, so that it can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, Meanwell SGA12U is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). In addition, the supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. The entire series is also approved for international safety regulations. Moreover, the item adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. Considering its high safety, high reliability and high quality, Meanwell SGA12U Series serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA12U Series Encoding
| SGA | Series Name |
| 12 | Rated Wattage |
| U | US 2 pin AC Plug |
| 5 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| USB: USB (Type A) for 5V standard model only | |
| Other Options available by customer requested |
Meanwell SGA12U Series Model Specifications
| ORDER NO. | SGA12U05-□ □=P1J, USB | SGA12U07-P1J | SGA12U09-P1J | SGA12U12-P1J | SGA12U15-P1J | SGA12U18-P1J | SGA12U24-P1J | SGA12U48-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA12U05 | SGA12U07 | SGA12U09 | SGA12U12 | SGA12U15 | SGA12U18 | SGA12U24 | SGA12U48 |
| DC VOLTAGE | 5V | 7.5V | 9V | 12V | 15V | 18V | 24V | 48V | |
| RATED CURRENT | 2.4A | 1.6A | 1.33A | 1A | 0.8A | 0.66A | 0.5A | 0.25A | |
| CURRENT RANGE | 0-2.4A | 0-1.6A | 0-1.33A | 0-1A | 0-0.8A | 0-0.66A | 0-0.5A | 0-0.25A | |
| RATED POWER | 12W | 12W | 12W | 12W | 12W | 12W | 12W | 12W | |
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | |
| VOLTAGE TOLERANCE | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±5.0% | ±5.0% | ±3.0% | ±3.0% | ±3.0% | ±2.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 10ms/230VAC 1500ms, 50ms, 10ms/115VAC at full load | ||||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 80.00% | 83.00% | 82.50% | 83.00% | 83.00% | 83.50% | 84.00% | 86.00% | |
| AC CURRENT | 0.4A / 115VAC 0.2A / 230VAC | ||||||||
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | ||||||||
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | ||||||||
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power | 120 ~ 250% rated output power | ||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | ||||||||
| Protection type : Clamp by zener diode, output short | |||||||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 40℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, CSA C22.2 NO. 62368-1, EAC TP TC 004 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||||
| Conducted emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Radiated emission | FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) | Class B | |||||||
| Others | Life | 3 years : 100% load 40℃, 8hours / day | |||||||
| MTBF | 265Khrs min. MIL-HDBK-217F(25℃) | ||||||||
| DIMENSION | 62.2*27.4*45.5mm (L*W*H) | ||||||||
| PACKING | 109g ; 110pcs / 13kg / CARTON for cable connection ; 56.2g ; 90pcs / 7.5kg / CARTON for USB connection | ||||||||
Meanwell SGA12U Series Features
l Ultra slim
l Universal AC input/Full range
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption<0.075W
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Protections: Short circuit / Overload / Over voltage
l Fully enclosed plastic case
l Pass LPS
l 54V model available for PoE (optional)
l 3 years warranty
Meanwell SGA12U Series Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE

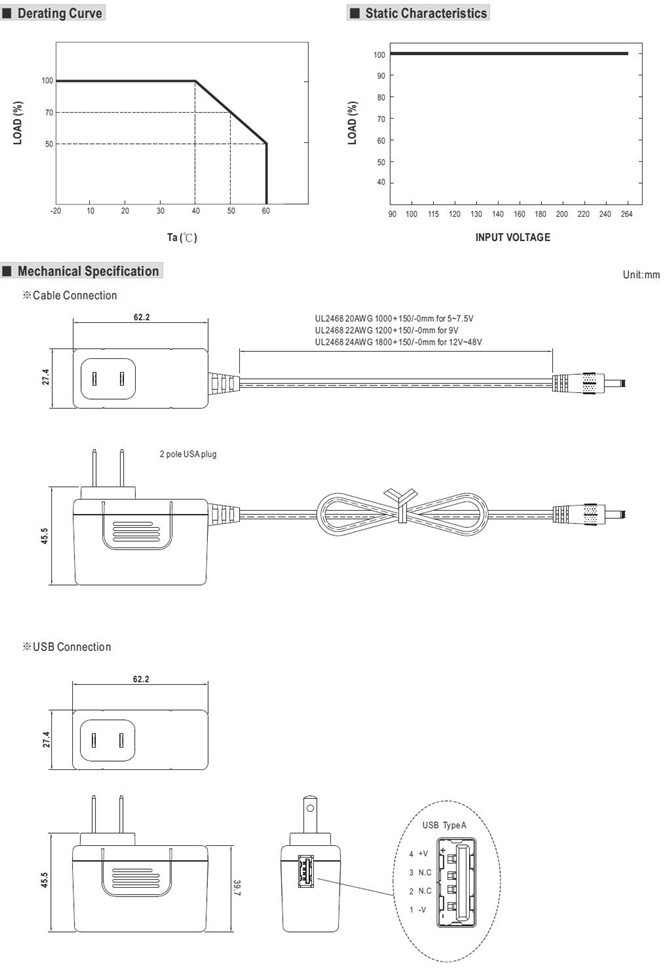

Meanwell SGA12U Series Mechanical Diagram
