GST36E
12.84

GST36E

As low as $12.84

Meanwell 36W AC-DC Reliable Green Industrial Adaptor

- +
Availability:In stock
SKU Meanwell GST36E
Brand Meanwell
Details

Meanwell GST36E Series is a 36W AC-DC Green Industrial Adaptor. The product features single-output, wall-mounted style and high reliability. It is a class II power unit (no FG), equipped with a 2- Pin standard European AC power plug. At the same time, GST36E adopts the input range from 85VAC to 264VAC, and supplies different models with output voltages ranging between 5VDC and 48VDC. Therefore, this could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 90% and extremely low no-load power consumption below 0.075W, Meanwell GST36E is compliant with EU Erp and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case, providing double insulation, which effectively prevents electrical shock. GST36E is certified for the international safety regulations as well. Considering its high safety, high quality and high performance, Meanwell GST36E Series serves as an ideal power supply solution for various types of consumer electronic devices.

Meanwell GST36E Price and Specs 36W AC-DC Industrial Adaptor GST36E05 GST36E09 GST36E12 GST36E24 GST36E48 LPS Pass YCICT

Meanwell GST36E Series Encoding

GST Series Name
36 Rated Wattage
E European 2 pin AC Plug
5 Output Voltage
P1J  Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GST36E Series Model Specifications

ORDER NO. GST36E05-P1J GST36E09-P1J GST36E12-P1J GST36E24-P1J GST36E48-P1J
OUTPUT SAFETY MODEL NO. GST36E05 GST36E09 GST36E12 GST36E24 GST36E48
DC VOLTAGE 5V 9V 12V 24V 48V
RATED CURRENT 4.3A 3.11A 3A 1.5A 0.75A
CURRENT RANGE 0-4.3A 0-3.11A 0-3A 0-1.5A 0-0.75A
RATED POWER 21.5W 28W 36W 36W 36W
RIPPLE & NOISE (max.) 90mVp-p 90mVp-p 100mVp-p 150mVp-p 200mVp-p
VOLTAGE TOLERANCE ±5.0% ±5.0% ±3.0% ±2.0% ±2.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±3.0% ±2.0% ±2.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 82.00% 86.00% 87.50% 88.50% 90.00%
AC CURRENT 0.8A / 115VAC 0.45A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 70A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission EN55032(CISPR32), EAC TP TC 020 Class B
Radiated emission EN55032(CISPR32), EAC TP TC 020 Class B
Harmonic current EN61000-3-2 Class A
Voltage flicker EN61000-3-3 -----
EMC IMMUNITY BS EN/EN55035
Parameter Standard Test Level
ESD EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility EN61000-4-3 Level 2, 3V/m
EFT bursts EN61000-4-4 Level 2, 1KV
Surge susceptibility EN61000-4-6 Level 3, 1KV/Line-Line
Conducted susceptibility EN61000-4-5 Level 2, 3V
Magnetic field immunity EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods,
95% interruptions 250 periods
Others Life 3838.3K hrs min. Telcordia SR-332 (Bellcore) ; 557.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 209g; 60pcs/13.5Kg/1.15CUFT

Meanwell GST36E Series Features

l  Global certificates

l  Universal AC input/Full range

l  2 pole EURO plug, Class II power unit

l  No load power consumption< 0.075W

l  Energy efficiency Level VI

l  Comply with EU ErP and CoC Version 5

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  Pass LPS

l  -30℃~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

Meanwell GST36E Price and Datasheet 36W AC-DC Industrial Adaptor GST36E05 GST36E09 GST36E12 GST36E24 GST36E48 YCICT

Meanwell GST36E Series Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

Meanwell GST36E Price and Specs 36W AC-DC Industrial Adaptor GST36E05 GST36E09 GST36E12 GST36E24 GST36E48 LPS YCICT

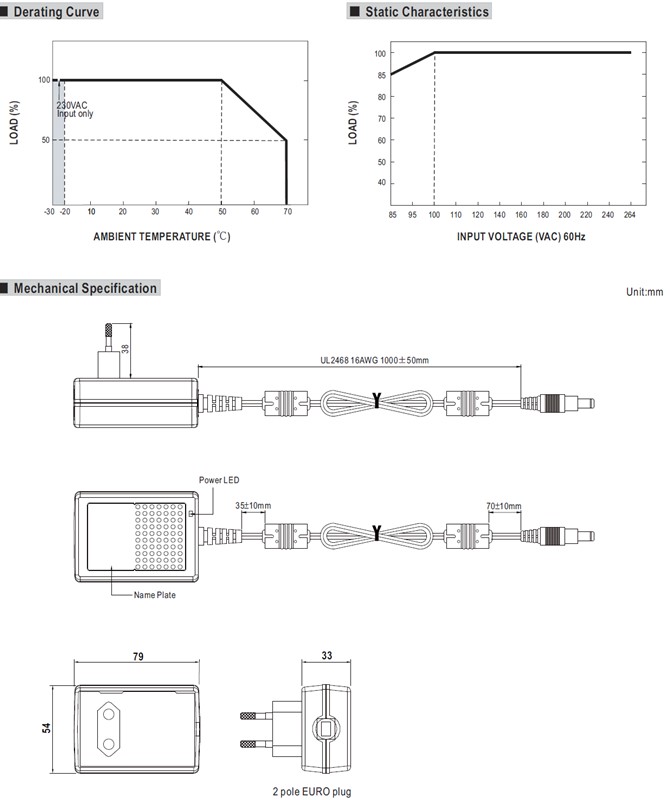

Meanwell GST36E Series Mechanical Diagram

Meanwell GST36E Price and Specs 36W AC-DC Industrial Adaptor GST36E05 GST36E09 GST36E12 GST36E24 GST36E48 YCICT
