SGA12U48-P1J
12.47

SGA12U48-P1J

$12.47

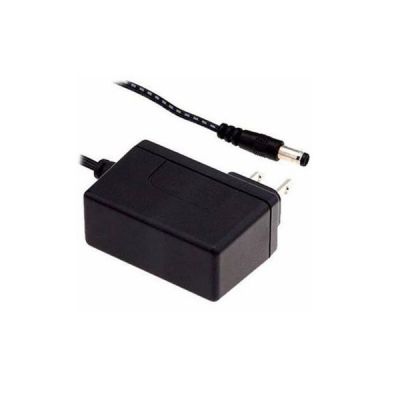

Meanwell 12W AC-DC High Reliability Slim Wall-mounted Adaptor with 48V0.25A0-0.25A12W100mVp-p±2.0%±1.0%±2.0%

- +
Availability:In stock
SKU Meanwell SGA12U48-P1J
Brand Meanwell
Details

Meanwell SGA12U48 is a 12W ultra slim single-output green adaptor with 48V0.25A0-0.25A12W100mVp-p. The product features compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG), equipped with standard 2-Pin U.S. plug. Meanwhile, SGA12U48 accepts input range from 90VAC to 264VAC with output voltage 48VDC. So that it can meet the demands for various types of consumer electronic devices. As the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, Meanwell SGA12U48 is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Apart from them, the model is approved for international safety regulations. It adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. In light of its high safety, high reliability and high quality, Meanwell SGA12U48 serves as a high performance power supply solution for various types of consumer electronic devices.

Meanwell SGA12U48 Price and Specs 12W AC-DC Slim Wall-mounted Adaptor SGA12U05 07 09 12 15 18 24 48 LPS 0.25A YCICT

Meanwell SGA12U48-P1J Encoding

SGA Series Name
12 Rated Wattage
U US 2 pin AC Plug
48 Output Voltage
P1J DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
USB: USB (Type A) for 5V standard model only
Other Options available by customer requested

Meanwell SGA12U48-P1J Specifications

ORDER NO. SGA12U48-P1J
OUTPUT SAFETY MODEL NO. SGA12U48
DC VOLTAGE 48V
RATED CURRENT 0.25A
CURRENT RANGE 0-0.25A
RATED POWER 12W
RIPPLE & NOISE (max.) 100mVp-p
VOLTAGE TOLERANCE ±2.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE, HOLD UP TIME 1500ms, 50ms, 10ms/230VAC 1500ms, 50ms, 10ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86.00%
AC CURRENT 0.4A / 115VAC 0.2A / 230VAC
INRUSH CURRENT (max.) Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 120 ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
Others Life 3 years : 100% load 40, 8hours / day
MTBF 265Khrs min. MIL-HDBK-217F(25)
DIMENSION 62.2*27.4*45.5mm (L*W*H)
PACKING 109g ; 110pcs / 13kg / CARTON for cable connection ; 56.2g ; 90pcs / 7.5kg / CARTON for USB connection

Meanwell SGA12U48-P1J Features

l  Ultra slim

l  Fully enclosed plastic case

l  Pass LPS

l  54V model available for PoE (optional)

l  3 years warranty

l  Universal AC input/Full range

l  2 pole USA plug, ClassⅡpower unit

l  No load power consumption<0.075W

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE

l  Protections: Short circuit / Overload / Over voltage

Meanwell SGA12U48 Price and Specs 12W AC-DC Slim Wall-mounted Adaptor SGA12U05 07 09 12 15 18 24 48 LPS 48V 0.25A YCICT

Meanwell SGA12U48-P1J Applications

l  Consumer electronic devices

l  Telecommunication devices

l  Office facilities

l  Industrial equipment

l  Power sourcing equipment of PoE

Meanwell SGA12U48 Price and Specs 12W AC-DC Slim Wall-mounted Adaptor SGA12U05 07 09 12 15 18 24 48 LPS Pass 48V YCICT

Meanwell SGA12U48-P1J Mechanical Diagram

Meanwell SGA12U48 Price and Datasheet 12W AC-DC Slim Wall-mounted Adaptor SGA12U05 07 09 12 15 18 24 48 LPS 48V YCICT
