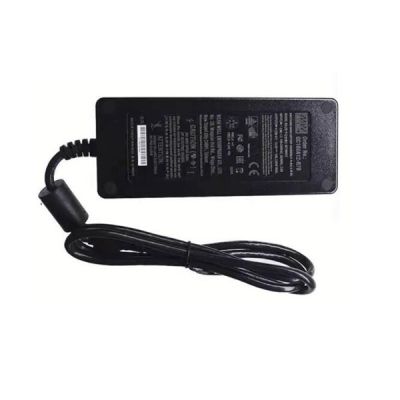

Meanwell GC160 Series Model Specifications
| ORDER NO. | OUTPUT CONNECTOR | SAFETY | ||
| GC160Axx-R7B (standard model) | 4pin power din | TUV / CB / FCC / CE/ UKCA / EAC | ||
| GC160Axx-AD1 (standard model) | Anderson connector | UL / TUV / CB / FCC / CE / UKCA / EAC | ||
| GC160Axx-□ xx=12,24,48 ; □=R7B,AD1 | ||||
| Model | GC160A12-□ | GC160A24-□ | GC160A48-□ | |
| OUTPUT | SAFETY MODEL NO | GC160A12 | GC160A24 | GC160A48 |
| DC VOLTAGE (Typ) | 13.6V | 27.2V | 54.4V | |
| RECOMMENDED BATTERY CAPACITY | 60-160Ah | 30-90Ah | 15-45Ah | |
| CONTINUOS OUTPUT CURRENT (Typ.) | 10A | 5.89A | 2.95A | |
| RATED POWER | 136W | 160.2W | 160.5W | |
| LED INDICATOR | Charging(CC) : RED Floating charging(CV) : GREEN | |||
| INPUT | VOLTAGE RANGE | 85~264VAC 120~370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 89.00% | 92.50% | 94.00% | |
| AC CURRENT (Typ.) | 1.85A/115VAC 1A/230VAC | |||
| INRUSH CURRENT (max.) | 120A/230VAC | |||
| LEAKAGE CURRENT(max.) | 0.75mA/240VAC | |||
| PROTECTION | OVERLOAD | 90~110% rated output power | ||
| Protection type : Constant current limiting recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 105 ~ 135% rated output voltage | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | 90℃±10℃(RTH2) detect on inside ambient temperature | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY&EMC | SAFETY STANDARDS | UL1012 (for GC160Axx-AD1 only), TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 class B, BS EN/EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CAN ICES-3(B)-NMB-(B), EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |||
| Others | MTBF | 2197.9K hrs min. Telcordia SR-332 (Bellcore) ; 274.1K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 175*72*35mm (L*W*H) | |||
| PACKING | 0.7Kg; 20pcs/15Kg/0.95CUFT(GC160Axx-R7B) 0.77Kg; 20pcs/16.4Kg/1.15CUFT(GC160Axx-AD1) | |||

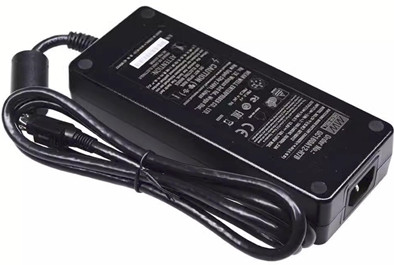

Meanwell GC160 Series Features
l Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
l 2 stage charging characteristic
l Universal AC input/Full range
l Built-in active PFC function, PF>0.94
l No load power consumption<1 W

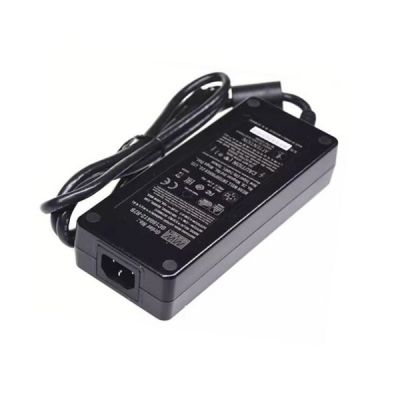

l 3 pole AC inlet IEC320-C14
l Class I power ( with earth pin)
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Fully enclosed plastic case
l 2 color LED indicator for charging status
l Approvals: UL/TUV/EAC/CB/FCC/CE/UKCA
l 2 years warranty

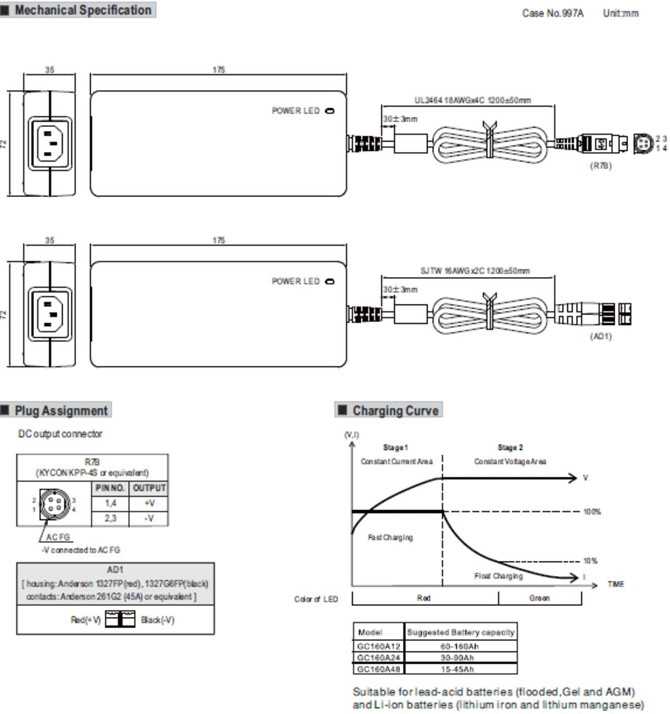

Meanwell GC160 Series Mechanical Diagram
