SGA12U15-P1J
12.26
Details

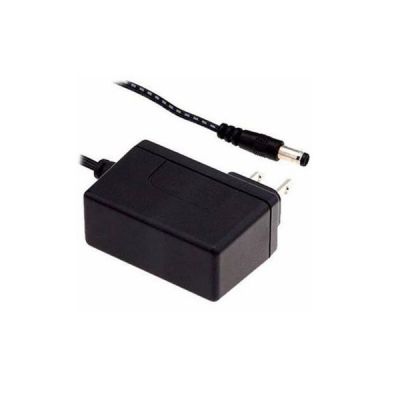

Meanwell SGA12U15 is a 12W ultra slim single-output green adaptor with 15V0.8A0-0.8A12W80mVp-p. The unit is designed compact, wall-mounted style and convenient for carry. It is a classⅡpower unit (no FG), equipped with standard 2-Pin U.S. plug. Meanwhile, SGA12U15 accepts input range from 90VAC to 264VAC with output voltage 15VDC. Therefore, it is able to satisfy the demands for various types of consumer electronic devices. As the efficiency reaches high up to 86% and extremely low no-load power consumption below 0.075W, Meanwell SGA12U15 is compliant with the latest U.S. energy regulation EISA 2007/DoE (Level VI). The supreme feature allows the adaptor to save energy when it is under either operating mode or standby mode. Additionally, the product is approved for international safety regulations. It adopts the 94V-0 flame retardant plastic case, which could effectively prevent users from electric hazards. As a result of its high safety, high reliability and high quality, Meanwell SGA12U15 serves as a high performance power supply solution for various types of consumer electronic devices.
Meanwell SGA12U15-P1J Encoding
| SGA | Series Name |
| 12 | Rated Wattage |
| U | US 2 pin AC Plug |
| 15 | Output Voltage |
| P1J DC plug type | Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type |
| USB: USB (Type A) for 5V standard model only | |
| Other Options available by customer requested |
Meanwell SGA12U15-P1J Specifications
| ORDER NO. | SGA12U15-P1J | |
| OUTPUT | SAFETY MODEL NO. | SGA12U15 |
| DC VOLTAGE | 15V | |
| RATED CURRENT | 0.8A | |
| CURRENT RANGE | 0-0.8A | |
| RATED POWER | 12W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOLERANCE | ±3.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±3.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 10ms/230VAC 1500ms, 50ms, 10ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT | 0.4A / 115VAC 0.2A / 230VAC | |
| INRUSH CURRENT (max.) | Cold start 30A / 115VAC 60A / 230VAC | |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 200% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 110 ~ 140% rated output voltage | |
| Protection type : Clamp by zener diode, output short | ||
| Others | Life | 3 years : 100% load 40℃, 8hours / day |
| MTBF | 265Khrs min. MIL-HDBK-217F(25℃) | |
| DIMENSION | 62.2*27.4*45.5mm (L*W*H) | |
| PACKING | 109g ; 110pcs / 13kg / CARTON for cable connection ; 56.2g ; 90pcs / 7.5kg / CARTON for USB connection | |
Meanwell SGA12U15-P1J Features
l Ultra slim
l Pass LPS
l 3 years warranty
l Energy efficiency Level VI
l Comply with EISA 2007/DoE
l Fully enclosed plastic case
l Universal AC input/Full range
l 2 pole USA plug, ClassⅡpower unit
l No load power consumption<0.075W
l 54V model available for PoE (optional)
l Protections: Short circuit / Overload / Over voltage
Meanwell SGA12U15-P1J Applications
l Consumer electronic devices
l Telecommunication devices
l Office facilities
l Industrial equipment
l Power sourcing equipment of PoE
Meanwell SGA12U15-P1J Mechanical Diagram
