S6720-52X-PWH-SI-ACF
3299.18
Details
Huawei S6720-52X-PWH-SI-ACF is a next-generation multi-gigabit 10GE fixed switch. It can provide high-speed wireless device access and 10GE data center server access and also function as an access/aggregation switch on a campus network.
In addition, S6720-SI implements complex traffic classification based on packet information such as the 5-tuple, IP precedence, ToS, DSCP, IP protocol type, ICMP type, TCP source port, VLAN ID, Ethernet protocol type, and CoS. ACLs can be applied to the inbound or outbound direction to filter packets. The S6720-SI supports the flow-based two-rate and three-color CAR. Each port supports eight priority queues and multiple queue scheduling algorithms such as WRR, DRR, PQ, WRR+PQ, and DRR+PQ, which ensures the quality of network services such as voice, video and data services. The switch is ideal for high-speed wireless device access, 10GE data center server access, and campus network access/aggregation.

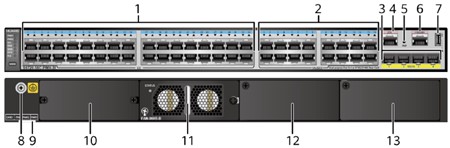

| 1, Forty-eight PoE++ 100M/1000M/2.5GE/5GE/10GE BASE-T ports (MultiGE port) | 2, Four 10GE SFP+ ports |
| 3, One ETH management port | 4, One PNP button |
| 5, One console port | 6, One USB port |
| 7, Ground screw | 8, ESN label |
| 9, Fan slot | 10, Power module slot 2 |
| 11, Power module slot 1 |
Huawei S6720-52X-PWH-SI-ACF Specifications
| Item | Description |
| Memory (RAM) | 1 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 35.1 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±7 kV |
| Power supply surge protection | Using 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
| Weight (with packaging) | 7 kg (15.43 lb) |
| Stack ports | Any MultiGE or 10GE SFP+ ports (a maximum of 16 physical ports) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | Using 650 W DC power modules |
| Not providing the PoE function: 207.4 W | |
| 100% PoE loads: 940 W (system power consumption: 200.8 W, PoE: 739.2 W) | |
| Using 1150 W AC or 1000 W AC power modules | |
| Not providing the PoE function: 236.8 W | |
| 100% PoE loads: 1724.4 W (system power consumption: 284.4 W, PoE: 1440 W) | |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 159.5 W (without PoE) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 66.4 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.) | |
| When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 541.1 mm (21.3 in.). |
Huawei S6720-52X-PWH-SI-ACF Features
l S6720-SI supports MSTP multi-process that enhances the existing STP, RSTP, and MSTP implementation. This function increases the number of MSTIs supported on a network. It also supports enhanced Ethernet reliability technologies such as Smart Link and RRPP, which implement millisecond-level link protection switchover and ensure network reliability. Smart Link and RRPP both support multi-instance to implement load balancing among links, further improving bandwidth use efficiency.
l S6720-SI supports G.8032, also called Ethernet Ring Protection Switching (ERPS). ERPS is based on traditional Ethernet MAC and bridging functions. It uses the mature Ethernet OAM and Ring Automatic Protection Switching (Ring APS or R-APS) technologies to implement millisecond-level protection switching on Ethernet. ERPS supports multiple services and provides flexible networking options, reducing the OPEX and CAPEX.
l S6720-SI supports centralized MAC address authentication and 802.1X authentication. It authenticates users based on statically or dynamically bound user information such as the user name, IP address, MAC address, VLAN ID, port number, and flag indicating whether antivirus software is installed. VLANs, QoS policies, and ACLs can be delivered to users dynamically.
Huawei S6720-52X-PWH-SI-ACF Ordering Info
| Item | Product Description |
| 1 | S6720-26Q-SI-24S bundle (24 x 10GE SFP+, 2 x 40GE QSFP+, with 1 150W AC power supply) |
| 2 | S6720S-26Q-SI-24S bundle (24 x 10GE SFP+, 2 x 40GE QSFP+, with 1 150W AC power supply) |
| 3 | S6720-32X-SI-32S bundle (32 x 10GE SFP+, with 1 150W AC power supply) |
| 4 | S6720-32C-SI-AC bundle (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, with 1 interface slot, with 1 150W AC power supply) |
| 5 | S6720-32C-SI-DC bundle (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, with 1 interface slot, with 1 150W DC power supply) |
| 6 | S6720-32C-PWH-SI (24 x multi-gigabit Base-T Ethernet ports, 4 x 10GE SFP+, PoE++, with 1 interface slot, without power supply) |
| 7 | 2-port 40GE QSFP+ interface card |
| 8 | 4-port 10GE SFP+ interface card |
| 9 | 150W AC Power Module |
| 10 | 150W DC Power Module |
| 11 | 580W AC PoE Power Module |
| 12 | 650W DC PoE Power Module |
| 13 | 1000W AC PoE Power Module |
| 14 | 1150W AC PoE Power Module |
Huawei S6720-52X-PWH-SI-ACF Networking and Applications
