S9706
11076.69
Details

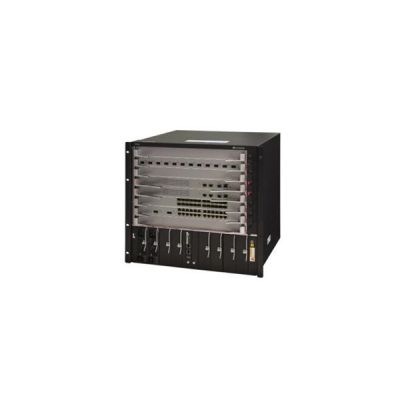

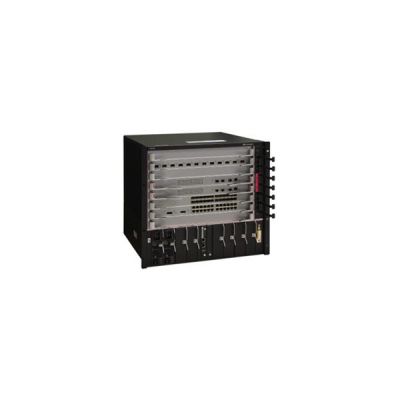

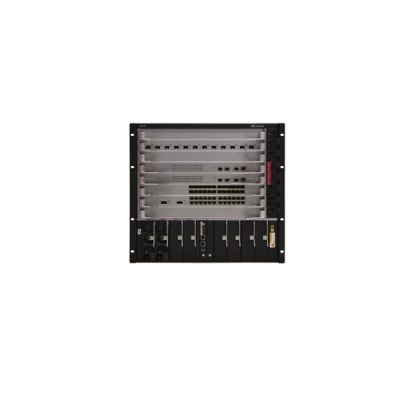

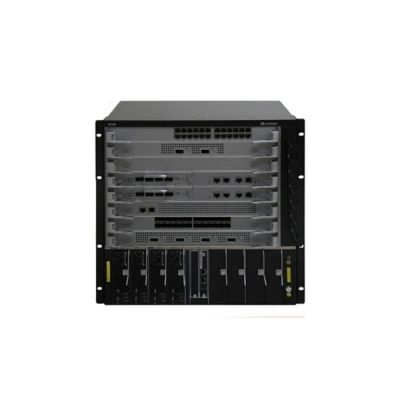

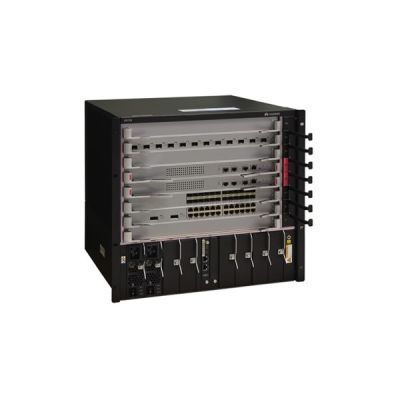

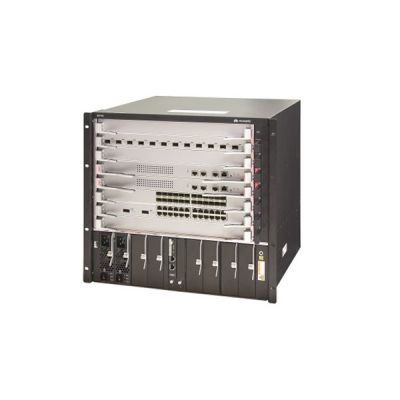

Huawei S9706 Core Routing Switch is a high-end switch designed for next generation campus networks and data centers to provide service aggregation. It supports two Switching and Routing Units (SRUs), six LPUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode. S9700 uses an advanced multilayer switching architecture to support sustained bandwidth upgrading and to provide 40GE and 100GE access capabilities. Based on Huawei Versatile Routing Platform (VRP), they provide high L2/L3 switching capabilities and integrate diversified services such as MPLS VPN, hardware IPV6, desktop cloud, video conferencing, wireless access.
Moreover, S9700 supports Netstream and V5/V8/V9 packet formats. The Netstream feature supports aggregation traffic template, real-time traffic collection, dynamic report generation and traffic attribute analysis, and traffic exception report. The S9700 sends traffic statistics logs to master and backup servers to avoid data loss. The S9700 can realize real-time network monitoring and the traffic analysis of the entire network. It also provides applications and analysis including fault pre-detection, effective fault rectification, fast problem handling, and security monitoring, to help customers optimize network structure and adjust service deployment.

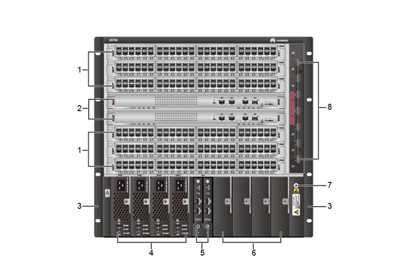

| 1, Six of the following service cards | 2, Two MPUs |
| 3, A pair of mounting brackets | 4, Four power modules |
| 5, Two EH1D200CMU00-Centralized Monitoring Unit | 6, Reserved slot |
| 7, Front ESD jack | 8, Cable management frames |

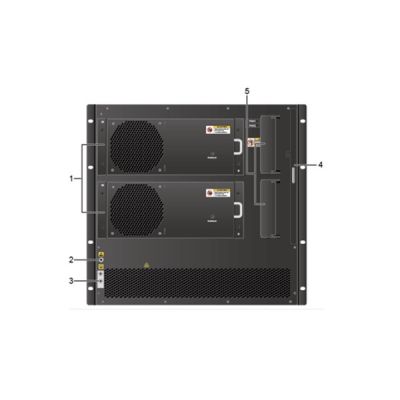

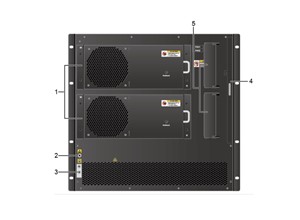

| 1, Two Fan Module | 2, Rear ESD jack |
| 3, JG ground terminal | 4, Air filter |
| 5, A pair of removable handles |
Huawei S9706 Core Routing Switch Specifications
| Item | Description |
| Part number |
S9706 chassis: 02113548
S9706 chassis, FCC certified: 02113612 |
| Description | Supports two Switching and Routing Units (SRUs), six LPUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode. |
| LPU slots | 6 |
| MCU slots | 2 |
| Fan slots | 2 |
| Power slots | 4 |
| Maximum port density | V200R001C00: 288xFE, 288xGE, 240x10GE |
| V200R002C00 and V200R003C00: 288xFE, 288xGE, 240x10GE, 48x40GE | |
| V200R005C00 to V200R007C10: 288xFE, 288xGE, 288x10GE, 48x40GE | |
| V200R008C00 to V200R009C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 12x100GE | |
| V200R010C00 to V200R013C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE | |
| Installation | In an N66E or N68E cabinet, one or two chassis in a cabinet |
| CSS | Service port or CSS card clustering |
| Maximum power consumption (fully loaded) | 2640 W |
| Power specifications | DC input voltage |
| Rated voltage: -48 V DC/-60 V DC | |
| Maximum voltage range: -40 V DC to -72 V DC | |
| AC input voltage | |
| Rated voltage: 110 V AC/220 V AC, 50/60 Hz | |
| Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) | |
| HVDC input voltage (3000 W AC) | |
| Rated voltage: 240 V DC | |
| Maximum voltage range: 190 V DC to 290 V DC | |
| Dimensions (W x D x H, excluding rack-mounting brackets) | With cable management frames: 442 mm x 585 mm x 441.7 mm (17.4 in. x 23.0 in. x 17.39 in. (10 U)) |
| Without cable management frames: 442 mm x 489 mm x 441.7 mm (17.4 in. x 19.3 in. x 17.39 in. (10 U)) | |
| Weight (empty/fully loaded) | 29 kg/75.8 kg (63.9 lb/167.1 lb) |
| Reliability and availability | Mean time between failures (MTBF): 24.2 years |
| Mean time to repair (MTTR): 52 minutes | |
| Availability: 0.9999959 | |
| Environment specifications | Operating temperature and altitude: |
| -60 m to +1800 m (197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) | |
| 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). | |
| 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) | |
| Operating relative humidity: 5% RH to 95% RH (noncondensing) | |
| Storage temperature: -40°C to +70°C (-40°F to +158°F) | |
| Storage altitude: < 5000 m (16404 ft.) | |
| Storage relative humidity: 5% RH to 95% RH (noncondensing) | |
| Noise at normal temperature (acoustic power) | ≤ 72 dB(A) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S9706 Core Routing Switch Features
l S9700 supports the 100G Ethernet standard to meet future requirements from bandwidth-intensive applications (such as multimedia conferencing and data access), eliminating the trouble of frequent upgrading.
l S9700 supports hardware-based Ethernet OAM, including comprehensive EEE802.3ah, 802.1ag, and ITU-Y. 1731 implementations. Hardware-based Ethernet OAM can collect accurate network parameters, such as transmission latency and jitter, to help customers monitor network operating status in real time and to realize quick detection, location, and switching when a network fault occurs.
l S9700 has an integrated built-in firewall card and supports virtual firewalls and NAT multi-instance, allowing multiple VPN customers to share the same firewall. The application-layer packet filtering technology detects and filters application layer packets according to rules.
l S9700 provides comprehensive NAC solutions for enterprise networks. It supports MAC address authentication, portal authentication, 802.1x authentication, and DHCP snooping-triggered authentication. These authentication methods ensure security of various access modes such as dumb terminal access, mobile access, and centralized IP address allocation.
Huawei S9706 Core Routing Switch Ordering Info
| LE0B3N66EDC | DC cabinet (600 mm x 600 mm x 2200 mm) | |
| LE0B3N66EAC | AC cabinet (600 mm x 600 mm x 2200 mm) | |
| EH1BS9703E00 | S9703 assembly chassis | |
| EH1BS9706E00 | S9706 assembly chassis | |
| EH1BS9712E00 | S9712 assembly chassis | |
| EH1BS9703E01 | S9703 Assembly Chassis-sustain FCC | |
| EH1BS9706E01 | S9706 Assembly Chassis-sustain FCC | |
| EH1BS9712E01 | S9712 Assembly Chassis-sustain FCC | |
| EH1M00FBX000 | Fan tray | |
| LE0MACPJBX01 | APD32-2-4 distribution•box | |
| EH1D200CMU0 | Centralized monitoring unit | |
| EH1D2MCUAC00 | S9703 MCUA | |
| EH1D2SRUDC00 | S9706/S9712 MPUD-clock | |
| EH1D2F48TEA0 | 48-port 100M Ethernet electrical interface card (EA, RJ45) | |
| EH1D2F48TFA0 | 48-port 100M Ethernet electrical interface card (FA, RJ45) | |
| EH1D2F48TEC0 | 48-port 100M Ethernet electrical interface card (EC, RJ45) | |
| EH1D2F48SEA0 | 48-port 100M Ethernet optical interface card (EA, SFP) | |
| EH1D2F48SEC0 | 48-port 100M Ethernet optical interface card (EC, SFP) | |
| EH1D2T24XEA0 | 24-port 100M/1000M Ethernet electrical interface and 2-port 10GE Ethernet optical interface card (EA, RJ45/XFP) | |
| EH1D2G24TFA0 | 24-port 100M/1000M Ethernet electrical interface card (FA, RJ45) | |
| EH1D2G48TEA0 | 48-port 100M/1000M Ethernet electrical interface card (EA, RJ45) | |
| EH1D2G48TFA0 | 48-port 100M/1000M Ethernet electrical interface card (FA, RJ45) | |
| EH1D2G48TBC0 | 48-port 100M/1000M Ethernet electrical interface card (BC, RJ45) | |
| EH1D2G48TEC0 | 48-port 100M/1000M Ethernet electrical interface card (EC, RJ45) | |
| EH1D2G48TED0 | 48-port 100M/1000M Ethernet electrical interface card (ED, RJ45 | |
| EH1D2G24SSA0 | 24-port 100M/1000M Ethernet optical interface card (SA, SFP) | |
| EH1D2G24SEC0 | 24-port 100M/1000M Ethernet optical interface card (EC, SFP) | |
| EH1D2G24SED0 | 24-port 100M/1000M Ethernet optical interface card (ED, SFP) | |
| EH1D2S24CSA0 | 24-port 100M/1000M Ethernet optical interface and 8-port 100M/1000M combo electrical interface card (SA, SFP/RJ45) | |
| EH1D2S24CEA0 | 24-port 100M/1000M Ethernet optical interface and 8-port 100M/1000M combo electrical interface card (EA, SFP/RJ45) | |
| EH1D2S24XEA0 | 24-port 100M/1000M Ethernet optical interface and 2-port 10GE Ethernet optical interface card (EA, SFP/XFP) | |
| EH1D2S24XEC0 | 24-port 100M/1000M Ethernet optical interface and 2-port 10G Ethernet optical interface card (EC, SFP/XFP) | |
| EH1D2G48SEA0 | 48-port 100M/1000M Ethernet optical interface card (EA, SFP) | |
| EH1D2G48SFA0 | 48-port 100M/1000M Ethernet optical interface card (FA, SFP) | |
| EH1D2G48SBC0 | 48-port 100M/1000M Ethernet optical interface card (BC, SFP) | |
| EH1D2G48SEC0 | 48-port 100M/1000M Ethernet optical interface card (EC, SFP) | |
| EH1D2G48SED0 | 48-port 100M/1000M Ethernet optical interface card (ED, SFP) | |
| EH1D2T36SEA0 | 36-port 100 M/1000 M Ethernet electrical interface and 12-port 100M/1000M optical interface card (EA, RJ45/SFP) | |
| EH1D2X02XEA0 | 2-port 10GE optical interface card (EA, XFP) | |
| EH1D2X02XEC0 | 2-port 10GE optical interface card (EC, XFP) | |
| EH1D2X04XEA0 | 4-port 10GE optical interface card (EA, XFP) | |
| EH1D2X04XEC0 | 4-port 10GE optical interface card (EC, XFP) | |
| EH1D2X04XED0 | 4-port 10GE optical interface card (ED, XFP) | |
| EH1D2X12SSA0 | 12-port 10GE optical interface card (SA, SFP+) | |
| EH1D2X16SFC0 | 16-port 10GE optical interface card (FC, SFP+) | |
| EH1D2X40SFC0 | 40-port 10GE optical interface card (FC, SFP+) | |
|
8-port 40GE optical interface card (FC, QSFP+) | |
| LE0D0VAMPA00 | Value-added service card | |
| S-SFP-FE-LH40-SM1310 | Optical module -eSFP-FE- single-mode modules (1310 nm, 40 km, LC) | |
| S-SFP-FE-LH80-SM1550 | Optical module -eSFP-FE- single-mode modules (1550 nm, 80 km, LC) | |
| SFP-1000BaseT | Electrical module-SFP-GE- electrical interface modules (100 m, RJ45) | |
| eSFP-GE-SX-MM850 | Optical module -eSFP-GE- multimode modules (850 nm, 0.5 km, LC) | |
| SFP-GE-LX-SM1310 | Optical module -SFP-GE- single-mode modules (1310 nm, 10 km, LC) | |
| S-SFP-GE-LH40-SM1310 | Optical module -eSFP-GE- single-mode modules (1310 nm, 40 km, LC) | |
| S-SFP-GE-LH40-SM1550 | Optical module -eSFP-GE- single-mode modules (1550 nm, 40 km, LC) | |
| S-SFP-GE-LH80-SM1550 | Optical module -eSFP-GE- single-mode modules (1550 nm, 80 km, LC) | |
| eSFP-GE-ZX100-SM1550 | Optical module -ESFP-GE- single-mode modules (1550 nm, 100 km, LC) | |
| XFP-SX-MM850 | Optical module -XFP-10G- multimode modules (850 nm, 0.3 km, LC) | |
| XFP-STM64-LX-SM1310 | Optical module -XFP-10G- single-mode modules (1310 nm, 10 km, LC) | |
| XFP-STM64-LH40-SM1550 | Optical module -XFP-10G- single-mode modules (1550 nm, 40 km, LC) | |
| XFP-STM64-SM1550- | Optical module -XFP-10G- single-mode modules (1550 nm, 80 km, LC) | |
| OMXD30000 | Optical module, SFP+, 10G, multi-mode module (850 nm, 0.3 km, LC) | |
| OSX010000 | Optical module, SFP+, 10G, dingle-mode module (1310nm, 10 km, LC) | |
| OSX040N01 | Optical module, SFP+, 10G, dingle-mode module (1550 nm, 40 km, LC) | |
| OSXD22N00 | Optical module, SFP+, 10 G, dingle-mode module (1310 nm, 0.22 km,LC, LRM) | |
| SFP-FE-LX-SM1310-BIDI | Optical module -eSFP-FE-BIDI single-mode modules (TX1310/ RX1550, 15 km, LC) | |
| SFP-FE-LX-SM1550-BIDI | Optical module -eSFP-FE-BIDI single-mode modules (TX1550/ RX1310, 15 km, LC) | |
| SFP-GE-LX-SM1310-BIDI | 5149 module -eSFP-GE-BIDI single-mode modules (TX1310/ RX1490, 10 km, LC) | |
| SFP-GE-LX-SM1490-BIDI | Optical module -eSFP-GE-BIDI single-mode modules (TX1490/ RX1310, 10 km, LC) | |
| W2PSA2200 | 2200 W AC power supply unit | |
| W2PSD2200 | 2200 W DC Power supper unit | |
| EH1M00PDBS01 | DC power distribution box components | |
| EH1SMS219700 | S9700 system software, V200R001 | |
| EH1SMPLS0000 | MPLS license | |
| EH1SNQA00000 | NQA license | |
| EH1SIPV60000 | IPv6 authorization | |
| EH1SWLAN64AP | AP resource license-64 APs for WLAN access controller | |
| EH1SWLAN128AP | AP resource license-128 APs for WLAN access controller | |
| EH1I000DOC00 | S9700 routing switches product documentation |

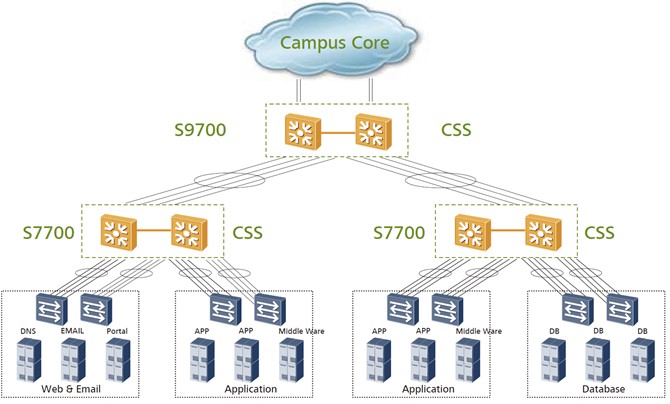

Huawei S9706 Core Routing Switch Networking and Applications
