S5700S-52P-LI-AC
418.47
Details

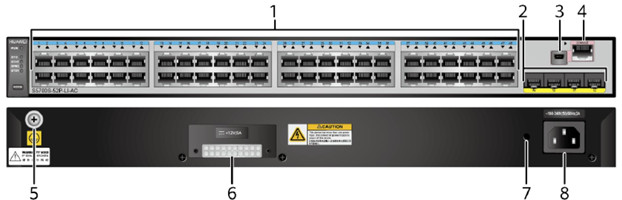

1 Forty-eight 10/100/1000BASE-T ports
2 Four 1000BASE-X ports
3 One mini USB port
4 One console port
5 Ground screw
6 RPS socket
7 Jack for AC power cable locking strap
8 AC socket
Huawei S5700S-52P-LI-AC Datasheet
| Item | Description |
| Brand | Huawei |
| Model | S5700S-52P-LI-AC |
| Part number | 2353835 |
| Memory (RAM) | 256 MB |
| Mean time between failures (MTBF) | 39.26 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection | ±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) |
| Weight (with packaging) | 3.5 kg (7.72 lb) |
| Stack ports | Not supported |
| RTC | Supported |
| RPS | Supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Noise under normal temperature (27°C, sound power) | < 43.8 dB(A) |
| Maximum power consumption (100% throughput, full speed of fans) | 48.4 W |
| Flash | V200R001: 64 MB V200R002 and later versions: 200 MB |
| Operating temperature |
0°C to 50°C (32°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
|
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
|
Typical power consumption (30% of traffic load)
Tested according to ATIS standard EEE enabled No PoE power consumption |
32.5 W |
Huawei S5700S-LI Series Models
S5700S-28P-LI-AC
S5700S-28P-PWR-LI-AC
S5700S-52P-LI-AC
S5700S-28X-LI-AC
S5700S-52X-LI-AC
