AirEngine 6760R-51

Be the first to review this product

$820.35

Huawei Wi-Fi 6 (802.11ax) outdoor access point 2.4 GHz (4x4) + 5 GHz (4x4) radios, achieving max rate 5.95 Gbps

Delivery & Return

Availability:In stock

SKU Huawei AirEngine 6760R-51

Brand Huawei

Details

Huawei AirEngine 6760R-51 is a Wi-Fi 6 (802.11ax) outdoor access points. This model supports 2.4 GHz (4x4) + 5 GHz (4x4) radios, delivering a maximum rate of 5.95 Gbps. AirEngine 6760R-51 stands out with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong urge protection capability. Apart from them, the product provides uplink optical and electrical ports, permitting subscribers to select different deployment modes and saving their investment. These powerful strengths allows it ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.

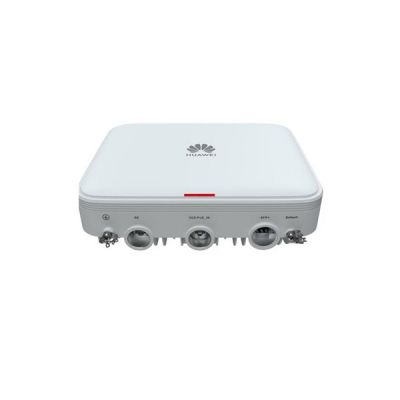

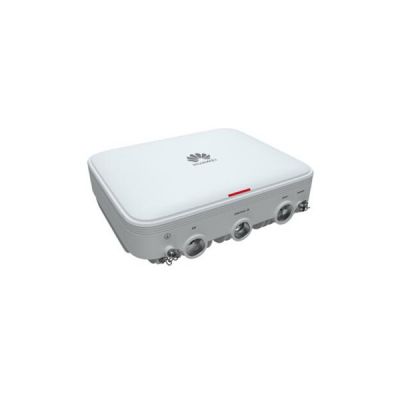

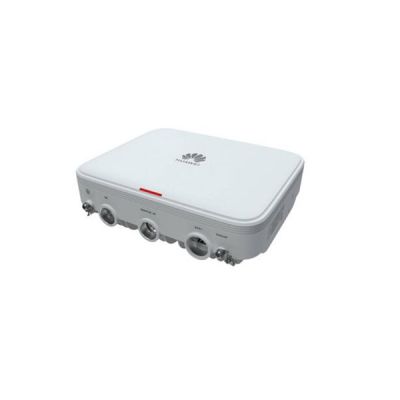

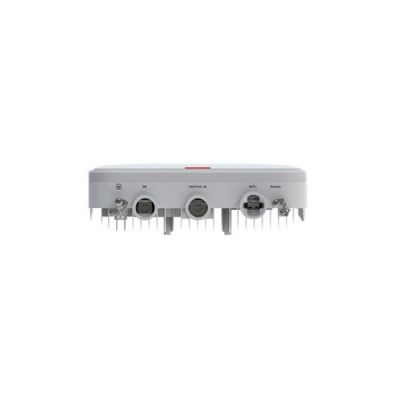

Huawei AirEngine 6760R-51

Huawei AirEngine 6760R-51 Datasheet

Brand	Huawei
Parameters	AirEngine 6760R-51
Built-in Bluetooth	BLE 5.0
Maximum Rate	5.95 Gbit/s
Dimensions (H x W x D)	85 mm x 270 mm x 220 mm
Power Input	PoE power supply: in compliance with IEEE 802.3bt
Maximum Number of Users	≤ 1024
Maximum Number of Users	Note: The actual number of users varies according to the environment
Port	1 x 5 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+
Operating Temperature	–40°C to 65°C
Antenna Type	AirEngine 6760R-51: Built-in Antennas
MIMO: Spatial Streams	2.4 GHz: 4x4:4; 5 GHz: 4x4:4
Radio Protocols	802.11a/b/g/n/ac/ac Wave 2/ax

Huawei AirEngine 6760R-51 Features

l Provide services simultaneously on both the 2.4 GHz and 5 GHz bands, at a rate of up to 1.15 Gbps at 2.4 GHz (4 x 4), 4.8Gbps at 5 GHz (4 x 4), and 5.95 Gbps for the device.

l 1 x 5GE electrical, 1 x GE electrical, and 1 x 10GE SFP+.

l 6 KA/6 KV surge protection for Ethernet ports, IP68 waterproof and dustproof design, and -40°C to + 65°C wide temperature, fully meeting industrial-grade requirements.

l Support Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP, and precise locating of Bluetooth terminals by collaborating with location server.

l Support the Fat, Fit, and cloud three working modes

l Support 160 MHz frequency bandwidth, which increases the number of available data subcarriers and expands transmission channels. In addition, the APs use 1024QAM modulation and MU-MIMO to achieve a rate of up to 4.8 Gbps on the5 GHz band and 5.95 Gbps for the device.

l Designed with metal shell, waterproof connectors, and an overall heat dissipation.6KA/6KV surge protection for Ethernet ports, IP68 waterproof and dustproof design, and -40°C to +65°C wide temperature, fully meeting industrial-grade requirements

l Has built-in 5KA feeder surge protectors and require no external surge protective devices, which simplifies installation and lowers costs.
