CloudEngine S6730-H24X6C

CloudEngine S6730-H24X6C


Huawei's new generation IDN ready fixed switch with 24 x 10 Gig SFP+, 6 x 100 Gig QSFP28

- +
Availability:In stock
SKU Huawei CloudEngine S6730-H24X6C
Brand Huawei

Huawei CloudEngine S6730-H24X6C is brand-new 10GE box switch with 24 10G SFP+, 6 100GE QSFP28. It has onboard AC capability and can manage a large number of APs. Additionally, the item offers free mobility capabilities and provides a consistent user experience. Apart from them, the product has VXLAN capabilities and support network Virtualization function, built-in security probe, abnormal traffic detection, threat analysis of encrypted traffic, and network-wide threat trapping and other functions. Therefore, S6730-H24X6C can be widely used in enterprise campuses, operators, universities, governments and other application scenarios.

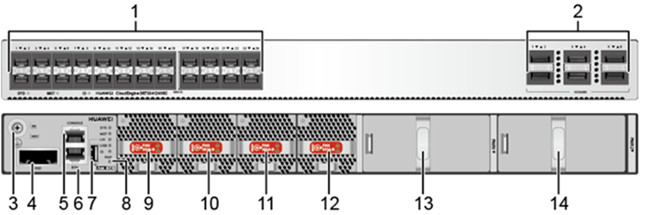

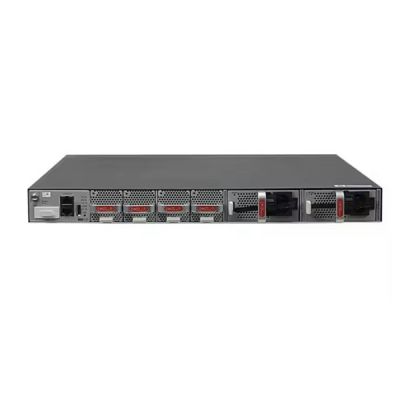

CloudEngine S6730-H24X6C

1 Twenty-four 10GE SFP+ ports 8 One PNP button
2 Six 40GE/100GE QSFP28 optical ports 9 Fan module slot 1
3 Ground screw 10 Fan module slot 2
4 SSD card slot 11 Fan module slot 3
5 One console port 12 Fan module slot 4
6 One ETH management port 13 Power module slot 1
7 One USB port 14 Power module slot 2

Huawei CloudEngine S6730-H24X6C Specifications

Item Description
Model CloudEngine S6730-H24X6C
Part number 02352FSG, 02352FSG-001, 02353GFC, 02353GFC-001
Fixed Port 24*10GE SFP+ ports 6*40GE/100GE QSFP28 optical ports
Memory (RAM) 4 GB
Flash 2 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 62.27 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection N/A
Weight (with packaging) 8.9 kg (19.62 lb)
RTC Supported
RPS Not supported
PoE Not supported
Maximum power consumption (100% throughput, full speed of fans) 254 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 149 W
Operating temperature
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 65 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Stack ports Any 10GE SFP+ ports (a maximum of 16 physical ports)
Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
Certification EMC certification
Safety certification
Manufacturing certification
Rated voltage range
AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Dimensions (H x W x D) Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)

Huawei CloudEngine S6730-H24X6C Features

l  It has a built-in high-speed and flexible processor chip. It is designed specifically for Ethernet. With its packet and flow control capabilities to meet various challenges now and in the future, and help customers build elastically scalable networks.

l  It has the function of converged AC and supports AP management, which can save users the cost of purchasing additional AC hardware. The wireless forwarding capability breaks through the bottleneck of external AC forwarding performance, and is ready for the high-speed wireless era.

l  It supports the SVF super virtual switching network function. As a parent switch, the original "small core/aggregation + access switch + AP" network architecture is virtualized into one device for management, simplifying network management.

l  It supports SmartLink and VRRP functions. It is connected to multiple aggregation switches through multiple links. SmartLink/VRRP implements uplink backup, greatly improving the reliability of access-side devices.

l  It supports VXLAN feature, centralized gateway and distributed gateway deployment, and BGP-EVPN protocol to realize dynamic establishment of VXLAN tunnel, and can be configured through Netconf/YANG.

Huawei CloudEngine S6730-H24X6C Ordering Information

Model  Product Description
CloudEngine S6730-H48X6C  CloudEngine S6730-H48X6C(48 x 10 Gig SFP+, 6 x 100 Gig QSFP28, equipped power modules by default not available)
CloudEngine S6730-H24X6C  CloudEngine S6730-H24X6C(24 x 10 Gig SFP+, 6 x 100 Gig QSFP28, equipped power modules by default not available)
L-100GEUPG-S67H  CloudEngine S6730-H Series, 40GE to 100GE Electronic RTU LicensePer Device
L-VxLAN-S67  S67Series, VxLAN License, Per Device
L-512AP-S67  S67 Series, Wireless Access Controller AP Resource License-512AP
L-64AP-S67  S67 Series, Wireless Access Controller AP Resource License-64AP
L-32AP-S67  S67 Series, Wireless Access Controller AP Resource License-32AP
L-1AP-S67  S67 Series, Wireless Access Controller AP Resource License-1AP
N1-S67H-M-Lic  CloudEngine S6730-H Series Basic SW,Per Device
N1-S67H-M-SnS1Y  CloudEngine S6730-H Series Basic SW,SnS,Per Device,1Year
PAC-600S12-CB  600W AC power module
PDC1000S12-DB  1000W DC power modul

Huawei CloudEngine S6730-H24X6C Networking and Applications

Huawei CloudEngine S6730-H24X6C applications
