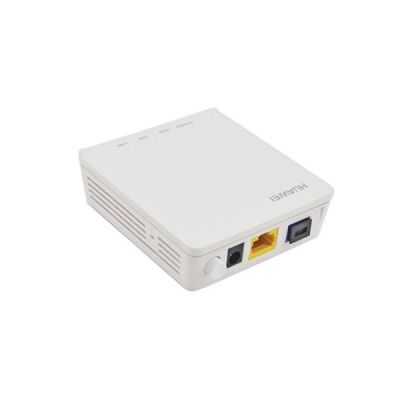

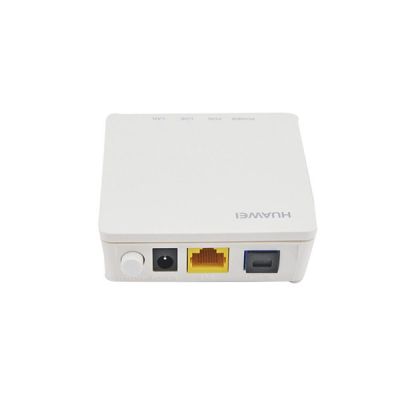

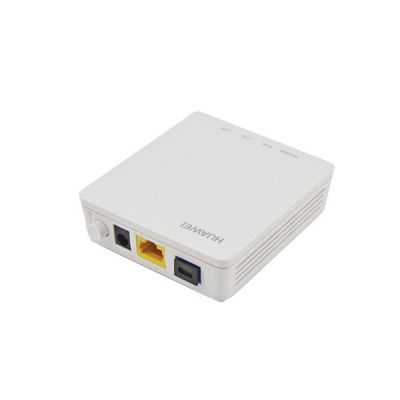

EchoLife HG8310M
31.02

EchoLife HG8310M

As low as $31.02
- +
Availability:In stock
SKU Huawei EchoLife HG8310M
Brand Huawei
Details

Brand Huawei
Model HG8310M
Pon Type GPON/EPON
Connection type SC/UPC SC/APC
Dimensions 82 x 90 x 27 mm
Average power consumption 2 W
Maximum power consumption 3 W
Weight < 500 g
Permissible operating temperature 0° to 40° C
Permissible air humidity 5%-95% RH, non-condensing
Power input 100 - 240 V AC, 50 - 60 Hz
System power supply 11 - 14 V DC, 0.5 A
LEDs POWER/ PON/ FATE/ LAN
  12 V, 0.5 A DC power supply
GPON 1 port class C+
Sensitive reception: ~-27 dBm
Flexible mapping between the GEM and TCONT ports
Wavelength: US 1310 nm, DS 1490 nm
GPON: compatible with SN authentication or password as defined in G.984.3
Two-way FEC
SR-DBA and NSR-DBA
Ethernet 10/100/1000BASE-T (RJ45)
Teaching MAC addresses
Transparent transmission of IPv6 packets on layer 2 level
QinQ VLAN
More Information
More Information
Brand Huawei
