CloudEngine S6750-H48Y8C
2689.25
Details

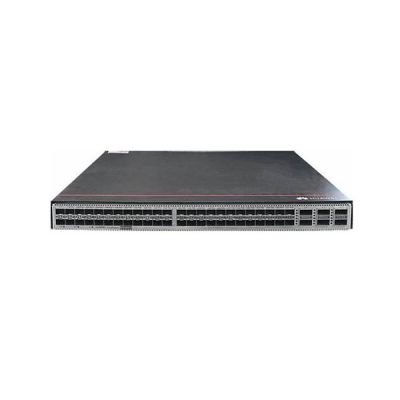

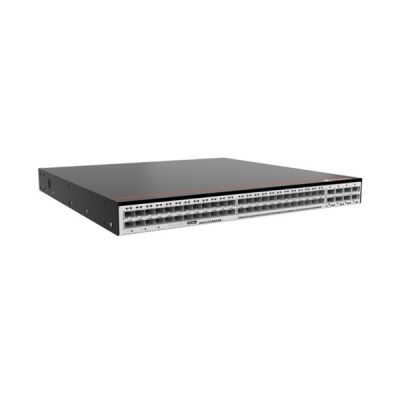

Huawei CloudEngine S6750-H48Y8C is a next generation enterprise class core and aggregation switch with 48 x 1/10/25 GE SFP28, 8 x 40/100 GE QSFP28 ports and 1+1 power backup. It offers high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). The switch builds on an industry leading software and hardware platform and are purpose built with security, IoT, and cloud in mind. With these traits, CloudEngine S6750-H can be widely used in enterpr ise campuses, colleges/universities, finance/bank and other scenarios. In addition, S6750-H series 25GE switches support VXLAN to implement network virtualization, achie ving multi purpose networks and multi network convergence for greatly improved network capacity and utilization.
Moreover, S6750-H series 25GE switches support the iStack function that combines multiple switches into a logical switch. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to improve link reliability. iStack provides high network scalability. You can increase a stack's ports, bandwidth, and processing capability by simply adding member switches. iStack also simplifies device configuration and management. After a stack is set up, multiple physical switches can be virtualized into one logical device. You can log in to any member switch in the stack to manage all the member switches in it.
As such, S6750 H series 25GE switches are an ideal choice for building next generation IoT converged networks in terms of cost, fle xibility, and scalability.

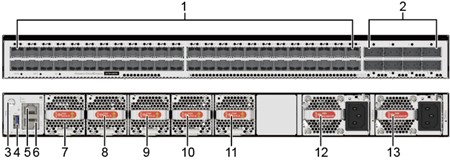

| 1, Forty-eight 1GE/10GE/25GE SFP28 optical ports | 2, Eight 40GE/100GE QSFP28 optical ports |
| 3, Ground screw | 4, 1 USB port |
| 5, One console port | 6, One ETH management port |

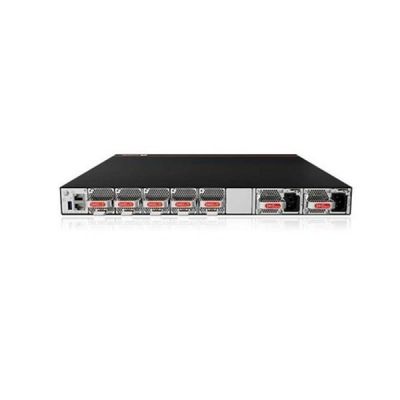

| 7, Fan module slot 1 | 8, Fan module slot 2 |
| 9, Fan module slot 3 | 10, Fan module slot 4 |
| 10, Fan module slot 5 | 12, Power module slot 1 |
| 13, Power module slot 2 |
Huawei CloudEngine S6750-H48Y8C Specifications
| Item | Details |
| Part Number | 02355UEL |
| Model | S6750-H48Y8C |
| Port | 48*25GE SFP28 ports, 8*100GE QSFP28 ports, without power module |
| First supported version | V600R023C10 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.4 in. x 17.58 in.) | |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 6.96 kg (15.34 lb) |
| Weight with packaging [kg(lb)] | 11.23 kg (24.76 lb) |
| Typical power consumption [W] | 30% traffic under the ATIS standard and dual power modules: 223 W |
| Typical heat dissipation [BTU/hour] | 30% traffic under the ATIS standard and dual power modules: 760.90 |
| Maximum power consumption [W] | 100% traffic under the ATIS standard and dual power modules: 244 W |
| High temperature 45°C (113°F), 100% traffic, and dual power modules: 342 W | |
| Maximum heat dissipation [BTU/hour] | 100% traffic under the ATIS standard and dual power modules: 832.55 |
| High temperature 45°C (113°F), 100% traffic, and dual power modules: 1166.94 | |
| Static power consumption [W] | 172 W |
| MTBF [years] | 29.72 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 58.4 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 57.2 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 5 |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together in the same switch. | |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). | |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz |
| High-voltage DC input: 240 V DC | |
| DC input: –48 V DC to –60 V DC | |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC; 45–65 Hz |
| High-voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Memory | 8 GB |
| Flash memory | Physical space: 4 GB |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | - |
| Power supply surge protection [kV] | Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode |
| Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode | |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Pluggable |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
| PoE | Not supported |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei CloudEngine S6750-H48Y8C Features
l S6750-H series 25GE switches support fully customizing the forwarding mode, forwarding behavior, and search algorithm of traffic. New services are implemented through microcode programming. Customers do not need to replace new hardware and new services can be rolled out within six months.
l S6750-H series 25GE switches provide open interfaces and user-defined forwarding processes to meet customized service requirements of enterprises. Enterprises can use multi-layer open interfaces to develop new protocols and functions independently. They can also hand over their requirements to vendors and jointly develop them to build an enterprise-dedicated campus network.
l S6750-H series 25GE switches provide excellent quality of service(QoS) capabilities and supports queue scheduling and congestion control algorithms. Additionally, it adopts innovative priority queuing and multi-level scheduling mechanisms to implement fine-grained scheduling of data flows, meeting service quality requirements of different user terminals and services.
l S6750-H series swithes are developed based on the mature, stable VRP and supports IPv4/IPv6 dual stacks, IPv6 routing protocols (RIPng, OSPFv3, BGP4+, and IS-IS for IPv6). With these IPv6 features, the CloudEngine S6750-H can be deployed on a pure IPv4 network, a pure IPv6 network, or a shared IPv4/IPv6 network, helping achieve IPv4-to-IPv6 transition.
Huawei CloudEngine S6750-H48Y8C Ordering Info
| Model | Product Description |
| CloudEngine S6750-H48Y8C | CloudEngine S6750-H48Y8C (48*25GE SFP28 ports, 8*100GE QSFP28 ports, without power module) |
| PAC600S12-PB | 600W AC power module |
| PAC1K2S12-PB | 1200W AC power module |
| PDC1K2S12-CE | 1200W DC power module |
| FAN-031A-B | Fan Module |
| N1-S67H-M-Lic | S67XX-H Series Basic SW,Per Device |
| N1-S67H-M-SnS1Y | S67XX-H Series Basic SW,SnS,Per Device,1Year |
| N1-S67H-F-Lic | N1-CloudCampus,Foundation,S67XX-H Series,Per Device |
| N1-S67H-F-SnS | N1-CloudCampus,Foundation,S67XX-H Series,SnS,Per Device |
| N1-S67H-A-Lic | N1-CloudCampus,Advanced,S67XX-H Series,Per Device |
| N1-S67H-A-SnS | N1-CloudCampus,Advanced,S67XX-H Series,SnS,Per Device |
| N1-S67H-FToA-Lic | N1-Upgrade-Foundation to Advanced,S67XX-H,Per Device |
| N1-S67H-FToA-SnS | N1-Upgrade-Foundation to Advanced,S67XX-H,SnS,Per Device |
| N1-AM-30-Lic | N1-CloudCampus, Add-On Package, Access Management, Per 30 Endpoints |
| N1-AM-30-SnS1Y | N1-CloudCampus, Add-On Package, Access Management, Software Subscription and Support, Per 30 |
| Endpoints, 1 Year | |
| N1-EPNP-30-Lic | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Per 30 Endpoints |
| N1-EPNP-30-SnS1Y | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Software Subscription and Support, Per 30 |
| Endpoints, 1 Year | |
| N1-APP-X7FSwitch | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Per Device |
| N1-APP-X7FSwitch-SnS1Y | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Software Subscription and Support, Per Device, 1 Year |

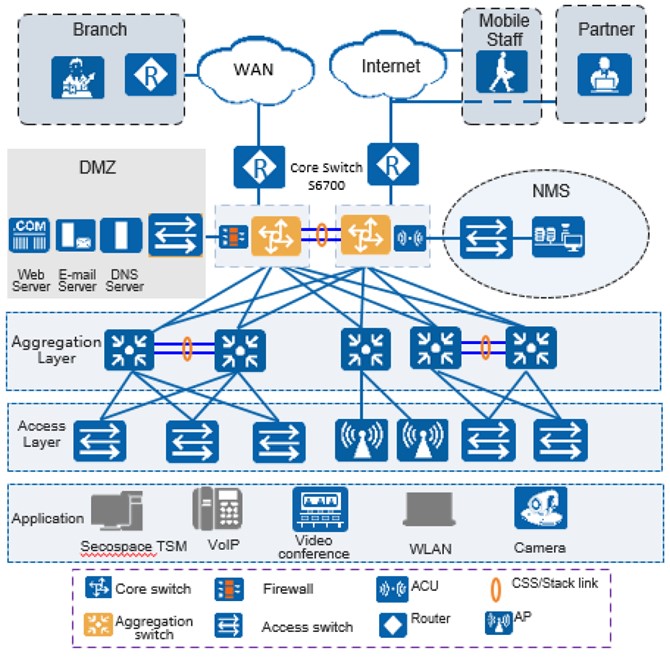

Huawei CloudEngine S6750-H48Y8C Networking and Applications
More Information
| Brand | Huawei |
|---|
