AirEngine 6760R-51E

AirEngine 6760R-51E


Huawei Wi-Fi 6 (802.11ax) outdoor access point 2.4 GHz (4x4) + 5 GHz (4x4) radios achieving max rate 5.95 Gbps

- +
Availability:In stock
SKU Huawei AirEngine 6760R-51E
Brand Huawei

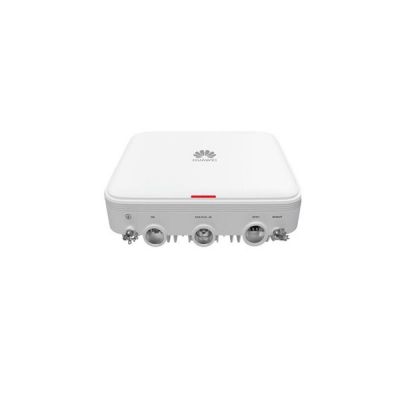

Huawei AirEngine 6760R-51E is a next generation, high-performance outdoor Access Points (APs) that fully comply with Wi-Fi 6 (802.11ax) standards. Available with either built-in (AirEngine 6760R-51) or external (AirEngine 6760R-51E) antennas, both support 8x8 MU-MIMO and are capable of achieving a device rate of up to 5.95 Gbit/s. This access point is aimed to more than meet industry requirements, the APs are IP68 rated — indicating water, dust, dirt, and sand resistance — and offer 6 kV/6 kA surge protection capability.In addition, AirEngine 6760R-51E also outstands both optical and electrical uplink ports, permitting customers to select different deployment modes based on demands, ultimately protecting and maximizing customer investment. Such strengths make them well-suited for outdoor scenarios such as town squares, pedestrian streets, and amusement parks.


Huawei AirEngine 6760R-51E Specifications

Brand Huawei
Model name AirEngine 6760R-51E
Built-in Bluetooth BLE 5.0
Operating Temperature –40°C to 65°C
Maximum Rate 5.95 Gbit/s
Dimensions (H x W x D) 85 mm x 270 mm x 220 mm
Port 1 x 5 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+

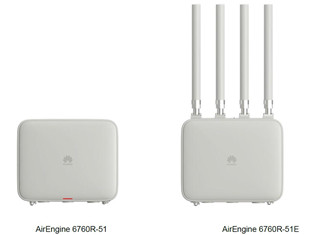

Antenna Type AirEngine 6760R-51: Built-in Antennas
AirEngine 6760R-51E: External antennas
MIMO: Spatial Streams 2.4 GHz: 4x4:4; 5 GHz: 4x4:4
Radio Protocols 802.11a/b/g/n/ac/ac Wave 2/ax
Power Input PoE power supply: in compliance with IEEE 802.3bt
Maximum Number of Users 1024
Note: The actual number of users varies according to the environment

Huawei AirEngine 6760R-51E Features

l  AirEngine 6760R-51 built-in antenna

l  Support three working modes of FIT/FAT/cloud management

l  Support 1 x5GE electrical port + 1 xGE electrical port + 1 x10G optical port

l  AirEngine 6760R-51E external antenna port supports 5KA antenna feed lightning protection, no external lightning protection device is required, simplified installation, and lowest overall cost

l  Built-in Bluetooth, with CloudCampus APP, it can realize Bluetooth serial port operation and maintenance; with positioning server, it can realize precise positioning of Bluetooth terminal and tag

l  Support Ethernet interface 6KA/6KV enhanced lightning protection, IP68 waterproof and dustproof grade, -40°C~ +65°C wide temperature operation, fully meet the requirements of industrial grade use

l  Support dual radio frequency 2.4GHz(4x4)+5GHz(4x4) working at the same time, among which the maximum rate of 2.4GHz band is 1.15Gbps, the maximum rate of 5GHz band is 4.8Gbps, and the whole machine rate can reach 5.95Gbps

Huawei AirEngine 6760R-51E and More AirEngine 6700 Series Access Points

AirEngine 6760-51EI

AirEngine 6760-X1

AirEngine 6760-X1E

AirEngine 6760R-51

AirEngine 6760R-51E

AirEngine 6761-21

AirEngine 6761-21E

AirEngine 6761-21T

AirEngine 6761S-21

AirEngine 6761S-21T

Huawei AirEngine 6760R-51E Antennas Pattern

 6760R-51E Antennas Pattern
