S6720S-S24S28X-A
2000.98

S6720S-S24S28X-A

$2,000.98

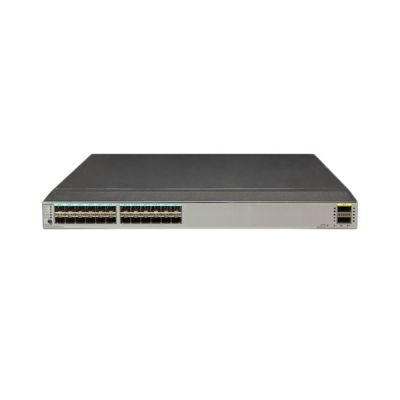

Standard 10 Gigabit Ethernet Switch with 24*Gigabit SFP ports, 28*10 Gigabit ports, built-in AC power supply (front)

- +
Availability:In stock
SKU Huawei S6720S-S24S28X-A
Brand Huawei
Details

Huawei S6720S-S24S28X-A is a Standard 10 Gigabit Ethernet Switch with 24*Gigabit SFP ports, 28*10 Gigabit ports, built-in AC power supply (front) launched for the campus network market. The product supports a wide range of service features, comprehensive security control strategies, and rich QoS characteristics. The S6720S-S series adopt a front power supply design, with a total depth of only 220mm. This design allows for high-density gigabit/10-gigabit optical access interfaces to be widely deployed in aggregation or core layers of campus networks, as well as in small data center access scenarios, meeting the demand for full optical interconnection.The ports of this series of switches support flexible access for GE and 10GE, automatically recognizing the type of optical module installed, thus maximizing user investment protection and ensuring operational flexibility. In response to the high data traffic and non-blocking transmission requirements of data centers, the product can provide strong buffering capabilities and supports advanced buffer scheduling mechanisms, ensuring that the device’s buffering capabilities are utilized to the fullest.

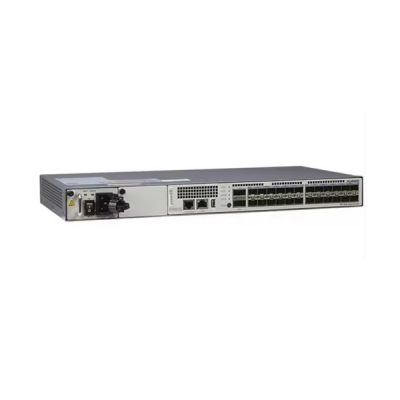

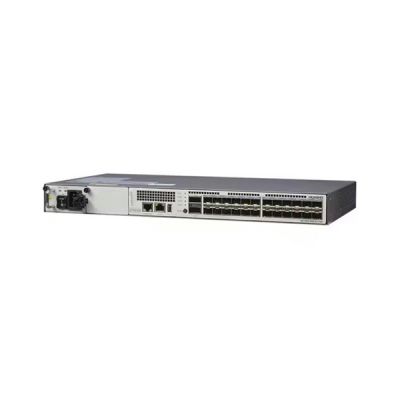

S6720S-S24S28X-A Huawei S6720S-S Series Switches 24*Gigabit SFP, 28*10 Gigabit SFP, AC power supply good price YCICT

1, 24*1000BASE-X Ethernet optical interfaces 2, 28*10GE SFP Ethernet optical interfaces
3, 1*Console interface 4, 1*ETH management interface
5, 1*PNP button 6, AC power socket
7, Grounding screw

Huawei S6720S-S24S28X-A Specifications

Item Description
Port 24*Gigabit SFP, 28*10G SFP, AC power supply, front maintenance
Part No 98011050
型号 S6720S-S24S28X-A
Dimensions (Width x Depth x Height, including packaging) [mm] 555.0mm×345.0mm×90.0mm
Chassis Height [U] 1U
Chassis Material Metal
Weight (excluding packaging) [kg] 3.6kg
Weight (including packaging) [kg] 4.7kg
Typical Power Consumption [W] 78W
Typical Heat Dissipation [BTU/hour] 266.14BTU/hour
Maximum Power Consumption [W] 99W
Maximum Heat Dissipation [BTU/hour] 337.8BTU/hour
Static Power Consumption [W] 39W
MTBF [years] 41.97years
Availability > 0.99999
Ambient Noise (Sound Power) [dB(A)] 56.8dB(A)
Ambient Noise (Sound Pressure) [dB(A)] 44.8dB(A)
 Number of Card Slots 0
Number of Power Slots 0
Number of Fan Modules 3
Power Redundancy No support
Long-term Operating Ambient Temperature [°C] ;-5°C+45°C0m1800m Elevation)
Short-term Operating Ambient Temperature [°C] -5°C+50°C0m1800m Elevation)
Operating Ambient Temperature Variation Limit [°C] From 1800m to 5000m, the maximum temperature specification decreases by 1°C for every 220m increase in altitude.
Storage Temperature [°C] -40°C+70°C
Long-term Operating Ambient Relative Humidity [RH] 5%RH95%RHNon-condensing
Long-term Operating Altitude [m] 0m5000m
Storage Altitude [m] 0m5000m
Power Supply Mode Built-in AC
Rated Input Voltage [V] Input communication: 100V AC ~ 130V AC, 200V AC ~ 240V AC; 50/60HzHigh voltage DC input: 240V DC
Input Voltage Range [V] AC input: 90V AC to 290V AC; 45Hz to 65Hz High voltage DC input: 190V DC to 290V DC
Maximum Input Current [A] 6A
Memory 2GB
Flash Physical space is 1GB, and the actual available space can be checked using the display version command.
Console Interface Type RJ45
Eth Management Network Port Type RJ45
USB Port No support
Real-Time Clock (RTC) Support
RPS Input No support
Service Port Lightning Protection [kV] -
Power Port Lightning Protection [kV] Differential mode ±6kV, common mode ±6kV
Three-proofing (Dustproof/ Waterproof) IP20
Fan Type Built-in Fan
Cooling Method Air cooling and intelligent speed regulation
Airflow Direction Left intake air, right exhaust air
PoE Function No support
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions (H x W x D) Basic dimensions (depth excluding the distance from the protruding structural components of the front and rear panels): 442.0mm × 220.0mm × 43.6mmMaximum dimensions (depth from the protruding ports on the front panel to the maximum distance of the protruding structural components on the rear panel): 442.0mm × 228.0mm × 43.6mm

Huawei S6720S-S24S28X-A Features

l  S6720S-S supports Ethernet Trunk (E-Trunk) functionality. After using E-Trunk, CE devices can connect to two PE devices through E-Trunk dual access, achieving inter-device link aggregation and link load balancing, greatly enhancing the reliability of access-side devices

l  S6720S-S supports Smart Ethernet Protection (SEP), which is a ring network protocol specifically designed for the Ethernet link layer, suitable for semi-ring network scenarios, providing millisecond-level fast service switchover performance to ensure uninterrupted services. The SEP protocol is simple and reliable, offers high switchover performance, is easy to maintain, and has flexible topology, greatly facilitating network management and planning for users.

l  S6720S-S supports the G.8032 (Ethernet Ring Protection Switching, abbreviated as ERPS) ring network standard protocol. The ERPS standard is based on traditional Ethernet MAC and bridging functions, utilizing mature Ethernet OAM capabilities and a ring automatic protection switchover (Ring APS, abbreviated as R-APS) protocol to achieve millisecond-level fast protection switchover for Ethernet rings. ERPS supports various services with flexible networking modes, providing customers with lower OPEX and CAPEX

l  S6720S-S supports the Virtual Router Redundancy Protocol (VRRP), constructing a VRRP backup group to maintain communication continuity and reliability, effectively ensuring continuous and reliable network access. It supports configuring multiple equivalent routes on the devices to achieve upstream route redundancy. When the primary upstream route fails, it automatically switches to the next backup route, realizing multi-level backup for upstream routing.

Huawei S6720S-S24S28X-A Ordering Info

Model Descriptions
S6720S-S36S16X-A  36*Gigabit SFP, 16*10G SFP, AC power supply, front maintenance
S6720S-S24S28X-A 24*Gigabit SFP, 28*10G SFP, AC power supply, front maintenance
S6720S-S52X-A 52*10G SFP, AC power supply, front maintenance

Huawei S6720S-S24S28X-A Networking and Applications

S6720S-S24S28X-A Huawei S6720S-S Series Switches 24*Gigabit SFP, 28*10 Gigabit SFP, AC power supply S6720S-S52X-A YCICT
