CloudEngine 8851-32CQ8DQ-K
19000.18

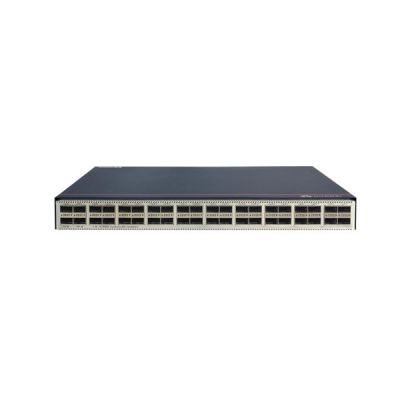

CloudEngine 8851-32CQ8DQ-K

$19,000.18

Huawei Data Center Switch with 32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules

- +
Availability:In stock
SKU Huawei CloudEngine 8851-32CQ8DQ-K
Brand Huawei
Details

Huawei CloudEngine 8851-32CQ8DQ-K is a 100G Ethernet switch with 32*100GE QSFP28, 8*400GE QSFPDD. The switch is designed for data centers and high-end campus networks. It provides high-performance, high-density 400GE/200GE/100GE/50GE ports. CloudEngine 8851 series use a flexible airflow design (front-toback or back-to-front), and can work with CloudEngine 16800 or CloudEngine 12800 series data center core switches to build elastic, virtual, and high-quality 400GE/100GE full-mesh networks, meeting requirements of cloud computing data centers.
In addition, CloudEngine 8851 series switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era.
CloudEngine 8851 series switches can interconnect with iMaster NCE-Fabric through standard protocols such as NetConf and SNMP to implement network automatic management and control, providing more efficient and intelligent operation methods, simplifying network management, and reducing the OPEX. They can also be used as aggregation or core switches for enterprise campus networks.

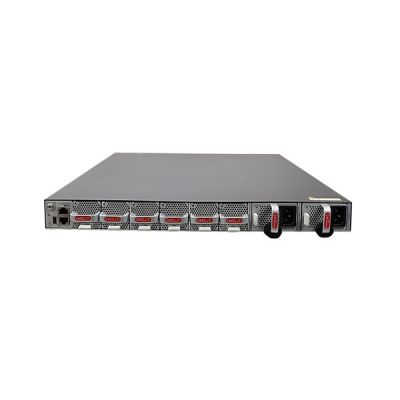

CloudEngine 8851-32CQ8DQ-K Huawei Data Center Switch 32*100GE QSFP28, 8*400GE QSFPDD without fan and power module YCICT

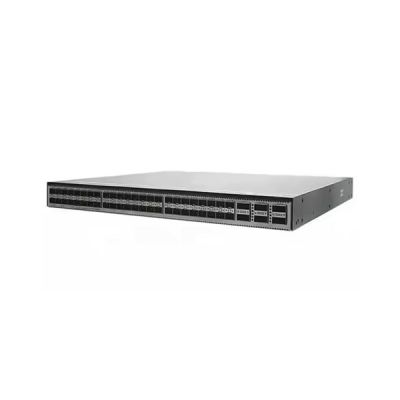

CloudEngine 8851-32CQ8DQ-K Huawei CE8800 Switch 32*100GE QSFP28, 8*400GE QSFPDD without fan and power module YCICT

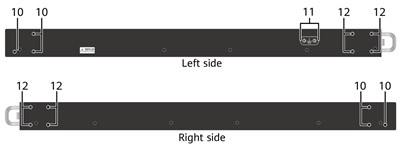

1, Ground screw 2, USB port
3, Console port 4,  ETH management port (RJ45)
5, Six Fan slots 6, Two Power supply slots
7, Thirty-two 100GE SFP28/Thirty-two 200GE SFP56 Ethernet optical ports 8,  Eight 400GE QSFP-DD Ethernet optical ports
9, Equipment serial number (ESN) and MAC address 10, Three port-side mounting holes for mounting brackets
11, Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal 12, Four power-supply-side mounting holes for mounting brackets

Huawei CloudEngine 8851-32CQ8DQ-K Specifications

Item Details
Model CE8851-32CQ8DQ-K
Part Number 02353PJQ
Description CE8851-32CQ8DQ-K switch (32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules)
First supported version V300R020C00
Other part numbers 02353PJR (CE8851-32CQ8DQ-K switch (32*100GE QSFP28, 8*400GE QSFPDD, 2* AC power modules, 6*fan modules, port-side intake))
Short Name CE8851K
Dimensions with packaging (H x W x D) [mm (in.)] 260 mm x 790 mm x 590 mm (10.24 in. x 31.10 in. x 23.23 in.)
Dimensions without packaging (H x W x D) [mm (in.)] Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 600 mm (1.72 in. x 17.40 in. x 23.62 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 625.5 mm (1.72 in. x 17.40 in. x 24.63 in.)
Weight without packaging [kg (lb)] 9.1 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 12.2 kg (including AC power modules and fan modules, excluding optical modules)
Weight with packaging [kg (lb)] 13.4 kg (29.54 lb)
Weight with packaging (full configuration) [kg (lb)] 16.5 kg (36.37 lb)
Chassis height [U] 1 U
Installation Type Cabinet Installation
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 4-core, 1.4 GHz
Memory DRAM: 8 GB
NOR Flash 64 MB
NAND Flash 4 GB
USB It can be used for log backup and USB-based deployment.
This function is reserved.
Power supply mode AC pluggable
DC pluggable
HVDC pluggable
Console port RJ45
Downlink Service interface 32 x 100GE QSFP28/32 x 200GE QSFP56
Uplink Service interface 8 x 400GE QSFP-DD
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Static power consumption [W] 455 W
Static heat dissipation [BTU/hour] 1757 BTU/hour
Number of power modules 2
Redundant power supply 1+1 backup
Types of fans Pluggable
Number of fan modules 6
Heat dissipation mode Air cooling
Airflow direction Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability 0.999992068
MTBF [year] 21.59 years
Noise at normal temperature (27°C, sound pressure) [dB(A)] Front-to-back airflow: 56.5 dB(A) on average (maximum: 61.7 dB(A))
Back-to-front airflow: 58.7 dB(A) on average (maximum: 62.10 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)] Front-to-back airflow: 71.8 dB(A) on average (maximum: 78.3 dB(A))
Back-to-front airflow: 74.5 dB(A) on average (maximum: 78.10 dB(A))
Long-term operating altitude [m (ft.)] 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)] 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
RTU License Supported Yes.
By default, 32 100GE ports can work at the rate of 100 Gbit/s, and 400GE ports are unavailable. The following RTU licenses can be used:
88036EUN: Eight 400GE ports are added.
88036EUP: The rate of 32 x 100GE ports is upgraded to 200 Gbit/s.

Huawei CloudEngine 8851-32CQ8DQ-K Features

l  CloudEngine 8851 series support multi-chassis link aggregation group (M-LAG), which enables links of multiple switches to aggregate into one to implement device-level link backup. Switches in an M-LAG all work in active state to share traffic and back up each other, enhancing system reliability.

l  CloudEngine 8851 series can work with the industry's mainstream virtualization platforms. The virtualization function protects investments because services can be deployed quickly without requiring network changes. The hardware gateway deployment enables fast service deployment without changing the customer network, providing investment protection.

l  CloudEngine 8851 series support NETCONF and can work with Huawei iMaster NCE-Fabric.

l  CloudEngine 8851 series support Ansible-based automatic configuration and open-source module release, expanding network functions and simplifying device management and maintenance.

l  CloudEngine 8851 series can be integrated into mainstream SDN and cloud computing platforms flexibly and quickly.

Huawei CloudEngine 8851-32CQ8DQ-K Ordering Info

CE8851-32CQ8DQ-K CE8851-32CQ8DQ-K switch (32*100GE QSFP28, 8*400GE QSFPDD, without fan and power modules)
CE8851-32CQ8DQ-P CE8851-32CQ8DQ-P Switch(32*100GE QSFP28,8*400G QSFPDD ,Without Fan and Power Module)(CM)
CE8851-32CQ8DQ-PB CE8851-32CQ8DQ-PB Switch(32*100GE QSFP28,8*400G QSFPDD,2*AC Power Module,6*FAN Box,Port-side Intake)(CM)
CE8851-32CQ8DQ-PF CE8851-32CQ8DQ-PF Switch(32*100GE QSFP28,8*400G QSFPDD,2*AC Power Module,6*FAN Box,Port-side Exhaust)(CM)
FAN-036A-F Fan box(F,FAN panel side intake)
FAN-036A-B Fan box(B,FAN panel side exhaust)
PAC1K2S12-CB 1200W AC&240V DC Power Module (Back to Front,Power panel side air-out)
PAC1K2S12-CF 1200W AC&240V DC Power Module (Front to Back,Power panel side intake)
CE88-RTU-8DQ 8*400G Port Right-to-Use for CloudEngine 8800
CE88-RTU-U32CQ 32*100G Upgrade to 32*200G Right-to-Use for CloudEngine 8800
N1-CE88LIC-CFFD N1-CloudFabric Foundation SW License for CloudEngine 8800
N1-CE88CFFD-SnS1Y N1-CloudFabric Foundation SW License for CloudEngine 8800-SnS-Year
N1-CE88LIC-CFAD N1-CloudFabric Advanced SW License for CloudEngine 8800
N1-CE88CFAD-SnS1Y N1-CloudFabric Advanced SW License for CloudEngine 8800-SnS-Year
N1-CE88LIC-CFPM N1-CloudFabric Premium SW License for CloudEngine 8800
N1-CE88CFPM-SnS1Y N1-CloudFabric Premium SW License for CloudEngine 8800 -SnS-Year
N1-CE-F-LIC-MDCA N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package - Fixed
N1-CEFMDCA -SnS1Y N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package, Per Fixed device -SnS-Year

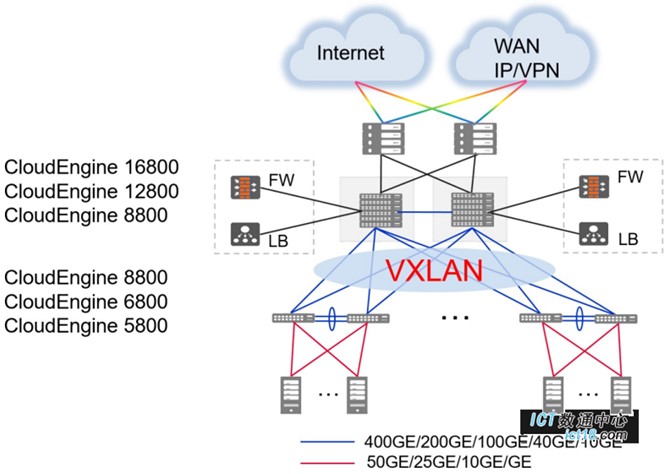

Huawei CloudEngine 8851-32CQ8DQ-K Networking and Applications

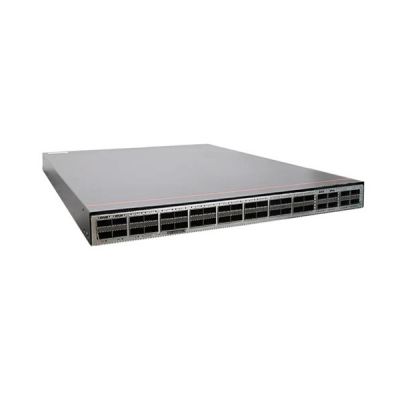

CloudEngine 8851-32CQ8DQ-K Huawei CE8800 Switches 32*100GE QSFP28, 8*400GE QSFPDD without fan and power module YCICT
