CloudEngine S6730-H28Y4C-K
1985.95

CloudEngine S6730-H28Y4C-K

$1,985.95

next-generation enterprise-class core and aggregation switch with 28 x 25 Gig SFP28, 4 x 100 Gig QSFP28 and Dual pluggable power modules, 1+1 power backup

- +
Availability:In stock
SKU Huawei CloudEngine S6730-H28Y4C-K
Brand Huawei
Details

Huawei CloudEngine S6730-H28Y4C-K is a next-generation enterprise-class core and aggregation switch, which offers high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). The product builds on an industry-leading Versatile Routing Platform (VRP) and are purpose-built with security, IoT, and cloud in mind. With these traits, CloudEngine S6730-H can be widely used in enterprise campuses, colleges/universities, data centers, and other scenarios. Meanwhile, S6730-H switches offer 10GE, 25GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.
Moreover, S6730-H switches support VXLAN to implement network virtualization, achieving multi-purpose networks and multi-network convergence for greatly improved network capacity and utilization. As such, S6730-H switches are an ideal choice for building next-generation IoT converged networks in terms of cost, flexibility, and scalability.

S6730-H28Y4C-K Huawei S6730-H Series 25 GE Switches 28 x 25GE SFP28, 4 x 100GE QSFP28, excluding power supply YCICT

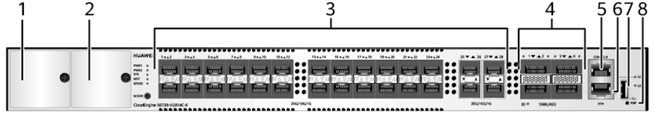

1, Power module slot 1 2, Power module slot 2
3, Twenty-eight 1GE/10GE/25GE SFP28 optical ports 4, Four 40GE/100GE QSFP28 optical ports
5, One console port 6, One ETH management port
7, One USB port 8, One PNP button

Huawei CloudEngine S6730-H28Y4C-K Specifications

Item Specifications
Model S6730-H28Y4C-K
Description 28 x 25GE SFP28, 4 x 100GE QSFP28, excluding power supply
Part No 02353UXU
Starting Supported Version V200R020C00
Dimensions (Width x Depth x Height, including packaging) [mm] 545.0mm×360.0mm×115.0mm
Chassis height [U] 1U
Chassis material Metal
Weight (excluding packaging) [kg] 3.4kg
Weight (including packaging) [kg] 4.65kg
Typical power consumption [W] 186W
Typical thermal value [BTU/hour] 634.65BTU/hour
Maximum power consumption [W] 253W
Maximum thermal value [BTU/hour] 863.26BTU/hour
Static power consumption [W] 116W
MTBF [years] 54.68years
Availability > 0.99999
Ambient noise (sound power) [dB(A)] 64.5dB(A)
Ambient noise (sound pressure) [dB(A)] 51.7dB(A)
Number of expansion slots 0
Number of power slots 2
Number of fan modules 3
Power Redundancy 1+1 Support the simultaneous configuration of pluggable AC and DC power modules on the same device.
Long-term operating ambient temperature [°C] -5°C to 45°C (0m to 1800m elevation)
Storage temperature [°C] -40°C+70°C
Long-term operating ambient relative humidity [RH] 5%RH to 95%RH, non-condensing
Long-term operating altitude [m] 0m5000m
Storage altitude [m] 0m5000m
Power supply system Pluggable power supply
Rated input voltage [V] Input: 100V AC to 240V AC; 50/60Hz High voltage DC input: 240V DC DC input: -48V DC to -60V DC
Input voltage range [V] Communication input: 90V AC to 290V AC; 45Hz to 65HzHigh voltage DC input: 190V DC to 290V DCDC input: -38.4V DC to -72V DC
Maximum input current [A] The current specifications are related to the use of the pluggable power module, for details see the pluggable power module.
Memory 4GB
Flash Physical space 2GB, actual available space can be checked using the display version command
Console interface type RJ45
Eth management network interface type RJ45
USB interface Supported
Real-time clock (RTC) Supported
RPS input Not supported
Service port lightning protection [kV] -
Power port lightning protection [kV] Configure the AC power supply module: differential mode ±6kV, common mode ±6kVConfigure the DC power supply module: differential mode ±2kV, common mode ±4kV
Three defenses (dustproof/waterproof) IP20
Fan type Built-in fan
Cooling method Air cooling, intelligent speed adjustment
Airflow direction Left front air intake, right air exhaust
PoE function Not supported
Product certification Supports EMC certification
Supports safety certification
Supports production certification
Size (Width x Depth x Height, excluding packaging materials) [mm] Basic dimensions (depth without including the protruding structural components of the front and rear panels): 442.0mm × 220.0mm × 43.6mm Maximum dimensions (depth from the protruding ports of the front panel to the maximum distance of the protruding structural components of the rear panel): 442.0mm × 231.0mm × 43.6mm
Operating ambient temperature variation limit [°C] 1800m5000mFor every 220 meters increase in altitude, the maximum temperature specification decreases by 1°C.The device does not support starting when the ambient temperature is below 0°C. The operating temperature is -5°C to 40°C when optional QSFP-100G-ER4 and QSFP-100G-LR1 optical modules are used.

Huawei CloudEngine S6730-H28Y4C-K Features

l  S6730-H provides the integrated WLAN AC function that can manage 1K APs, reducing the costs of purchasing additional WLAN AC hardware. The wireless forwarding performance reaches up to 668 Gbit/s, breaking the forwarding performance bottleneck of an external WLAN AC. With this switch series, customers can stay ahead in the highspeed wireless era.

l  S6730-H uses the Packet Conservation Algorithm for Internet (iPCA) technology that changes the traditional method of using simulated traffic for fault location. iPCA technology can monitor network quality for any service flow anywhere, anytime, without extra costs. It can detect temporary service interruptions in a very short time and can identify faulty ports accurately. This cutting-edge fault detection technology turns "extensive management" to "fine granular management."

l  S6730-H supports the iStack function that combines multiple switches into a logical switch. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to improve link reliability. iStack provides high network scalability. You can increase a stack's ports, bandwidth, and processing capability by simply adding member switches. iStack also simplifies device configuration and management. After a stack is set up, multiple physical switches can be virtualized into one logical device. You can log in to any member switch in the stack to manage all the member switches in it.

Huawei CloudEngine S6730-H28Y4C-K Ordering Info

CloudEngine S6730H28Y4C S6730-H28Y4C (28*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module)
CloudEngine S6730H24X4Y4C S6730-H24X4Y4C (24*10GE SFP+ ports, 4*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module)
PAC300S12-CL 300W AC power module
PDC260S12-DL 260W DC power module
N1-S67H-M-Lic S67XX-H Series Basic SW,Per Device
N1-S67H-M-SnS1Y S67XX-H Series Basic SW,SnS,Per Device,1Year
L-VxLAN-S67 S67 Series, VxLAN License, Per Device
L-1AP-S67 S67 Series, Wireless Access Controller AP Resource License-1AP
N1-S67H-F-Lic N1-CloudCampus,Foundation,S67XX-H Series,Per Device
N1-S67H-F-SnS N1-CloudCampus,Foundation,S67XX-H Series,SnS,Per Device
N1-S67H-A-Lic N1-CloudCampus,Advanced,S67XX-H Series,Per Device
N1-S67H-A-SnS N1-CloudCampus,Advanced,S67XX-H Series,SnS,Per Device
N1-S67H-FToA-Lic N1-Upgrade-Foundation to Advanced,S67XX-H,Per Device
N1-S67H-FToA-SnS N1-Upgrade-Foundation to Advanced,S67XX-H,SnS,Per Device
N1-AM-30-Lic N1-CloudCampus, Add-On Package, Access Management, Per 30 Endpoints
N1-AM-30-SnS1Y N1-CloudCampus, Add-On Package, Access Management, Software Subscription and Support, Per 30 Endpoints, 1 Year
N1-EPNP-30-Lic N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Per 30 Endpoints
N1-EPNP-30-SnS1Y N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Software Subscription and Support, Per 30 Endpoints, 1 Year
N1-APP-X7FSwitch N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Per
Device
N1-APP-X7FSwitchSnS1Y N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Software Subscription and Support, Per Device, 1 Year

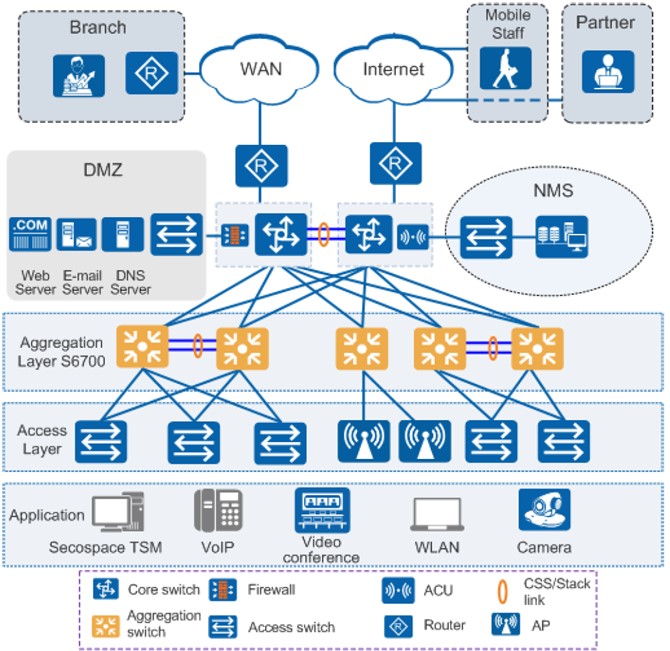

Huawei CloudEngine S6730-H28Y4C-K Networking and Applications

S6730-H28Y4C-K Huawei S6730-H Series 25 GE Switches 28 x 25GE SFP28, 4 x 100GE QSFP28, S6700 Series Switch YCICT
