CloudEngine S6730-H24X4Y4C
3098.17
Details
CloudEngine S6730-H24X4Y4C is a next generation enterprise class core and aggregation switches that offer high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). The product builds on an industry leading Versatile Routing Platform (VRP) and are purpose built with security, IoT, and cloud in mind. With these traits, S6730 H can be widely used in enterprise campuses, colleges/un iversities, data centers, and other scenarios.
In addition, S6730 H switches support VXLAN to implement network virtualization, achieving multi purpose networks and multi network convergence for greatly improved network capacity and utilization. As such, CloudEngine S6730 H switches are an ideal choice for building next generation IoT converged networks in terms of cost, flexibility, and scalabili ty. The full series of CloudEngine S6730 H switches have built in security probes to enable abnormal traffic detection, analysis of threats even in encrypted traffic, and network wide threat deception. With such robust security features, S6730 H switches transform traditional passive security defense into proactive security protection, fully ensuring campus network sec urity.

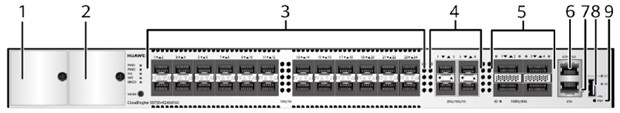

| 1 Power module slot 1 | 2 Power module slot 2 |
| Applicable power modules: PDC260S12-DL (260 W DC Power Module) PAC300S12-CL (300 W AC&240 V DC Power Module) |
Applicable power modules: PDC260S12-DL (260 W DC Power Module) PAC300S12-CL (300 W AC&240 V DC Power Module) |
| 3 Twenty-four 10GE SFP+ ports | 4 Four 1GE/10GE/25GE SFP28 optical ports |
| 5 Four 40GE/100GE QSFP28 optical ports | 6 One console port |
| 7 One ETH management port | 8 One USB port |
| 9 One PNP button | Ground screw |
Huawei CloudEngine S6730-H24X4Y4C Specifications
| Item | Specification |
| Model | S6730-H24X4Y4C |
| Description | S6730-H24X4Y4C (24*10GE SFP+ ports, 4*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module) |
| Part Number | 02353NRD 02353NRD-002 02353NRD-003 |
| First supported version | V200R020C00 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 115.0 mm x 545.0 mm x 360.0 mm (4.53 in. x 21.46 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.4 kg (7.5 lb) |
| Weight with packaging [kg(lb)] | 4.65 kg (10.25 lb) |
| Typical power consumption [W] | 186 W |
| Typical heat dissipation [BTU/hour] | 634.65 BTU/hour |
| Maximum power consumption [W] | 253 W |
| Maximum heat dissipation [BTU/hour] | 863.26 BTU/hour |
| Static power consumption [W] | 116 W |
| MTBF [years] | 54.68 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 64.5 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 51.7 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 3 |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together in the same switch. | |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz |
| High-voltage DC input: 240 V DC | |
| DC input: –48 V DC to –60 V DC | |
| Input voltage range [V] | AC input: 90–290 V AC; 45–65 Hz |
| High-voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | - |
| Power supply surge protection [kV] | AC power module configured: ±6 kV in differential mode, ±6 kV in common mode |
| DC power module configured: ±2 kV in differential mode, ±4 kV in common mode | |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.) |
Huawei CloudEngine S6730-H24X4Y4C Features
l Providing Granular Network Management
S6730-H series uses the Packet Conservation Algorithm for Internet (iPCA) technology that alters the traditional method of using simulated traffic for fault location. iPCA technology can monitor network quality for any service flow anywhere, anytime, without extra costs. It can detect temporary service interruptions in a very short time and can identify faulty ports accurately. This cutting-edge fault detection technology turns "extensive management" to "granular management."
l Flexible Ethernet Networking
S6730-H supports Huawei-developed Smart Ethernet Protection (SEP) technology and the latest Ethernet Ring Protection Switching (ERPS) standard. SEP is a ring protection protocol specific to the Ethernet link layer, and applies to various ring network topologies, such as open ring topology, closed ring topology, and cascading ring topology. This protocol is reliable, easy to maintain, and implements fast service switching within 50 milliseconds. ERPS is defined in ITUT G.8032. It implements millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.
l Intelligent Stack (iStack)
S6730-H series supports the iStack function that combines multiple switches into a logical switch. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to improve link reliability. iStack provides high network scalability. You can increase a stack's ports, bandwidth, and processing capability by simply adding member switches. iStack also simplifies device configuration and management. After a stack is set up, multiple physical switches can be virtualized into one logical device. You can log in to any member switch in the stack to manage all the member switches in it.
Huawei CloudEngine S6730-H24X4Y4C Ordering Info
| CloudEngine S6730H28Y4C | S6730-H28Y4C (28*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module) |
| CloudEngine S6730H24X4Y4C | S6730-H24X4Y4C (24*10GE SFP+ ports, 4*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module) |
| PAC300S12-CL | 300W AC power module |
| PDC260S12-DL | 260W DC power module |
| N1-S67H-M-Lic | S67XX-H Series Basic SW,Per Device |
| N1-S67H-M-SnS1Y | S67XX-H Series Basic SW,SnS,Per Device,1Year |
| L-VxLAN-S67 | S67 Series, VxLAN License, Per Device |
| L-1AP-S67 | S67 Series, Wireless Access Controller AP Resource License-1AP |
| N1-S67H-F-Lic | N1-CloudCampus,Foundation,S67XX-H Series,Per Device |
| N1-S67H-F-SnS | N1-CloudCampus,Foundation,S67XX-H Series,SnS,Per Device |
| N1-S67H-A-Lic | N1-CloudCampus,Advanced,S67XX-H Series,Per Device |
| N1-S67H-A-SnS | N1-CloudCampus,Advanced,S67XX-H Series,SnS,Per Device |
| N1-S67H-FToA-Lic | N1-Upgrade-Foundation to Advanced,S67XX-H,Per Device |
| N1-S67H-FToA-SnS | N1-Upgrade-Foundation to Advanced,S67XX-H,SnS,Per Device |
| N1-AM-30-Lic | N1-CloudCampus, Add-On Package, Access Management, Per 30 Endpoints |
| N1-AM-30-SnS1Y | N1-CloudCampus, Add-On Package, Access Management, Software Subscription and Support, Per 30 Endpoints, 1 Year |
| N1-EPNP-30-Lic | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Per 30 Endpoints |
| N1-EPNP-30-SnS1Y | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Software Subscription and Support, Per 30 Endpoints, 1 Year |
| N1-APP-X7FSwitch | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Per |
| Device | |
| N1-APP-X7FSwitchSnS1Y | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Software Subscription and Support, Per Device, 1 Year |

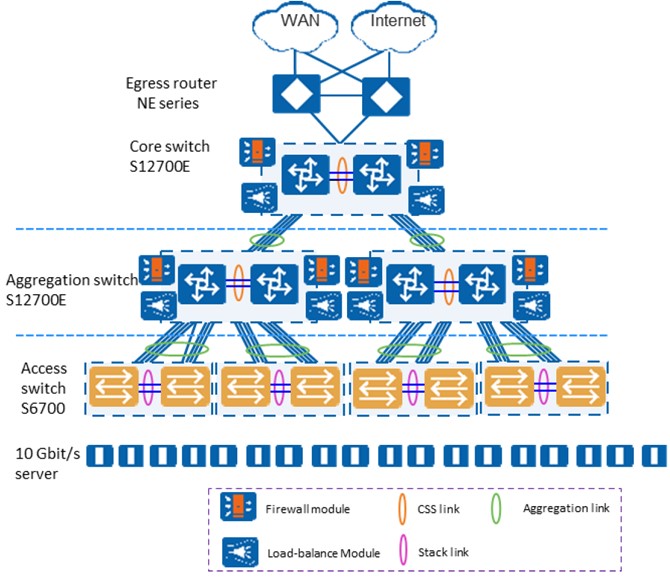

Huawei CloudEngine S6730-H24X4Y4C Networking and Applications
