S6700-48-EI
5012.62

S6700-48-EI

$5,012.62

next-generation 10G box switch with Forty-eight GE SFP or 10 GE SFP+ ports and Double swappable AC/DC power supplies

- +
Availability:In stock
SKU Huawei S6700-48-EI
Brand Huawei
Details

Huawei S6700-48-EI is a next-generation 10G box switch. it can function as an access switch in an Internet data center (IDC) or a core switch on a campus network. S6700 has industry-leading performance and provides up to 24 or 48 line-speed 10GE ports. In addition, S6700-48-EI provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or users. DoS attack types include SYN Flood attacks, Land attacks, Smurf attacks, and ICMP Flood attacks. Attacks to networks refer to STP BPDU/root attacks. Attacks to users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoS attacks that change the CHADDR field in DHCP packets are also attacks against users. S6700 Series Switch can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 10 Gbit/s traffic aggregation.

S6700-48-EI Huawei S6700 Series Switches Part No 02352767 Forty-eight GE SFP or 10 GE SFP+ ports YCICT

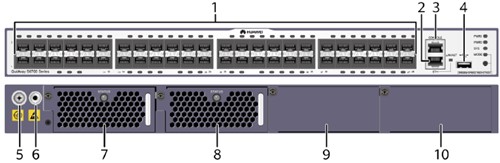

1, Forty-eight 10GE SFP+ ports 2, One ETH management port
3, One console port 4, One USB port
5, Ground screw 6, ESD jack
7, Fan slot 2 8, Fan slot 1
9, Power module slot 2 10, Power module slot 1

Huawei S6700-48-EI Specifications

Item Description
Part number 2352767
Description Forty-eight GE SFP or 10 GE SFP+ ports
Memory (RAM) 512 MB
Flash 64 MB
Mean time between failures (MTBF) 33.76
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection NA
Power supply surge protection Using AC power modules: ±2 kV in differential mode, ±4 kV in common mode
Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Weight Empty: 5 kg (11.02 lb)
Fully configured: 8.5 kg (18.74 lb)
Stack ports Any 10GE SFP+ ports (a maximum of eight physical ports)
RPS Not supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
-38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) 240 W
Operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 55 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification

Huawei S6700-48-EI Features

l  S6700 supports strict ARP learning, which prevents ARP spoofing attacks that exhaust ARP entries. The S6700 also provides an IP source check to prevent DoS attacks caused by MAC address spoofing, IP address spoofing, and MAC/IP spoofing. URPF, provided by the S6700, authenticates packets by checking the packet transmission path in reverse, which can protect the network against source address spoofing attacks.

l  S6700 supports MSTP multi-process that enhances the existing STP, RSTP, and MSTP implementation. This function increases the number of MSTPs supported on a network. It also supports enhanced Ethernet reliability technologies such as Smart Link and RRPP, which implement millisecond-level protection switchover and ensure network reliability. Smart Link and RRPP both support multi-instance to implement load balancing among links, optimizing bandwidth usage.

l  S6700 supports SNMP v1/v2c/v3 and provides flexible methods for managing devices. Users can manage the S6700 using the CLI and Web NMS. The NQA function assists users with network planning and upgrades. In addition, the S6700 supports NTP, SSH v2, HWTACACS, RMON, log hosts, and portbased traffic statistics.

Huawei S6700-48-EI Ordering Info

S6700-24-EI Mainframe (24 10GE SFP+,Dual Slots of power,Without Power Module)
S6700-48-EI Mainframe (48 10GE SFP+, Dual Slots of power,Without Power Module)
500W AC Power Module
500W DC Power Module

Huawei S6700-48-EI Networking and Applications

S6700-48-EI Huawei S6700 Series Switches Part No 02352767 Forty-eight GE SFP or 10 GE SFP+ ports low cost YCICT
