S6720-54C-EI-48S-AC
2399.69
Details

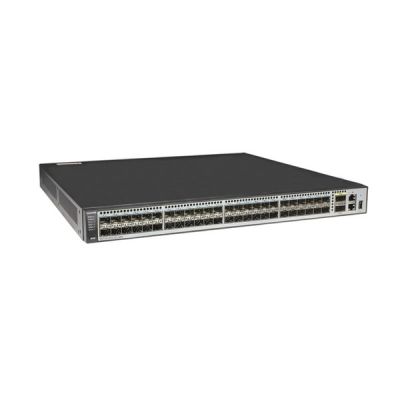

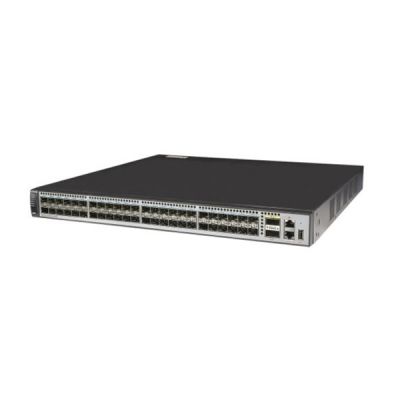

Huawei S6720-54C-EI-48S-AC is a next-generation 10GE fixed switch with 48 10GE SFP+ ports, 2 40GE QSFP+ ports, One extended slot and Double hot swappable AC power supplies. S6720-EI has industry-leading performance and provides line-speed 10GE access ports and 40GE uplink ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 10 Gbit/s traffic aggregation. Moreover, Huawei cloud management platform allows users to configure, monitor, and inspect switches on the cloud, reducing on-site deployment and O&M manpower costs and decreasing network OPEX. Huawei switches support both cloud management and on-premise management modes. These two management modes can be flexibly switched as required to achieve smooth evolution while maximizing return on investment (ROI).
| 1, Forty-eight 10GE SFP+ ports | 2, Two 40GE QSFP+ ports |
| 3, One ETH management port | 4, One console port |
| 5, One USB port | 6, Ground screw |
| 7, ESN label | 8, Rear card slo |
| 9, Fan slot | 10, Power module slot 2 |
| 11, Power module slot 1 |
Huawei S6720-54C-EI-48S-AC Specifications
| Item | Description |
| Part number | 02350DMP |
| Model | S6720-54C-EI-48S-AC |
| Details | 48 10GE SFP+ ports, 2 40GE QSFP+ ports |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 79.39 years (without card) |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) | |
| Weight (with packaging) | 10.2 kg (22.49 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE QSFP+ ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 296.1 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 190 W (without card) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 72.1 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S6720-54C-EI-48S-AC Features
l S6720-EI provides telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer CampusInsight. The CampusInsight analyzes network data based on the intelligent fault identification algorithm, accurately displays the real-time network status, effectively demarcates and locates faults in a timely manner, and identifies network problems that affect user experience, accurately guaranteeing user experience.
l S6720-EI supports a variety of intelligent O&M features for audio and video services, including the enhanced Media Delivery Index (eMDI). With this eDMI function, the S6720-EI can function as a monitored node to periodically conduct statistics and report audio and video service indicators to the CampusInsight platform. In this way, the CampusInsight platform can quickly demarcate audio and video service quality faults based on the results of multiple monitored nodes.
l S6720-EI supports IPv4/IPv6 dual stack and can migrate from an IPv4 network to an IPv6 network. S6720-EI hardware supports IPv4/IPv6 dual stack, IPv6 over IPv4 tunnels (including manual tunnels, 6to4 tunnels, and ISATAP tunnels), and Layer 3 line-speed forwarding. The S6720-EI can be deployed on IPv4 networks, IPv6 networks, or networks that run both IPv4 and IPv6. This makes networking flexible and enables a network to migrate from IPv4 to IPv6.
Huawei S6720-54C-EI-48S-AC Ordering Info
| Item | Product Description |
| 1 | S6720-30C-EI-24S-AC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 600W AC power supply) |
| 2 | S6720-54C-EI-48S-AC bundle (48×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 600W AC power supply) |
| 3 | S6720-30C-EI-24S-DC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 350W DC power supply) |
| 4 | S6720-54C-EI-48S-DC bundle (48×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 350W DC power supply) |
| 5 | S6720S-26Q-EI-24S-AC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 170W AC power supply) |
| 6 | 4× 40GE QSFP+ interface card (used in S6720EI series) |
| 7 | 8× 10GE SFP+ interface card (used in S6720EI series) |
| 8 | Fan box (B, FAN panel side exhaust) |
| 9 | 600W AC power module |
| 10 | 350W DC power module |
| 11 | 170W AC power module |
| 12 | 170W DC power module |

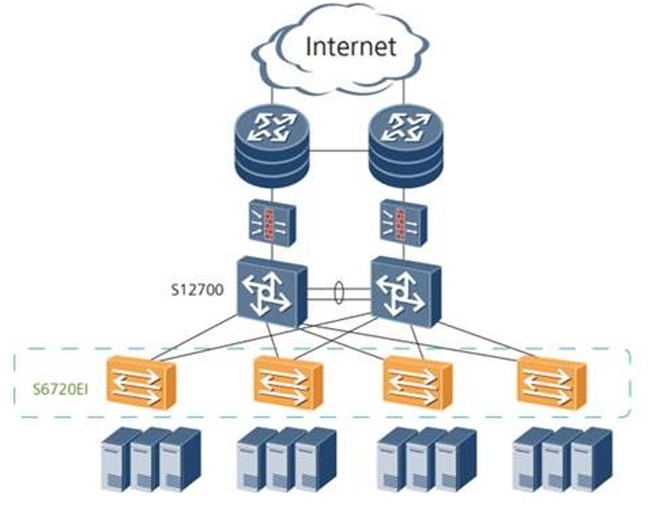

Huawei S6720-54C-EI-48S-AC Networking and Applications
