CloudEngine S6730-H28Y4C
1988.15
Details
Huawei CloudEngine S6730-H28Y4C is a next generation enterprise-class core and aggregation switches, featuring exceptional performance and reliability, cloud management, and intelligent Operations and Maintenance (O&M). Based on the industry-leading Versatile Routing Platform (VRP) and purpose-built with security, Internet of Things (IoT), and cloud in mind, the series is applicable to a range of scenarios, including enterprise campuses, colleges and universities, and data centers.
Additionally, S6730-H switches support VXLAN to implement network virtualization, achieving multi-purpose networks and multi-network convergence for greatly improved network capacity and utilization. As such, S6730-H28Y4C is an ideal choice for building next-generation IoT converged networks in terms of cost, flexibility, and scalability.

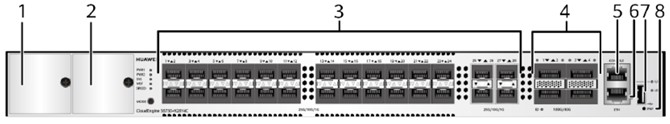

| 1, Power module slot 1 | 2, Power module slot 2 |
| 3, Twenty-eight 1GE/10GE/25GE SFP28 optical ports | 4, Four 40GE/100GE QSFP28 optical ports |
| 5, One console port | 6, One ETH management port |
| 7, One USB port | 8, One PNP button |
Huawei CloudEngine S6730-H28Y4C Specifications
| Item | Specification |
| Description | S6730-H28Y4C (28*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module) |
| Part Number | 02353LGV 02353LGV-002 02353LGV-003 |
| Model | S6730-H28Y4C |
| First supported version | V200R020C00 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 115.0 mm x 545.0 mm x 360.0 mm (4.53 in. x 21.46 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 3.4 kg (7.5 lb) |
| Weight with packaging [kg(lb)] | 4.65 kg (10.25 lb) |
| Typical power consumption [W] | 186 W |
| Typical heat dissipation [BTU/hour] | 634.65 BTU/hour |
| Maximum power consumption [W] | 253 W |
| Maximum heat dissipation [BTU/hour] | 863.26 BTU/hour |
| Static power consumption [W] | 116 W |
| MTBF [years] | 54.68 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 64.5 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 51.7 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 3 |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together in the same switch. | |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz |
| High-voltage DC input: 240 V DC | |
| DC input: –48 V DC to –60 V DC | |
| Input voltage range [V] | AC input: 90–290 V AC; 45–65 Hz |
| High-voltage DC input: 190 V DC to 290 V DC | |
| DC input: -38.4 V DC to -72 V DC | |
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 4 GB |
| Flash memory | 2 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | - |
| Power supply surge protection [kV] | AC power module configured: ±6 kV in differential mode, ±6 kV in common mode |
| DC power module configured: ±2 kV in differential mode, ±4 kV in common mode | |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification | |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.40 in. x 9.09 in.) | |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| The device cannot start when the temperature is lower than 0°C (32°F). | |
| When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). |
Huawei CloudEngine S6730-H28Y4C Features
l Supports Smart Link and Virtual Router Redundancy Protocol (VRRP), which implement backup of uplinks. One CloudEngine S6730-H switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.
l Support the intelligent upgrade feature. Specifically, switches obtain the version upgrade path and download the newest version for upgrade from the Huawei Online Upgrade Platform (HOUP). The entire upgrade process is highly automated and achieves one-click upgrade. In addition, preloading the version is supported, which greatly shortens the upgrade time and service interruption time.
l Provides telemetry technology to collect device data in real time and send the data to Huawei campus network analyzer(iMaster NCE-CampusInsight). The CampusInsight analyzes network data based on the intelligent fault identification algorithm, accurately displays the real-time network status, effectively demarcates and locates faults in a timely manner, and identifies network problems that affect user experience, accurately guaranteeing user experience.
Huawei CloudEngine S6730-H28Y4C Ordering Info
| CloudEngine S6730H28Y4C | S6730-H28Y4C (28*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module) |
| CloudEngine S6730H24X4Y4C | S6730-H24X4Y4C (24*10GE SFP+ ports, 4*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module) |
| PAC300S12-CL | 300W AC power module |
| PDC260S12-DL | 260W DC power module |
| N1-S67H-M-Lic | S67XX-H Series Basic SW,Per Device |
| N1-S67H-M-SnS1Y | S67XX-H Series Basic SW,SnS,Per Device,1Year |
| L-VxLAN-S67 | S67 Series, VxLAN License, Per Device |
| L-1AP-S67 | S67 Series, Wireless Access Controller AP Resource License-1AP |
| N1-S67H-F-Lic | N1-CloudCampus,Foundation,S67XX-H Series,Per Device |
| N1-S67H-F-SnS | N1-CloudCampus,Foundation,S67XX-H Series,SnS,Per Device |
| N1-S67H-A-Lic | N1-CloudCampus,Advanced,S67XX-H Series,Per Device |
| N1-S67H-A-SnS | N1-CloudCampus,Advanced,S67XX-H Series,SnS,Per Device |
| N1-S67H-FToA-Lic | N1-Upgrade-Foundation to Advanced,S67XX-H,Per Device |
| N1-S67H-FToA-SnS | N1-Upgrade-Foundation to Advanced,S67XX-H,SnS,Per Device |
| N1-AM-30-Lic | N1-CloudCampus, Add-On Package, Access Management, Per 30 Endpoints |
| N1-AM-30-SnS1Y | N1-CloudCampus, Add-On Package, Access Management, Software Subscription and Support, Per 30 Endpoints, 1 Year |
| N1-EPNP-30-Lic | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Per 30 Endpoints |
| N1-EPNP-30-SnS1Y | N1-CloudCampus, Add-On Package, Endpoints Plug and Play, Software Subscription and Support, Per 30 Endpoints, 1 Year |
| N1-APP-X7FSwitch | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Per |
| Device | |
| N1-APP-X7FSwitchSnS1Y | N1-CloudCampus, Add-On Package, Intelligent Application Analysis, X7 Series Fixed Switch, Software Subscription and Support, Per Device, 1 Year |

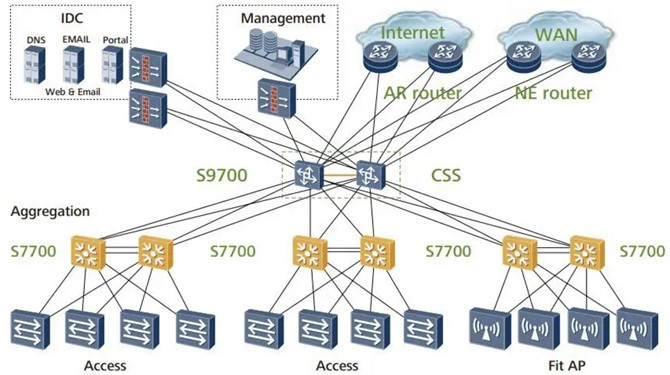

Huawei CloudEngine S6730-H28Y4C Networking and Applications
