XLG-75-L
25.11

XLG-75-L

$25.11

Meanwell 75W Constant Voltage and Constant Current LED Driver with 700mA74.9W53-107V700-1050mA115V350-1050mA3.0% (@rated current)±5.0%

- +
Availability:In stock
SKU Meanwell XLG-75-L
Brand Meanwell
Details

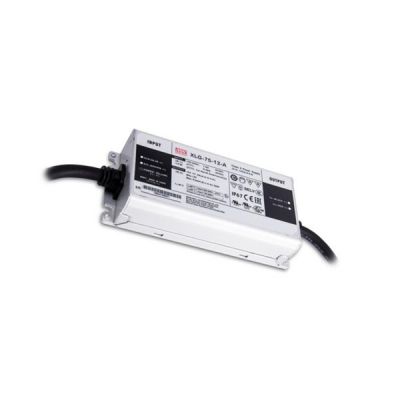

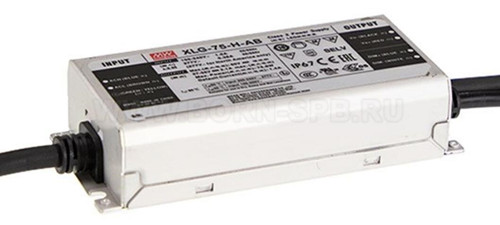

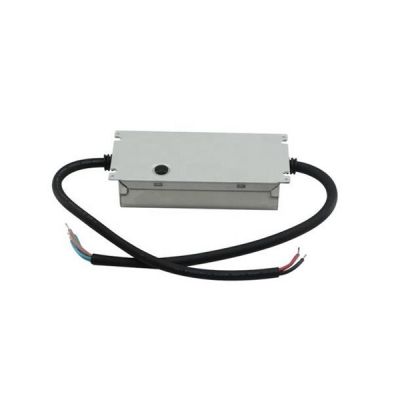

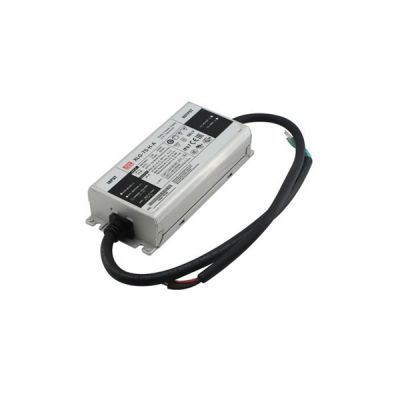

Meanwell XLG-75-L is 75W LED AC/DC driver with 700mA74.9W53-107V700-1050mA115V350-1050mA3.0% (@rated current) ±5.0%. It stands out with constant power mode working from 100~305VAC with rated current ranging between 700mA and 5000mA. As the efficiency reaches high up to 91% with no fan design, XLG-75-L is able to operate for-40℃ ~+90℃ case temperature via free air convection. At the same time, the metal housing design and IP67 ingress protection level make the product to fit both indoor and outdoor applications. The innovative environment-adaptive capability allows it to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires globally. In addition, XLG-75-L complies with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation. In light of its longevity, high efficiency and excellent reliability, Meanwell XLG-75-L is an ideally suitable solution for the optimal design flexibility for LED lighting system.

Meanwell XLG-75-L price and specs Constant Power Mode AC/DC LED Driver XLG-75-L XLG-75-H Metal case IP67 75W ycict

Meanwell XLG-75-L Encoding

XLG Series Name
75 Rated  Wattage
I I: for India version ( by request with input over voltage protction)
: For standard version
L Rated output voltage ( 12/24V or L/H types)
Functions options
Blanks lo and Vo fixed. (For harsh envirenment)
A lo adjustable via built-in potentiometer
AB lo adjustable via built-in potentiometer + 3 in 1 dimming function (O~1OVdc, 10V PWM signal and resistance)

Meanwell XLG-75-L Specifications

Model XLG-75-L-
OUTPUT RATED CURRENT (Default) 700mA
RATED POWER 74.9W
CONSTANT CURRENT REGION 53-107V
FULL POWER CURRENT RANGE 700-1050mA
OPEN CIRCUIT VOLTAGE (max.) 115V
CURRENT ADJ. RANGE 350-1050mA
CURRENT RIPPLE 3.0% (@rated current)
CURRENT TOLERANCE ±5.0%
SET UP TIME 500ms/230VAC, 1200ms/115VAC
Input VOLTAGE RANGE 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC@full load
TOTAL HARMONIC DISTORTION THD< 10%(@load>=50%/115VC,230VAC; @load>=75%/277VAC)
EFFICIENCY (Typ.) 91.00%
AC CURRENT 1A / 115VAC 0.45A / 230VAC 0.38A / 277VAC
INRUSH CURRENT(Typ.) COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 9 unit(circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
STANDBY POWER CONSUMPTION Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version)
PROTECTION OVER POWER 110 ~ 150%
Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
INPUT OVER VOLTAGE 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed
Can survive input voltage stress of 440Vac for 48 hours @ tc 75 max
OVER TEMPERATURE Shut down output voltage, re-power on to recovery
ENVIRONMENT WORKING TEMP Tcase=-40 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP Tcase=+90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 60)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 GB19510.1,GB19510.14; EAC TP TC 004;J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)
(for XLG-75I type only); NOM-058-SCFI-2017(except for Blank type);IP67 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN61547
Others MTBF 3404.7K hrs min. Telcordia SR-332 (Bellcore) ; 276.3Khrs min. MIL-HDBK-217F (25)
DIMENSION 140*63*32mm (L*W*H)
PACKING 0.58Kg;24pcs /15Kg /0.85CUFT

Meanwell XLG-75-L Features

l  Wide input range 100~305V AC (Class I)

l  Full power output at 70~ 100% Constant power mode operation

l  Metal case with IP67, suitable for outdoor application

l  Class 2 power unit (except for L type)

l  Surge protection with 6KV/4KV

l  Protection functions: OVP/SCP/OCP/OTP

l  Life time >50,000 hrs. and 5 years warranty

l  3 in 1 dimming function (Dim to off and Isolation design)

l  India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours

Meanwell XLG-75-L price and specs 75W Constant Power Mode AC/DC LED Driver XLG-75-L XLG-75-H Metal case with IP67 ycict

Meanwell XLG-75-L Applications

l  Skyscraper lighting

l  Street lighting

l  Floodlight Lighting

l  Stage lighting

l  Fishing lighting

l  Horticulture lighting

l  Bay lighting

l  DMX power supply

l  Type HL for use in class I , Division 2
