HEP-150
68.12

HEP-150

As low as $68.12

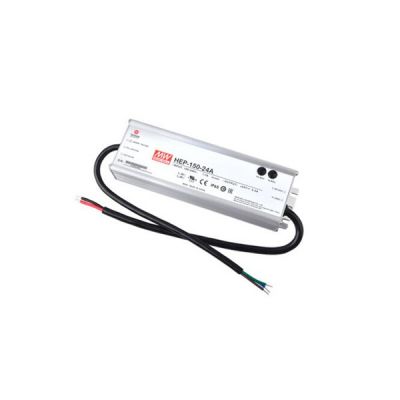

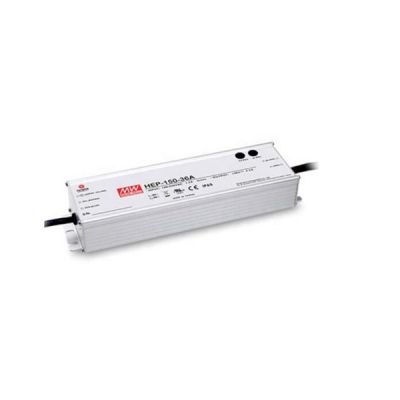

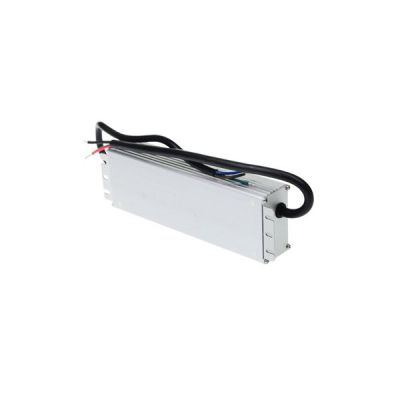

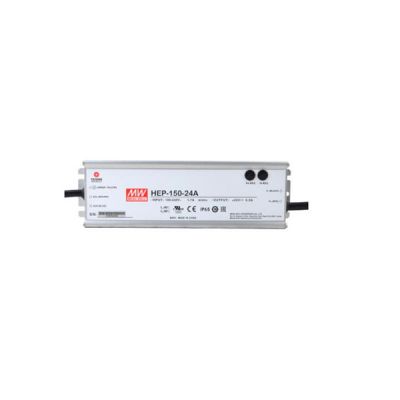

Meanwell 150W Switching Power Supply for Harsh Environments

- +
Availability:In stock
SKU Meanwell HEP-150
Brand Meanwell
Details

Meanwell HEP-150 Series is a 150W industrial AC/DC power supply. The entire series features the outstanding capability to work under highly humid, dusty, oily, and high-vibration harsh environment. Since it is housed with the aluminum case and fully potted with heat-conducted silicone, HEP-150 series could meet 6KV surge immunity level, withstand 10G vibration test and operate up to 5000 meters cooling by free air convection. Apart from them, the series provides the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Based on the state-of-the-art design, the working efficiency can reach up to 94%, enabling HEP-150 perfectly work between -55 ℃ and +70 ℃ under free air convection. Considering its high reliability, excellent quality and long life, Meanwell HEP-150 Series is ideal to use for critical conditions.

Meanwell HEP-150 Series Mechanical daigram ycict

Meanwell HEP-150 Series Encoding

HEP Series Name
150 Rated Wattage
12 Output Voltage
A Function Mode Option A : Standard model, IP65, Vo and Io level can be adjusted through internal potentiometer.
Blank : Optional model, IP68, with fixed Vo and lo level.

Meanwell HEP-150 Series Model Specifications

Model HEP-150-12 HEP-150-15 HEP-150-24 HEP-150-36 HEP-150-48 HEP-150-54
OUTPUT DC VOLTAGE 12V 15V 24V 36V 48V 54V
RATED CURRENT 12.5A 10A 6.3A 4.2A 3.2A 2.8A
RATED POWER 150W 150W 151.2W 151.2W 153.6W 151.2W
RIPPLE & NOISE (max.) 150mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p 200mVp-p
VOLTAGE ADJ. RANGE 10.8-13.5V 13.5-17V 22-27V 33-40V 43-53V 49-58V
CURRENT ADJ. RANGE Can be adjusted by internal potentiometer for A type only
7.5-12.5A 6-10A 3.8-6.3A 2.5-4.2A 1.92-3.2A 1.68-2.8A
VOLTAGE TOL ERANCE  ±2.5% ±2% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGUL .ATION ±2% ±1.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1000ms,50ms/115VAC 500ms,50ms/230VAC at full load
HOLD UP TIME (Typ.) 16ms at full load 230VAC /115VAC
INPUT VOLTAGE RANGE 85~264VAC (277VAC operational) 120~370VDC(390VDC operational)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load
EFFICIENCY (Typ.) 91.5% 92% 93% 93.5% 94% 94%
AC CURRENT (Typ.) 1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.) COLD START 65A at 230VAC
LEAKAGE CURRENT <0.75mA / 277VAC
PROTECTION OVER LOAD 105 ~ 125%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 14-17V 18-21V 28-34V 41-46V 54-63V 59-65V
Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -55 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -60 ~ +80, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 60)
VIBRATION 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS Note.6,9 UL62368-1, IEC62368-1,IP65 (or IP68 for HEP-150 Blank type), EAC TP TC 004 approved ;Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level (surge 6KV),criteria A, EAC TP TC 020
OTHERS MTBF 164.1K hrs min. MIL-HDBK-217F (25)
DIMENSION 228*68*38.8mm (L*W*H)
PACKING 1.15Kg; 12pcs/14.8Kg/0.8CUFT

Meanwell HEP-150 Series Features

l  Universal AC input / Full range (up to 305VAC)

l  Built-in active PFC function

l  High efficiency up to 94%

l  Fanless design, cooling by free air convection

l  -55℃~+70℃ wide operating range

l  Aluminum case and filling with heat-conducted silicone

l  IP65 design, optional IP68 rated model available

l  Meet 6KV surge immunity level

l  Withstand 10G vibration test

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Operating altitude up to 5000 meters

l  6 years warranty

Meanwell HEP-150 Series Features

Meanwell HEP-150 Series Applications

l  Outdoor telecommunication equipment

l  Outdoor electronic signage and billboard

l  Petroleum plant or mine shaft facility

Meanwell HEP-150 Series Applications

Meanwell HEP-150 Series Mechanical Diagram

Meanwell HEP-150 Series Mechanical DiagramMeanwell HEP-150 Series Mechanical Diagram
