GST18E
9.68

GST18E

As low as $9.68

Meanwell 18W AC-DC Reliable Green Industrial Adaptor

- +
Availability:In stock
SKU Meanwell GST18E
Brand Meanwell
Details

Meanwell GST18E Series is a 18W AC-DC Green Industrial Adaptor. The product features single-output, wall-mounted style and high reliability. It is a class II power unit (no FG), equipped with a 2-Pin standard European AC power plug. At the same time, GST18E adopts the input range from 85VAC to 264VAC, and supplies different models with output voltages ranging between 5VDC and 48VDC. So that it can satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST18E is compliant with EU ErP, and Code of Conduct (CoC) Version 5. The supreme feature permits the adaptor to save energy when it is either under operating mode or standby mode. What’s more, the entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST18E is certified for the international safety regulations as well. Considering its high safety, high quality and high performance, Meanwell GST18E Series serves as a high performance power supply solution for various types of consumer electronic devices.

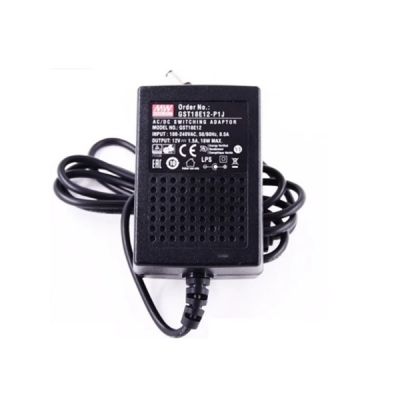

Meanwell GST18E Price and Specs 18W AC-DC Green Industrial Adaptor GST18E05- P1J 07 09 12 15 18 24 28 LPS Level VI YCICT

Meanwell GST18E Series Encoding

GST Series Name
18 Rated Wattage
E European 2 pin AC Plug
5 Output Voltage
P1J  Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GST18E Series Model Specifications

ORDER NO. GST18E05-P1J GST18E07-P1J GST18E09-P1J GST18E12-P1J GST18E15-P1J GST18E18-P1J GST18E24-P1J GST18E28-P1J GST18E48-P1J
OUTPUT SAFETY MODEL NO. GST18E05 GST18E07 GST18E09 GST18E12 GST18E15 GST18E18 GST18E24 GST18E28 GST18E48
DC VOLTAGE 5V 7.5V 9V 12V 15V 18V 24V 28V 48V
RATED CURRENT 3.0A 2.0A 2.0A 1.50A 1.20A 1.0A 0.75A 0.64A 0.375A
CURRENT RANGE 0-3.0A 0-2.0A 0-2.0A 0-1.50A 0-1.20A 0-1.0A 0-0.75A 0-0.64A 0-0.375A
RATED POWER 15W 15W 18W 18W 18W 18W 18W 18W 18W
RIPPLE & NOISE (max.) 80mVp-p 80mVp-p 80mVp-p 80mVp-p 100mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p
VOLTAGE TOLERANCE ±5.0% ±5.0% ±5.0% ±3.0% ±3.0% ±3.0% ±2.0% ±2.0% ±2.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±5.0% ±3.0% ±3.0% ±3.0% ±2.0% ±2.0% ±2.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 81.00% 85.00% 85.00% 86.00% 87.00% 88.00% 88.00% 88.50% 89.00%
AC CURRENT 0.5A / 115VAC 0.3A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS TUV EN62368-1, EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional) approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission EN55032(CISPR32), EAC TP TC 020 Class B
Radiated emission EN55032(CISPR32), EAC TP TC 020 Class B
Harmonic current EN61000-3-2 Class A
Voltage flicker EN61000-3-3 -----
EMC IMMUNITY Parameter Standard Test Level
ESD EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility EN61000-4-3 Level 2, 3V/m
EFT bursts EN61000-4-4 Level 3, 1KV/Line-Line
Surge susceptibility EN61000-4-6 Level 2, 3A/m
Conducted susceptibility EN61000-4-5 Level 2, 3V
Magnetic field immunity EN61000-4-8 Level 2, 1KV
Voltage dips , interruption EN61000-4-11 95% dip 0.5 periods, 30% dip 25 periods,
95% interruptions 250 periods
Others Life 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 202.5g; 60pcs/13.2Kg/1.15CUFT

Meanwell GST18E Series Features

l  Global certificates

l  Universal AC input/Full range

l  2 pole EURO plug, Class II power unit

l  No load power consumption< 0.075W

l  Energy efficiency Level VI

l  Comply with EU ErP and CoC Version 5

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  Pass LPS

l  -30~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

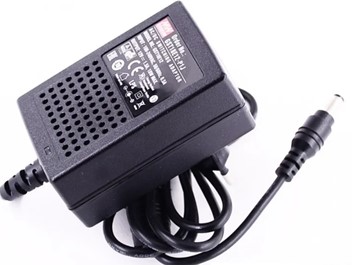

Meanwell GST18E Price and Datasheet 18W AC-DC Green Industrial Adaptor GST18E05- P1J 07 09 12 15 18 24 28 YCICT

Meanwell GST18E Series Applications

l  Office facilities

l  Industrial equipment

l  Telecommunication devices

l  Consumer electronic devices

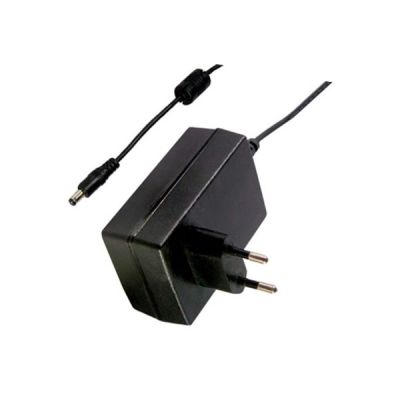

Meanwell GST18E Price and Datasheet 18W AC-DC Green Industrial Adaptor GST18E05- P1J 07 09 12 15 18 24 28 LPS Pass YCICT

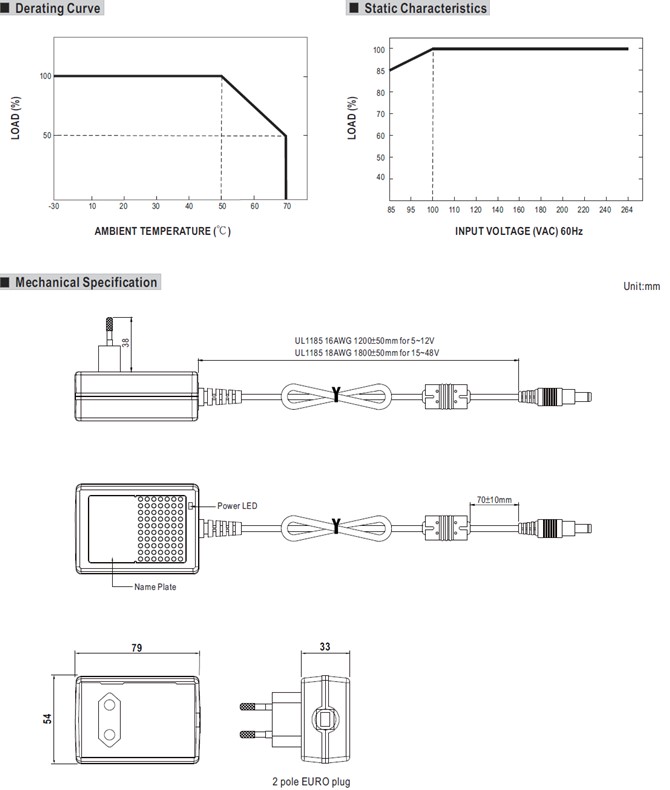

Meanwell GST18E Series Mechanical Diagram

Meanwell GST18E Price and Specs 18W AC-DC Green Industrial Adaptor GST18E05- P1J 07 09 12 15 18 24 28 LPS Class II YCICT
