UHP-500-4.2
70.17

UHP-500-4.2

$70.17

Meanwell 500W Slim Type with PFC Switching Supply with 4.2V80A336W200mVp-p3.6-4.4V±2.0%±0.5%±1%

- +
Availability:In stock
SKU Meanwell UHP-500-4.2
Brand Meanwell
Details

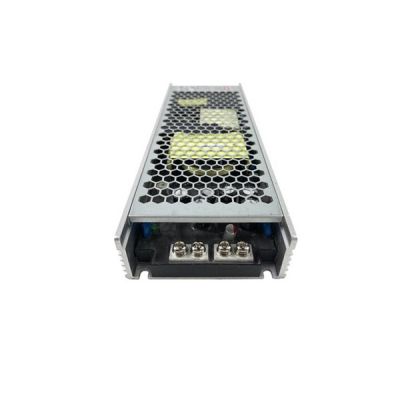

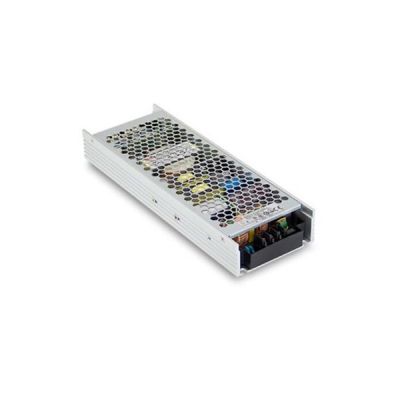

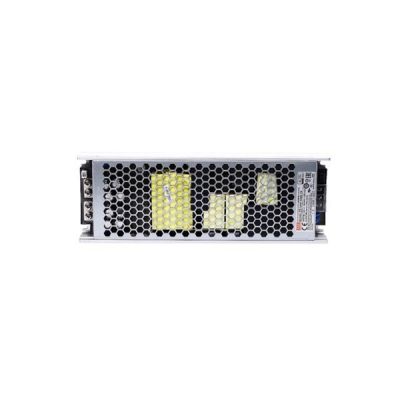

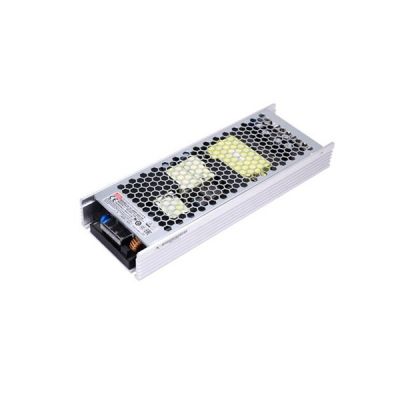

Meanwell UHP-500-4.2 is a 500W single-output slim type power supply with 31mm low profile design, and adopts the full range 90~264 VAC input. The model provides an output 4.2V voltage. Apart from the high efficiency reaching up to 95%, this unit can also operate from -30℃~ 70℃ under air convection without fan. Moreover, UHP-500-4.2 has the complete protection functions and 5G anti-vibration capability, and at the same time, lt is complied with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1,UL 62368-1 and GB4943. Due to the high efficiency, high reliability and long longevity. Meanwell UHP-500-4.2 acts as a high-performance power supply solution for various industrial applications.

Meanwell UHP-500-4.2 Specifications

Meanwell UHP-500-4.2 Specifications

Model UHP-500-4.2
Output DC VOLTAGE 4.2V
RATED CURRENT 80A
RATED POWER  336W
RIPPLE & NOISE (max.) mVp-p 200
VOLTAGE ADJ. RANGE 3.6-4.4V
VOLTAGE TOLERANCE ±2.0%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1%
SETUP, RISE TIME 1000ms, 50ms/230VAC; 1000ms,50ms/115VAC at full load;550ms/230VAC for 55V setup time
HOLD UP TIME  12ms/230VAC 12ms/115VAC
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  89.00%
AC CURRENT (Typ.) 4.85A/115VAC 2.6A/230VAC
INRUSH CURRENT (Typ. ) Cold start 30A/115VAC 60A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERLOAD 110~140% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 4.62-5.46V
Protection type :Shut down O/P voltage,re-power on to recover
OVER TEMPERATURE Protection type :Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION DC OK SIGNAL(Optional Contact rating(max.):30Vdc/1A resistive load
REDUNDANT(Optional) For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be
automatically enabled. This can prevent the system crash, and provide the reliability of system
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to “Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V), CCC GB4943, BSMI CNS14336-1,EAC TP TC 004 approved;Design refer to BS EN/EN61558-2-16
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/ 70%RH
EMC EMISSION Compliance to BS EN/EN55032,GB/T9254,Class B, BS EN/EN61000-3-2,-3, BSMI CNS13438, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level ,criterial A,EAC TP TC 020
Others MTBF 168K hrs min. MIL-HDBK-217F (25)
DIMENSION 232*81*31mm (L*W*H)
PACKING 0.905kg; 16pcs/15.48kg/0.82CUFT

Meanwell UHP-500-4.2 Features

l  3 years warranty

l  Slim and Low profile (31mm)

l  Fanless design,500W convection

l  Withstand 300V AC surge input for 5 seconds

l  Built-in active PFC function

l  -30℃~+70℃ working temperature

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  DC OK active signal and redundant function(option)

l  Operating altitude up to 5000 meters

l  LED indicator for power on

Meanwell UHP-500-4.2 Features

Meanwell UHP-500-4.2 Applications

l  Industrial automation machinery

l  Industrial control system

l  LED display application

l  Mechanical and electrical equipment

l  Electronic instruments, equipment or apparatus

l  Power Source Equipment for PoE(55V model)

Meanwell UHP-500-4.2 applications ycict

Meanwell UHP-500-4.2 Mechanical Diagram

Meanwell UHP-500-4.2 Mechanical DiagramMeanwell UHP-500-4.2 Mechanical Diagram
