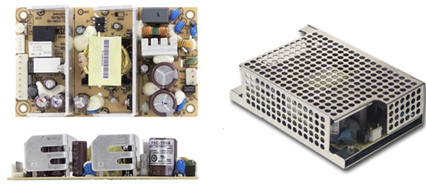

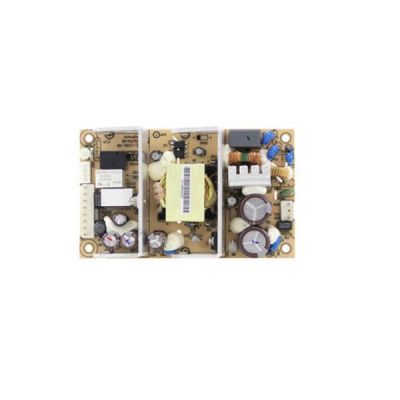

Meanwell PSC-100 Series is a 100W Single Output with Battery Charger (UPS Function). The entire series allows the universal input range between 90VAC and264V AC and incorporates built-in PFC function. In addition to the primary output, there is a charger output, with a smaller rated current, providing the backup application which the security access systems normally need. What’s more, PSC-100 series delivers an efficiency up to 86%, so that it can operate with air convection under -20℃ through 70℃. Apart from them, PSC-100 is equipped with various protection functions such as Short circuit, Overload and Over voltage. This series is designed with thorough alarm features, including AC OK and battery low signaling. At the same time, the relay contact is provided to facilitate users' system designs. PSC-100 is available in the PCB type or the enclosed type with L-Bracket and cover. Considering its excellent quality, high efficiency and outstanding reliability, Meanwell PSC-100 Series is a high price-to-performance power supply solution for various industrial applications in harsh working environments.
Meanwell PSC-100 Series Encoding
| PSC | Series Name |
| 100 | Output wattage |
| A | Output Voltage |
| C | Type |
| Blank | PCB Type |
| -C | Enclosed Type |
Meanwell PSC-100 Series Model Specifications

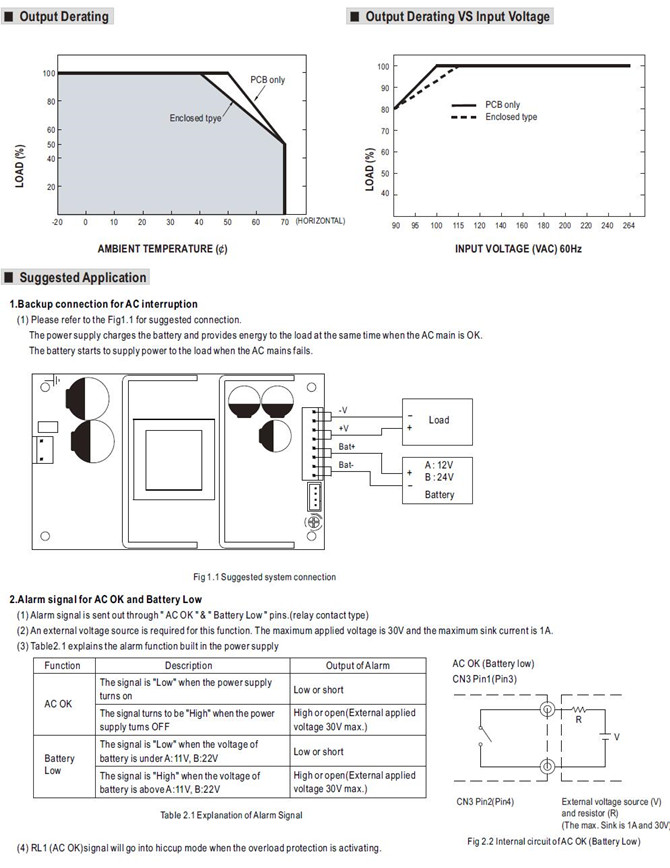

| Model | PSC-100A | PSC-100B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 13.8V | 13.8V | 27.6V | 27.6V | |
| RATED CURRENT | 4.75A | 2.5A | 2.4A | 1.25A | |
| CURRENT RANGE | 0-7A | ----- | 0-3.5A | ---- | |
| RATED POWER | 100.05W | 100.74A | |||
| RIPPLE & NOISE (max.) | 100mVp-p | ---- | 100mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1:12-15V | CH1:24-29V | |||
| VOLTAGE TOL ERANCE | ±1.0% | ---- | ±1.0% | ---- | |
| LINE REGULATION | ±0.5% | ---- | ±0.5% | ---- | |
| LOAD REGULATION | ±0.5% | ---- | ±0.5% | ---- | |
| SETUP, RISE TIME | 2400ms, 30ms/230VAC 2400ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 40ms/230VAC 14ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 86.00% | 88.00% | |||
| AC CURRENT (Typ.) | 2A/115VAC 1.2A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | CH1:14.49 ~ 18.63V | CH1:28.98 ~ 37.26V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| BATTERY CUT OFF | 10±0.5V | 20±1V | |||
| FUNCTION | AC OK | Relay contact output, ON : AC OK ; OFF : AC Fail ; Max. rating : 30V / 1A | |||
| BATTERY LOW | Relay contact output, OFF : Battery OK ; ON : Battery Low ; Max. rating : 30V / 1A | ||||
| Battery low voltage : < 11V | Battery low voltage : < 22V | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) on CH1 output | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||||
| OTHERS | MTBF | 2094.5K hrs min. Telcordia SR-332 (Bellcore) ; 417.7K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | PCB:127*76.2*31mm (L*W*H) ; Enclosed type:130*85*37mm (L*W*H) | ||||
| PACKING | PCB:0.23Kg; 63pcs/15.5Kg/1.28CUFT ; Enclosed type:0.44Kg;32pcs/15Kg/0.73CUFT | ||||
Meanwell PSC-100 Series Features
l Universal AC input/ Full range
l 5"x3" compact size
l Models with L-Bracket and cover available (PSC-100x-C, X=A,B)
l Protections: Short circuit/Overload/Over voltage
l Battery low protection/Battery reverse polarity protection by fuse
l Relay contact signal output for AC OK and Battery Low
l Cooling by free air convection
l 100% full load burn-in test
l 2 years warranty
Meanwell PSC-100 Series Applications
l Security system
l Emergency lighting system
l Alarm system
l UPS system
l Central monitoring system
l Access systems

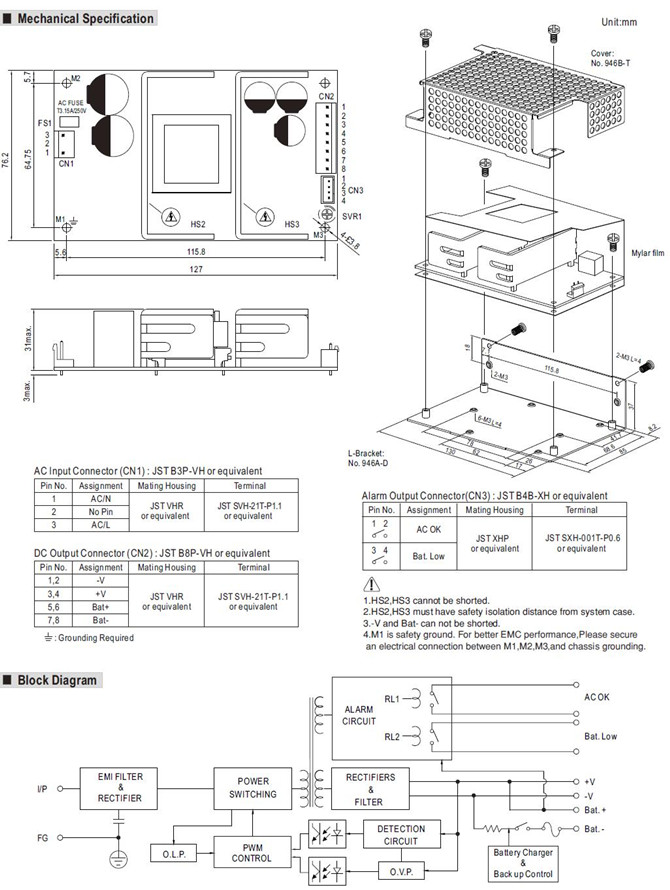

Meanwell PSC-100 Series Mechanical Diagram
