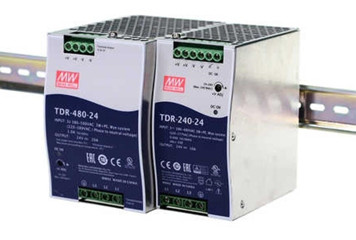

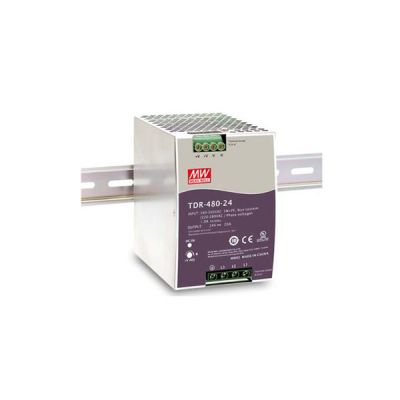

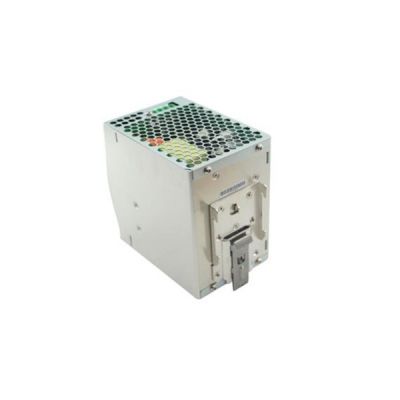

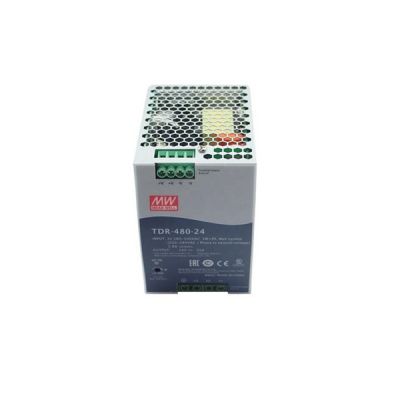

Meanwell TDR-480 Series is one economical slim 480W DIN rail power supply. The entire series adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. Since the body is 85.5mm in width, the design saves a lot of space inside the cabinets. TDR-480 Series adopts the full range AC input from3ѱ 340VAC to 550VAC (Dual Phase operation possible) and conforms to BS EN/EN6 1000-3-2, the norm the European Union regulates for harmonic current. Apart from them, TDR-480 series is designed with metal housing that improves the power dissipation. With working efficiency reaching up to 93 %, the entire series could operate at the ambient temperature between -20℃ and 70℃ under air convection. Moreover, the series is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC 62368-1 CB approved by UL.) permits TDR-480 series a very competitive power supply solution for industrial applications.
Meanwell TDR-480 Series Encoding
| TDR | Series Name |
| 480 | Rated Wattage |
| 24 | Output Voltage |
Meanwell TDR-480 Series Model Specifications
| Model | TDR-480-24 | TDR-480-48 | ||
| Output | DC VOLTAGE | 24V | 48V | |
| RATED CURRENT | 20A | 10A | ||
| CURRENT RANGE | 0-20A | 0-10A | ||
| RATED POWER | 480W | 480W | ||
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | ||
| VOLTAGE ADJ. RANGE | 24-28V | 48-55V | ||
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ||
| LINE REGUL ATION | ±0.5% | ±0.5% | ||
| LOAD REGULATION | ±1.0% | ±1.0% | ||
| SETUP, RISE TIME | 1200ms, 60ms/400VAC 800ms, 60ms/500VAC at full load | |||
| HOLD UP TIME | 20ms / 400VAC 20ms / 500VAC at full load | |||
| Input | VOLTAGE RANGE | Three-Phase 340 ~ 550VAC (Dual phase operation possible) 480 ~ 780VDC | ||
| FREQUENCY RANGE | 47 - 63Hz | |||
| POWER FACTOR (Typ.) | PF>=0.9/400VAC PF>=0.88/500VAC at full load | |||
| EFFICIENCY (Typ.) | 92.50% | 93.00% | ||
| AC CURRENT (Typ.) | 0.85A/400VAC 0.7A/500VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 50A | |||
| LEAKAGE CURRENT | <3.5mA / 530VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power | ||
| Protection type : Constant current limiting, unit will shut down after 3 sec. ,re-power on to recover | ||||
| OVER VOLTAGE | 29 ~ 33V | 56 ~ 65V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |||
| SAFETY &EMC | SAFETY STANDARDS | UL508, IEC62368-1,UL 62368-1, AS/NZS 62368.1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK(optional):0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032(CISPR32)/BS EN/EN61204-3 | Class B | ||
| Radiated | BS EN/EN55032(CISPR32)/BS EN/EN61204-3 | Class B | ||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ….. | ||
| EMC IMMUNITY | BS EN/EN55024 , BS EN/EN61204-3 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||
| Radiated Field | BS EN/EN61000-4-3 | Level 3 | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3 | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 2KV / Line-Line, Level 4, 4KV/ Line-Earth | ||
| Conducted | BS EN/EN61000-4-6 | Level 3 | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4 | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | ＞95% dip 0.5 periods, 30% dip 25 periods＞95% interruptions 250 periods | ||
| Others | MTBF | 391.7K hrs min. Telcordia SR-332(Bellcore) ; 108.2K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 85.5*125.2*128.5mm (W*H*D) | |||
| PACKING | 1.51Kg ; 8pcs/13Kg/1.16CUFT | |||
Meanwell TDR-480 Series Features
l Three-Phase 340 ~ 550VAC wide range input (Dual phase operation possible)
l Width only 85 .5mm
l Built-in active PFC function compliance to BS EN/EN61000-3-2
l High efficiency 93% and low power dissipation
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Built-in constant current limiting circuit
l Can be installed on DIN rail TS-35/7.5 or 15
l UL 508 (industrial control equipment) approved
l BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
l Optional DC OK relay contact
l 3 years warranty
Meanwell TDR-480 Series Applications
l Industrial control system
l Semiconductor fabrication equipment
l Factory automation
l Electro-mechanical apparatus

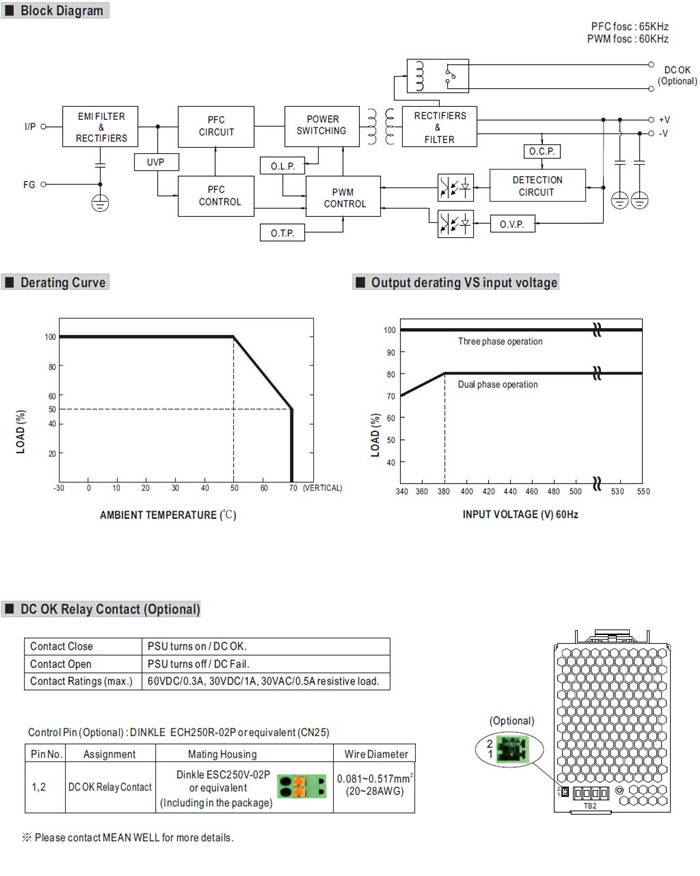

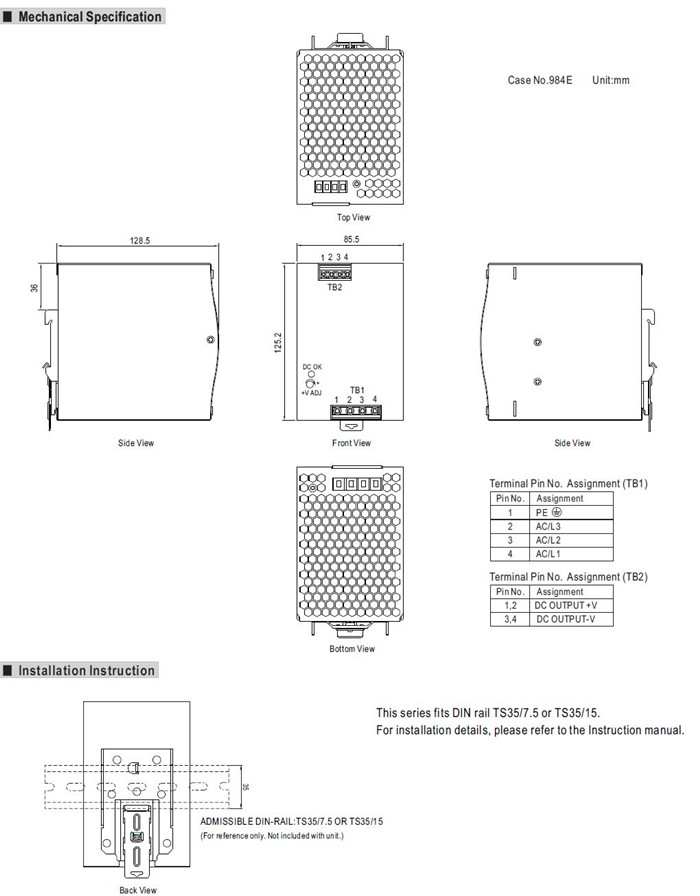

Meanwell TDR-480 Series Mechanical Diagram
