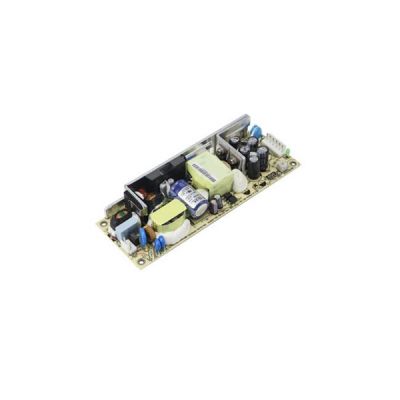

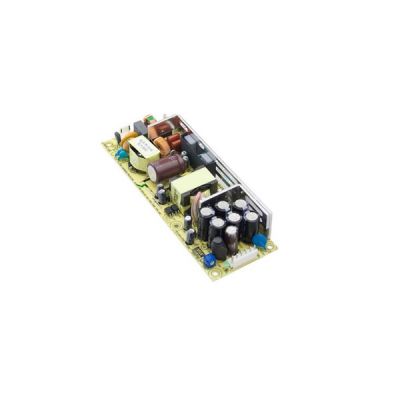

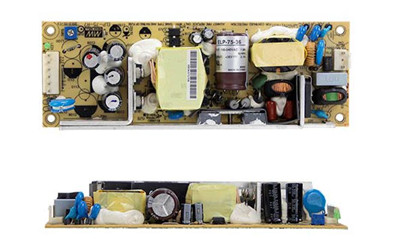

Meanwell 75W Single Output with PFC Function

- +
Availability:In stock
SKU Meanwell ELP-75
Brand Meanwell
Details

Meanwell ELP-75 Series is 75W Single Output with PFC Function. The entire series is designed in compact size and low profile, and offers printed circuit board architecture for direct mounting to the system chassis. At the same time, ELP-75 accepts 90~264VAC input and offers various output voltages between 3.3V and 48V. With the working efficiency reaching up to 90% and the extremely low no load power consumption<0.5W. It is able to be used for ClassⅡ(no FG) system design. Apart from them, the series complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Moreover, ELP-75 is equipped with various protection types such as Short circuit, Overload and Over voltage. Due to its high efficiency, high reliability and longevity, Meanwell ELP-75 Series serves as a high price-to-performance power supply solution for various industrial applications such as factory automation, electrical or mechanical equipment.

Meanwell ELP-75 Series Model Specifications

Meanwell ELP-75 Series Model Specifications

Model ELP-75-3.3 ELP-75-5 ELP-75-12 ELP-75-15 ELP-75-24 ELP-75-36 ELP-75-48
OUTPUT DC VOLTAGE 3.3V 5V 12V 15V 24V 36V 48V
RATED CURRENT 15A 15A 6.25A 5A 3.15A 2.1A 1.6A
CURRENT RANGE 0-15A 0-15A 0-6.25A 0-5A 0-3.15A 0-2.1A 0-1.6A
RATED POWER 49.5W 75W 75W 75W 75.6W 75.6W 76.8W
RIPPLE & NOISE (max.) 80mVp-p 80mVp-p 120mVp-p 150mVp-p 240mVp-p 280mVp-p 300mVp-p
VOLTAGE ADJ. RANGE 3-3.6V 4.75-5.5V 10.8-13.5V 13.5-16.5V 21.6-26.4V 32.4-39.6V 43.2-52.8V
VOLTAGE TOL ERANCE  ±3.0% ±2.0% ±2.0% ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGUL .ATION ±2.0% 1.50% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 2500ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.) 20ms/230VAC 20ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) 3.3V: PF>0.91/230VAC 5V~48V: PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.) 80.00% 82.00% 89.00% 90.00% 90.00% 90.00% 90.00%
AC CURRENT (Typ.) 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT(Typ.) COLD START 60A/230VAC
LEAKAGE CURRENT <1mA/240VAC
PROTECTION OVERL OAD 105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.7-4.45V 5.6-6.75V 13.8-16.2V 17.25-20.25V 27.6-32.4V 39.7-46.8V 53.3-64.8V
Protection type : Shut down o/p voltage, re-power on to recover
  WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS  UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55024, heavy industry level, criteria A, EAC TP TC 020
OTHERS MTBF 345.3Khrs min MIL-HDBK-217F (25)
DIMENSION PCB:175*60*27mm (L*W*H) with optional CASE:195*68 .5* 33mm (L*W*H)
PACKING PCB:0.25Kg; 48pcs/13Kg/0.96CUFT with optional CASE:0.54Kg; 25pcs/14 5Kg/0.7CUFT

Meanwell ELP-75 Series Features

l  Universal AC input/ Full range

l  Built-in active PFC function, PF>0.95

l  High efficiency up to 90%

l  Protections: Short circuit / Overload 1 Over voltage

l  Cooling by free air convection

l  1U low profile

l  LED indicator for power on

l  No load power consumption<0.5W

l  3 years warranty

Meanwell ELP-75

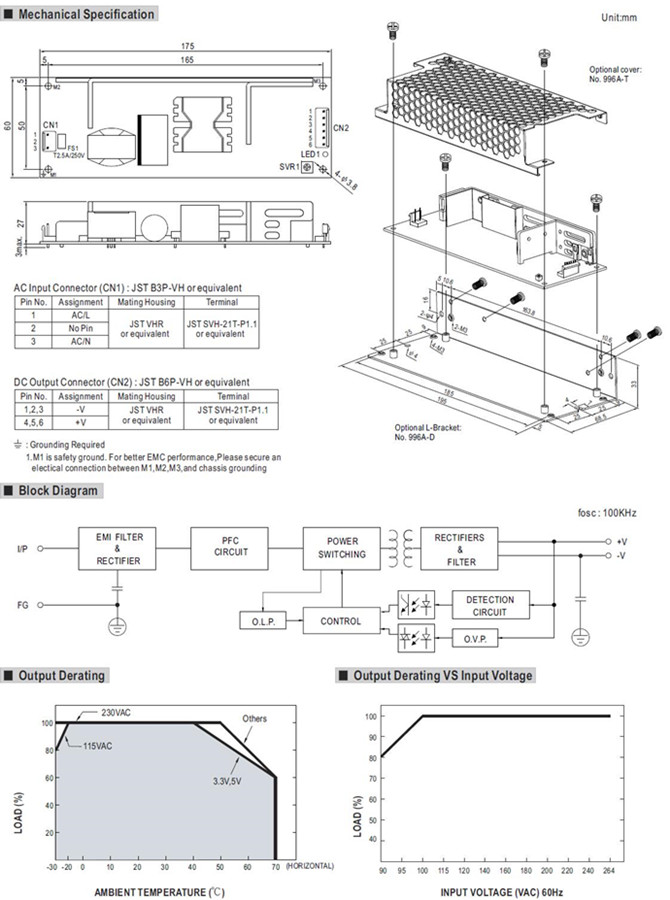

Meanwell ELP-75 Series Mechanical Diagram

Meanwell ELP-75 Series Mechanical Diagram
