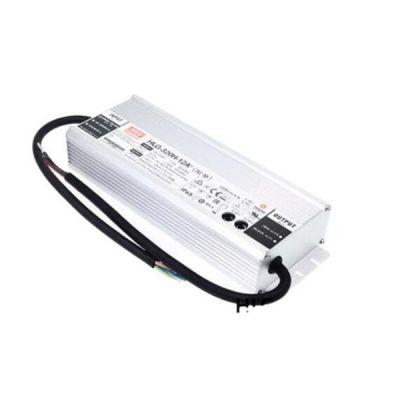

Meanwell 320W Constant Voltage and Constant Current LED Driver

- +
Availability:In stock
SKU Meanwell HLG-320H
Brand Meanwell
Details

Meanwell HLG-320H Series is a 320W AC/DC L ED driver highlighting dual mode constant voltage and constant current output. At the same time, the entire series operates from 90 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. As the high efficiency reaches up to 94% and fanless design, HLG-320H is able to work for -40℃ ~ +90℃ case temperature under free air convection. Additionally, the metal housing design and IP67/IP65 ingress protection level allow them to fit both indoor and outdoor applications. Apart from them, it is equipped with various function options such as dimming methodologies. Considering its longevity, high efficiency and excellent reliability, Meanwell HLG-320H Series serves as an ideally suitable solution for the optimal design flexibility for LED lighting system.

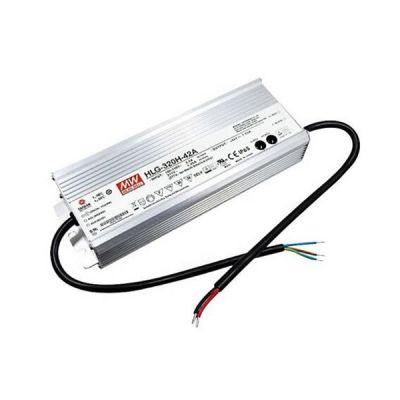

Meanwell HLG-320H Series ac dc led driver power supply 320w new and original good price ycict

Meanwell HLG-320H Series Encoding

HLG Series Name
320H Rated Wattage
15 Rate output voltage (12V/15V/20V/24V/30V/36V/42V/48V/54V)
A Function options
Type IP Level Function Note
Blank IP67 Io and Vo fixed In Stock
A IP65 Io and Vo adjustable through built-in potentiometer In stock
B IP67 3 in 1 dimming function (1 ~1OVDC, 10V PWM signal and resistance) In stock
AB IP65 Io and Vo adjustable through built-in potentiometer & 3in 1 dimming function (1~10Vdc, 10V PWM signal and resistance ) In Stock
C ---- Terminal block for I/O connection. Output voltage and constant currentlevel can be adjusted through internal potentiometer. By Request
D IP67 Timer dimming function, contact MEAN WELL for details(safety pending). By Request

Meanwell HLG-320H Series Model Specifications

Model HLG-320H-12 HLG-320H-15 HLG-320H-20 HLG-320H-24 HLG-320H-30 HLG-320H-36 HLG-320H-42 HLG-320H-48 HLG-320H-54
OUTPUT DC VOLTAGE 12V 15V 20V 24V 30V 36V 42V 48V 54V
CONSTANT CURRENT REGION 6-12V 7.5-15V 10-20V 12-24V 15-30V 18-36V 21-42V 24-48V 27-54V
RATED CURRENT 22A 19A 15A 13.34A 10.7A 8.9A 7.65A 6.7A 5.95A
RATED POWER 264W 285W 300W 320.16W 321W 320.4W 321.3W 321.6W 321.3W
RIPPLE & NOISE (max.) 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 250mVp-p 250mVp-p 250mVp-p 350mVp-p
VOLTAGE ADJ. RANGE Adjustable for A/C-Type only (via built-in potentiometer)
10.8-13.5V 13.5-17V 17-22V 21-26V 26-32V 32-39V 38-45V 43-52V 49-58V
CURRENT ADJ. RANGE Adjustable for A/AB/C-Type only (via built-in potentiometer)
11-22A 9.5-19A 7.5-15A 6.67-13.3A 5.35-10.7A 4.45-8.9A 3.8-7.65A 3.35-6.7A 2.97-5.95A
VOLTAGE TOLERANCE ±3.0% ±2.0% ±1.5% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.5% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 2500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.) 15ms / 115VAC, 230VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.98/115VAC, PF>=0.95/230VAC, PF>=0.94/277VAC at full load
TOTAL HARMONIC DISTORTION THD< 20% (at load>=50% / 115VAC,230VAC; at load>=75% / 277VAC)
EFFICIENCY (Typ.) (230Vac) 91.00% 92.50% 93.50% 94.00% 94.00% 94.50% 95.00% 95.00% 95.00%
EFFICIENCY (Typ.) (277Vac) 91.50% 93.00% 94.00% 94.50% 94.50% 95.00% 95.00% 95.00% 95.00%
AC CURRENT (Typ.) 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT (Typ. ) COLD START 70A(twidth=1010μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURR ENT <0.75mA / 277VAC
PROTECTION OVER CURRENT 95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 14-17V 17.5-21V 22.5-27V 27-33V 33-37V 40-46V 46-53V 53.5-60V 59-65V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down and latch off o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP Tcase= -40 ~ +90 (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP. Tcase= +90
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent;
GB19510.1,GB19510.14; IP65 or IP67 (except for HLG-320H C-type); J61347-1, J61347-2-13 (except for B,AB,C and D-type),
EAC TP TC 004;KC61347-1,KC61347-2-13(except for AB,C-type) approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (at load>=50%) ;
BS EN/EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity
Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020
Others MTBF 1702.2K hrs min. Telcordia SR-332 (Bellcore) ; 157.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 252*90*43.8mm (L*W*H)
PACKING 1.88Kg; 8pcs/16Kg/0.92CUFT

Meanwell HLG-320H Series Features

l  Constant Voltage and Constant Current mode output

l  Metal housing with class I design

l  Built-in active PFC function

l  lP67/IP65 rating for indoor or outdoor installations

l  Function options: output adjustable via potentiometer;3 in 1 dimming

l  Typical lifetime > 62000 hours

l  7 years warranty

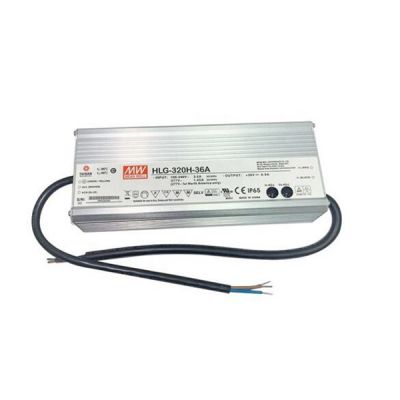

Meanwell HLG-320H Meanwell HLG-320H series price and specs ac dc led driver power supply ycict

Meanwell HLG-320H Series Applications

l  LED street lighting

l  LED high-bay lighting

l  Parking space lighting

l  LED fishing lamp

l  LED greenhouse lighting

l  Type HL" for use in Class I , Division 2 hazardous (Classified) location

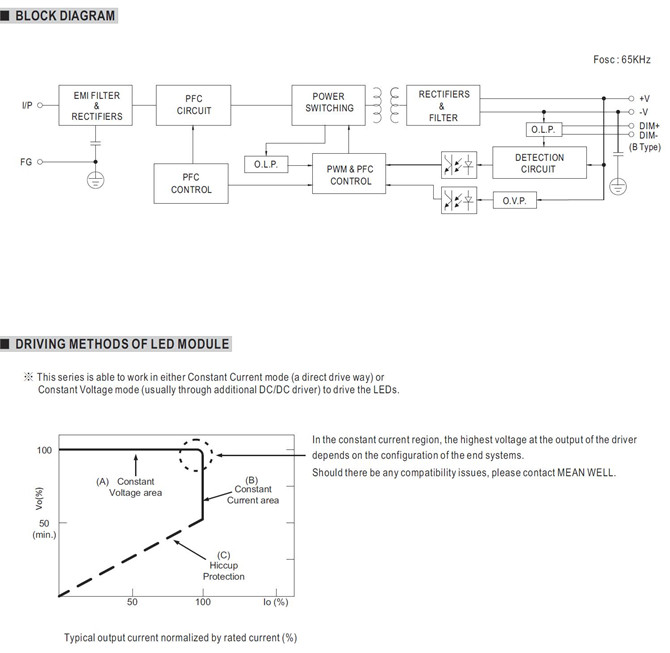

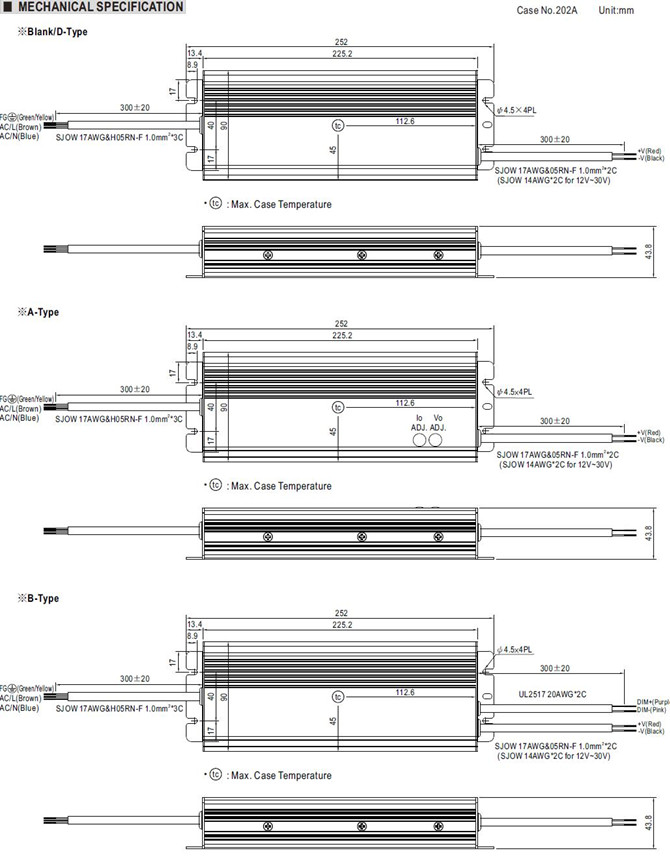

Meanwell HLG-320H Series Mechanical Diagram
