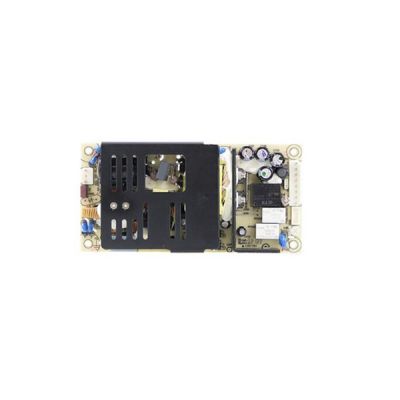

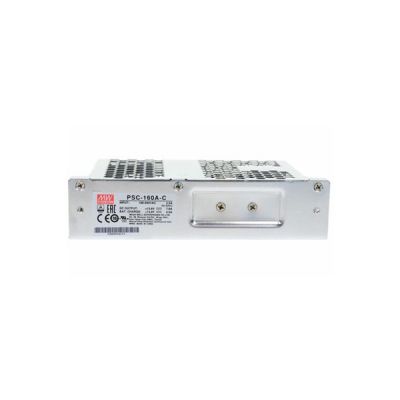

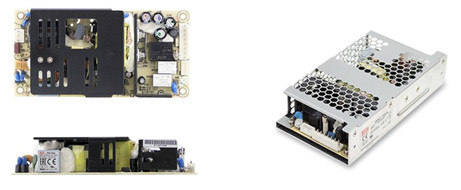

Meanwell PSC-160 Series is 160W Single Output with Battery Charger (UPS Function). The entire series allows the universal input range between 90V AC and 264VAC with the built-in PFC function. In addition to the primary output, there is a charger output, with the smaller rated current, which provides the backup power supply application the security access systems require. What’s more, PSC-160 series delivers high efficiency reaching up to 90%, so that it can operate with air convection under -20℃ through 70℃. Apart from them, the series is equipped with various protection functions such as Short circuit, Overload and Over voltage. Meanwell PSC-160 is designed with thorough alarm features, including AC OK and battery low signaling, and the relay contact is provided to facilitate users' system designs. PSC-160 is available in the PCB type or the enclosed type with L-Bracket and cover. Considering its excellent quality, high efficiency and outstanding reliability, Meanwell PSC-160 Series is a high price-to-performance power supply solution for various industrial applications in harsh working environments.
Meanwell PSC-160 Series Encoding
| PSC | Series Name |
| 160 | Output wattage |
| A | Output Voltage |
| C | Type |
| Blank | PCB Type |
| -C | Enclosed Type |
Meanwell PSC-160 Series Model Specifications

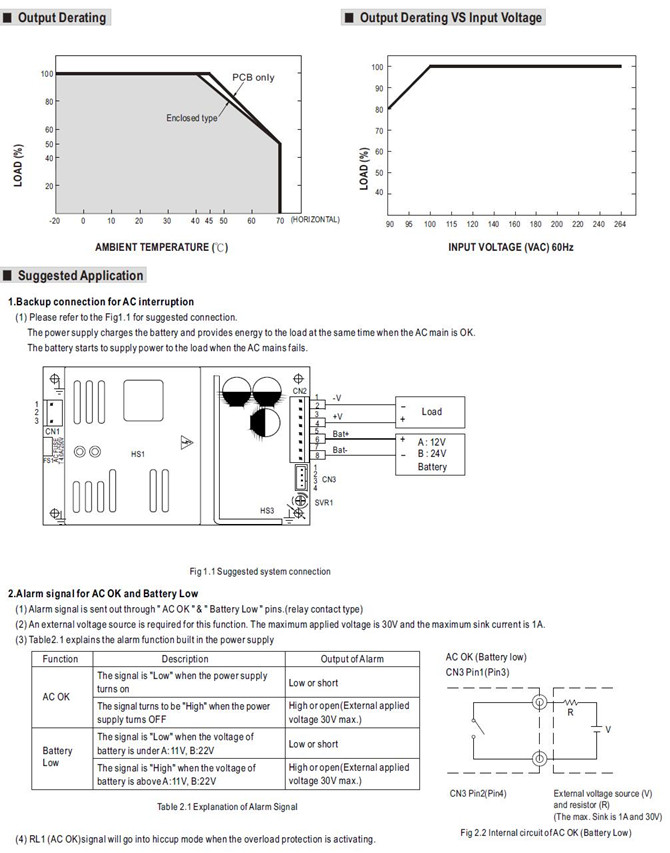

| Model | PSC-160A | PSC-160B | |||
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 13.8V | 13.8V | 27.6V | 27.6V | |
| RATED CURRENT | 7.6A | 4A | 3.8A | 2A | |
| CURRENT RANGE | 0-11.6A | ----- | 0-5.8A | ---- | |
| RATED POWER | 160W | 160W | |||
| RIPPLE & NOISE (max.) | 150mVp-p | ---- | 240mVp-p | ---- | |
| VOLTAGE ADJ. RANGE | CH1:12-15V | CH1:24-29V | |||
| VOLTAGE TOL ERANCE | ±1.0% | ---- | ±1.0% | ---- | |
| LINE REGULATION | ±0.5% | ---- | ±0.5% | ---- | |
| LOAD REGULATION | ±0.5% | ---- | ±0.5% | ---- | |
| SETUP, RISE TIME | 2000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 40ms/230VAC 40ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| POWER FACTOR (Typ.) | PF≧0.95/230VAC PF≧0.98/115VAC at full load | ||||
| EFFICIENCY (Typ.) | 88.00% | 90.00% | |||
| AC CURRENT (Typ.) | 2.5A/115VAC 1.5A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 35A/115VAC 70A/230VAC | ||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | CH1:14.49 ~ 18.63V | CH1:28.98 ~ 37.26V | |||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| BATTERY CUT OFF | 10±0.5V | 20±1V | |||
| FUNCTION | AC OK | Relay contact output, ON : AC OK ; OFF : AC Fail ; Max. rating : 30V / 1A | |||
| BATTERY LOW | Relay contact output, OFF : Battery OK ; ON : Battery Low ; Max. rating : 30V / 1A | ||||
| Battery low voltage : < 11V | Battery low voltage : < 22V | ||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0~50℃) on CH1 output | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020 | ||||
| OTHERS | MTBF | 2005.3K hrs min. Telcordia SR-332 (Bellcore) ; 257.1K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | PCB:152.4*76.2*32mm (L*W*H) ; Enclosed type:155.4*85*37mm (L*W*H) | ||||
| PACKING | PCB:0.35Kg;42pcs/15.7Kg/1.02CUFT ; Enclosed type: 0.45Kg;32pcs/15.4Kg/0.83CUFT | ||||
Meanwell PSC-160 Series Features
l Universal AC input/Full range
l Built-in active P FC function
l 6"x3" compact PCB size
l Models with L-Bracket and cover available (PSC-160x-C, x=A,B)
l Protections: Short circuit/Overload/Over voltage
l Battery low protection/Battery reverse polarity protection by fuse
l Relay contact signal output for AC OK and Battery Low
l Cooling by free air convection
l 100% full load burn-in test
l 2 years warranty
Meanwell PSC-160 Series Applications
l Security system
l Emergency lighting system
l Alarm system
l UPS system
l Central monitoring system
l Access systems

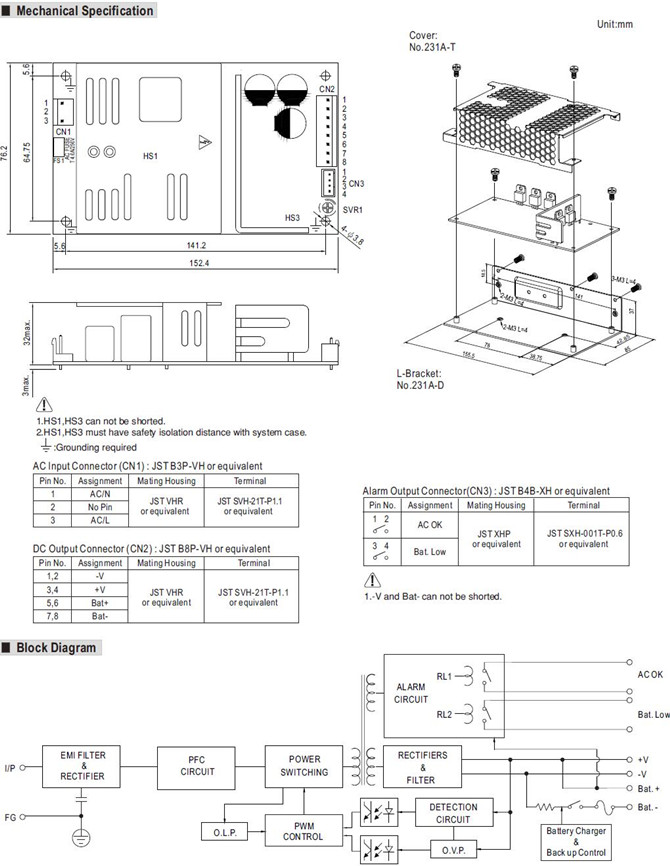

Meanwell PSC-160 Series Mechanical Diagram
