GST18U
9.07

GST18U

As low as $9.07

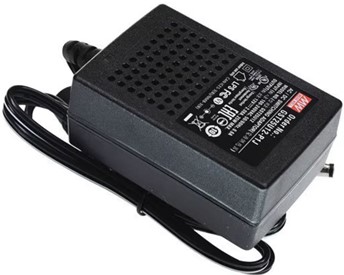

Meanwell 18W AC-DC Reliable Green Industrial Adaptor

- +
Availability:In stock
SKU Meanwell GST18U
Brand Meanwell
Details

Meanwell GST18U Series is a 18W AC-DC Green Industrial Adaptor. The product features high reliability, wall-mounted style and single-output. it is a class II power unit (no FG), equipped with 2-Pin standard USA AC power plug, and adopts input range from 85VAC to 264VAC. At the same time, GST18U supplies different models with output voltages ranging between 5VDC and 48VDC. So that it could satisfy the demands for various types of consumer electronic devices. Since the efficiency reaches high up to 89% and extremely low no-load power consumption below 0.075W, Meanwell GST18U is compliant with USA EISA 2007/DoE and Canada NRCan. Additionally, the supreme feature allows the adaptor to save energy when it is either under operating mode or standby mode. The entire series also utilizes the 94V-0 flame retardant plastic case with the double insulation, which could effectively prevent electrical shock. GST18U is certified for the international safety regulations as well. Considering its high safety, high reliability and high quality, Meanwell GST18U Series serves as a high performance power supply solution for various types of consumer electronic devices.

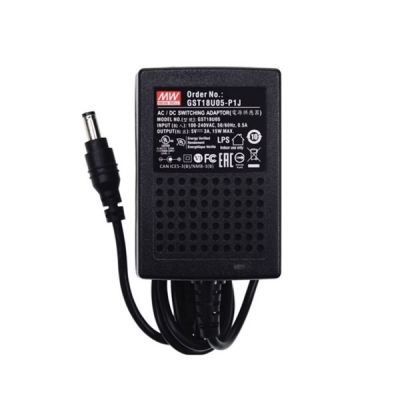

Meanwell GST18U Price and Specs 18W AC-DC Industrial Green Adaptor ClassⅡ Level VI EISA 2007/DoE NRCan LPS YCICT

Meanwell GST18U Series Encoding

GST Series Name
18 Rated Wattage
U US 2 pin AC Plug
5 Output Voltage
P1J DC plug type Р1J: Рlug fоr ѕtаndаrd mоdеl, 2.1 ѱ Х5. 5ѱ Х 11 mm,C+ tuning fork type
Other Options available by customer requested

Meanwell GST18U Series Model Specifications

ORDER NO. GST18U05-P1J GST18U07-P1J GST18U09-P1J GST18U12-P1J GST18U15-P1J GST18U18-P1J GST18U24-P1J GST18U28-P1J GST18U48-P1J
OUTPUT SAFETY MODEL NO. GST18U05 GST18U07 GST18U09 GST18U12 GST18U15 GST18U18 GST18U24 GST18U28 GST18U48
DC VOLTAGE 5V 7.5V 9V 12V 15V 18V 24V 28V 48V
RATED CURRENT 3.0A 2.0A 2.0A 1.50A 1.20A 1.0A 0.75A 0.64A 0.375A
CURRENT RANGE 0-3.0A 0-2.0A 0-2.0A 0-1.50A 0-1.20A 0-1.0A 0-0.75A 0-0.64A 0-0.375A
RATED POWER 15W 15W 18W 18W 18W 18W 18W 18W 18W
RIPPLE & NOISE (max.) 80mVp-p 80mVp-p 80mVp-p 80mVp-p 100mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p
VOLTAGE TOLERANCE ±5.0% ±5.0% ±5.0% ±3.0% ±3.0% ±3.0% ±2.0% ±2.0% ±2.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±5.0% ±5.0% ±5.0% ±3.0% ±3.0% ±3.0% ±2.0% ±2.0% ±2.0%
SETUP, RISE, HOLD UP TIME 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 81.00% 85.00% 85.00% 86.00% 87.00% 88.00% 88.00% 88.50% 89.00%
AC CURRENT 0.5A / 115VAC 0.3A / 230VAC
INRUSH CURRENT (max.) Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.) 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 110 ~ 140% rated output voltage
Protection type : Clamp by zener diode, output short
ENVIRONMENT WORKING TEMP. -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03% /(0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL62368-1, CSA C22.2 No.62368-1, BSMI CNS14336-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:4242VDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Parameter Standard Test Level
Conducted emission FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) CNS13438, EAC TP TC 020 Class B
Radiated emission FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B CNS13438, EAC TP TC 020 Class B
Others Life 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25)
DIMENSION 79*54*33mm (L*W*H)
PACKING 198g; 60pcs/12.9Kg/1.15CUFT

Meanwell GST18U Series Features

l  Global certificates

l  Universal AC input/Full range

l  2 pole USA plug, Class II power unit

l  No load power consumption< 0.075W

l  Energy efficiency Level VI

l  Comply with EISA 2007/DoE and NRCan

l  Protections: Short circuit/Overload/Over voltage

l  Fully enclosed plastic case

l  Pass LPS

l  -30℃~+70℃ wide range working temperature

l  LED indicator for power on

l  Various DC plug quick adapter accessory available

l  3 years warranty

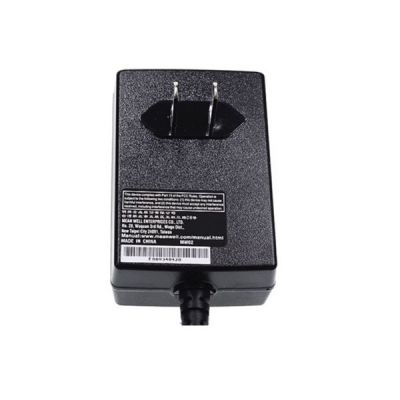

Meanwell GST18U Price and Specs 18W AC-DC Industrial Adaptor ClassⅡ Level VI EISA 2007/DoE and NRCan LPS Pass YCICT

Meanwell GST18U Series Applications

l  Office facilities

l  Industrial equipment

l  Consumer electronic devices

l  Telecommunication devices

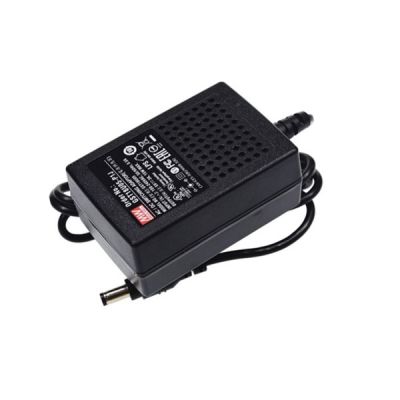

Meanwell GST18U Price and Datasheet 18W AC-DC Industrial Adaptor ClassⅡ Level VI EISA 2007/DoE and NRCan LPS Pass YCICT

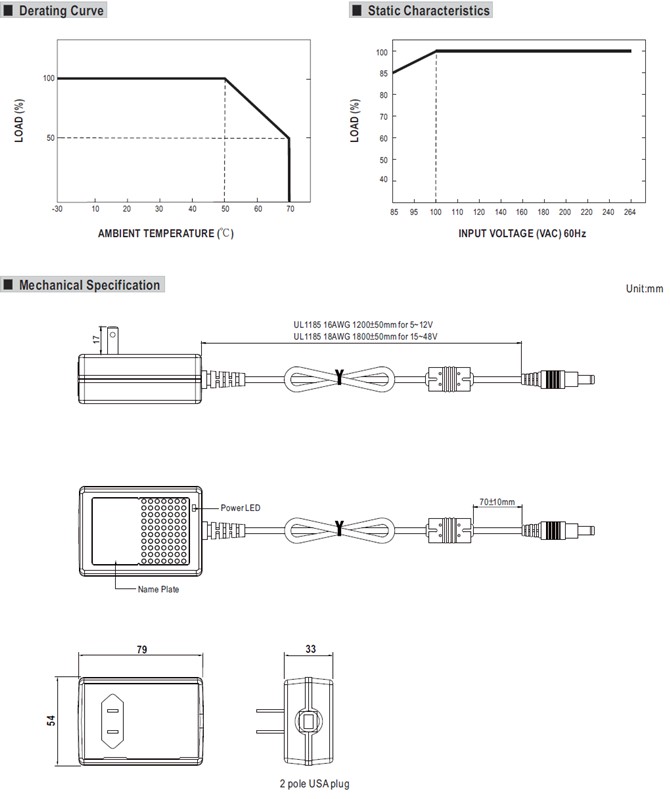

Meanwell GST18U Series Mechanical Diagram

Meanwell GST18U Price and Specs 18W AC-DC Industrial Green Adaptor ClassⅡ Level VI EISA 2007/DoE and NRCan LPS YCICT
