S6720-30C-EI-24S-AC
2991.99
Details

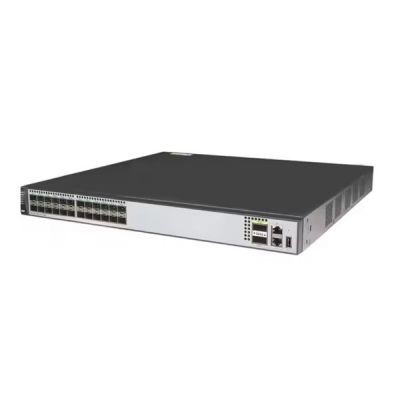

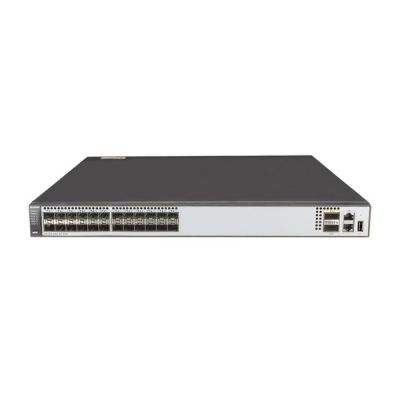

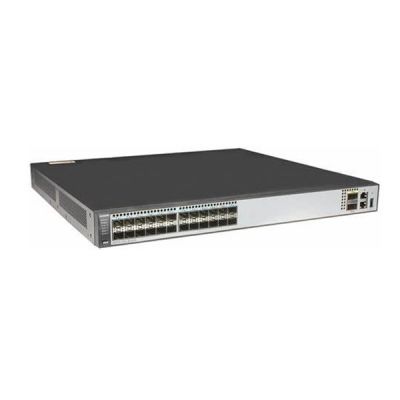

Huawei S6720-30C-EI-24S-AC is a next-generation 10G box switch with 24×10GE SFP+, 2×40GE QSFP+ ports and One extended slot. It offers Forwarding performance: 720 Mpps and Switching capacity: 2.56 Tbps. S6720-EI can function as an access switch in an Internet data center (IDC) or a core/aggregation switch on a campus network. In addition, S6720-30C-EI-24S-AC has industry-leading performance, provides line-speed 10GE access ports and line-speed 40GE uplink ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 10 Gbit/s traffic aggregation. S6720-EI provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure data centers.
| 1, Twenty-four 10GE SFP+ ports | 2, Two 40GE QSFP+ ports |
| 3, One ETH management port | 4, One console port |
| 5, One USB port | 6, Ground screw |
| 7, ESN label | 8, Rear card slot |
| 9, Fan slot | 10, Power module slot 2 |
| 11, Power module slot 1 |
Huawei S6720-30C-EI-24S-AC Specifications
| Item | Description |
| Part number | 02350DMN |
| Model | S6720-30C-EI-24S-AC |
| Port | 24×10GE SFP+, 2×40GE QSFP+ ports |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 80.60 years (without card) |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) | |
| Weight (with packaging) | 9.8 kg (21.61 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE QSFP+ ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 233.7 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 147 W (without card) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 72.1 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S6720-30C-EI-24S-AC Features
l S6720-EI provides multiple security measures to defend against Denial of Service (DoS) attacks, as well as attacks against networks or users. DoS attack types include SYN Flood attacks, Land attacks, Smurf attacks, and ICMP Flood attacks. Attacks to networks refer to STP BPDU/root attacks. Attacks to users include bogus DHCP server attacks, man-in-the-middle attacks, IP/MAC spoofing attacks, and DHCP request flood attacks. DoS attacks that change the CHADDR field in DHCP packets are also attacks against users.
l S6720-EI supports DHCP snooping, which generates user binding entries based on users' access interfaces, MAC addresses, IP addresses, IP address leases, and VLAN IDs. DHCP snooping discards invalid packets that do not match any binding entries, such as ARP spoofing packets and IP spoofing packets. This prevents hackers from using ARP packets to initiate attacks on campus networks. The interface connected to a DHCP server can be configured as a trusted interface to protect the system against bogus DHCP server attacks.
l S6720-EI supports strict ARP learning, which prevents ARP spoofing attacks that exhaust ARP entries. The S6720-EI also provides an IP source check to prevent DoS attacks caused by MAC address spoofing, IP address spoofing, and MAC/IP spoofing. URPF, provided by the S6720-EI, authenticates packets by checking the packet transmission path in reverse, which can protect the network against source address spoofing attacks.
Huawei S6720-30C-EI-24S-AC Ordering Info
| Item | Product Description |
| 1 | S6720-30C-EI-24S-AC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 600W AC power supply) |
| 2 | S6720-54C-EI-48S-AC bundle (48×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 600W AC power supply) |
| 3 | S6720-30C-EI-24S-DC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 350W DC power supply) |
| 4 | S6720-54C-EI-48S-DC bundle (48×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 350W DC power supply) |
| 5 | S6720S-26Q-EI-24S-AC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 170W AC power supply) |
| 6 | 4× 40GE QSFP+ interface card (used in S6720EI series) |
| 7 | 8× 10GE SFP+ interface card (used in S6720EI series) |
| 8 | Fan box (B, FAN panel side exhaust) |
| 9 | 600W AC power module |
| 10 | 350W DC power module |
| 11 | 170W AC power module |
| 12 | 170W DC power module |
Huawei S6720-30C-EI-24S-AC Networking and Applications
More Information
| Brand | Huawei |
|---|
