S6720-30C-EI-24S-DC
1996.18
Details

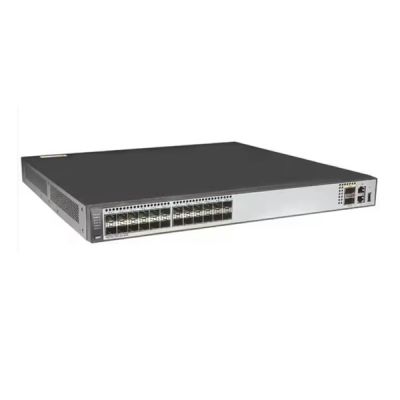

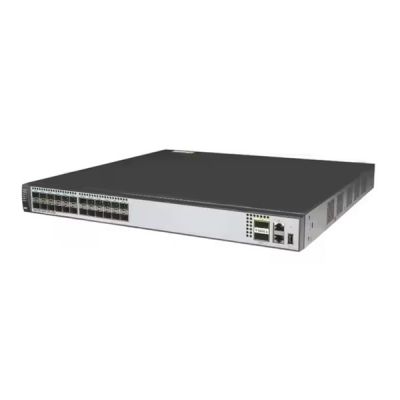

Huawei S6720-30C-EI-24S-DC is a next-generation 10G box switch with 24×10GE SFP+, 2×40GE QSFP+ ports, One extended slot and Double hot swappable AC/DC power supplies. It can function as an access switch in an Internet data center (IDC) or a core/aggregation switch on a campus network. S6720-EI has industry-leading performance, provides line-speed 10GE access ports and line-speed 40GE uplink ports. It can be used in a data center to provide 10 Gbit/s access to servers or function as a core switch on a campus network to provide 10 Gbit/s traffic aggregation. In addition, S6720-EI supports Ethernet Ring Protection Switching (ERPS), also referred to as G.8032. As the latest ring network protocol, ERPS was developed based on traditional Ethernet MAC and bridging functions and uses mature Ethernet OAM function and a ring automatic protection switching (R-APS) mechanism to implement millisecond-level protection switching. ERPS supports various services and allows flexible networking, helping customers build a network with lower OPEX and CAPEX.

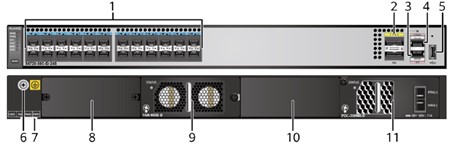

| 1, Twenty-four 10GE SFP+ ports | 2, Two 40GE QSFP+ ports |
| 3, One ETH management port | 4, One console port |
| 5, One USB port | 6, Ground screw |
| 7, ESN label | 8, Rear card slot |
| 9, Fan slot | 10, Power module slot 2 |
| 11, Power module slot 1 |
Huawei S6720-30C-EI-24S-DC Specifications
| Item | Description |
| Part number | 02350NHU |
| Model | S6720-30C-EI-24S-DC |
| Specifications | 24×10GE SFP+, 2×40GE QSFP+ ports |
| Memory (RAM) | 2 GB |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 80.60 years (without card) |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) | |
| Weight (with packaging) | 9.8 kg (21.61 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE QSFP+ ports (a maximum of 6 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 212.5 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 141 W (without card) |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 72.1 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
Huawei S6720-30C-EI-24S-DC Features
l S6720-EI supports redundant power supplies. You can choose a single power supply or use two power supplies to ensure device reliability. With two fans, the S6720-EI has a longer MTBF time than its counterpart switches.
l S6720-EI supports MSTP multi-process that enhances the existing STP, RSTP, and MSTP implementation. This function increases the number of MSTPs supported on a network. It also supports enhanced Ethernet reliability technologies such as Smart Link and RRPP, which implement millisecond-level protection switchover and ensure network reliability. Smart Link and RRPP both support multi-instance to implement load balancing among links, optimizing bandwidth usage.
l S6720-EI supports the enhanced trunk (E-Trunk) feature. When a CE is dual-homed to two S6720s-EI (PEs), E-Trunk protects the links between the CE and PEs and implements backup between the PEs. E-trunk enhances link reliability between devices.
l S6720-EI supports the Smart Ethernet Protection (SEP) protocol, a ring network protocol applied to the link layer on an Ethernet network. SEP can be used on open ring networks and can be deployed on upper-layer aggregation devices to provide fast switchover (within 50 ms), ensuring the non-stop transmission of services. SEP features simplicity, high reliability, fast switchover, easy maintenance, and flexible topology, facilitating network planning and management.
Huawei S6720-30C-EI-24S-DC Ordering Info
| Item | Product Description |
| 1 | S6720-30C-EI-24S-AC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 600W AC power supply) |
| 2 | S6720-54C-EI-48S-AC bundle (48×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 600W AC power supply) |
| 3 | S6720-30C-EI-24S-DC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 350W DC power supply) |
| 4 | S6720-54C-EI-48S-DC bundle (48×10GE SFP+, 2×40GE QSFP+ ports, with 1 extended slot, with 350W DC power supply) |
| 5 | S6720S-26Q-EI-24S-AC bundle (24×10GE SFP+, 2×40GE QSFP+ ports, with 170W AC power supply) |
| 6 | 4× 40GE QSFP+ interface card (used in S6720EI series) |
| 7 | 8× 10GE SFP+ interface card (used in S6720EI series) |
| 8 | Fan box (B, FAN panel side exhaust) |
| 9 | 600W AC power module |
| 10 | 350W DC power module |
| 11 | 170W AC power module |
| 12 | 170W DC power module |
Huawei S6720-30C-EI-24S-DC Networking and Applications
