S6720-30L-HI-24S
2100.15
Details
Huawei S6720-30L-HI-24S is a fixed IDN-ready switch with 10GE downlink and 40GE/100GE uplink ports, and are applicable to enterprise campus, carrier, university, and government networks. S6720-HI has native access controller (AC) capabilities and can manage 1K wireless access points (APs). It also provides a free mobility function to ensure a consistent user experience, and is VXLAN-capable to implement network virtualization. Moreover, S6720-HI is designed with built-in security probes and supports abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat deception. This switch is ideal for enterprise campuses, carriers, higher education institutions, and governments.

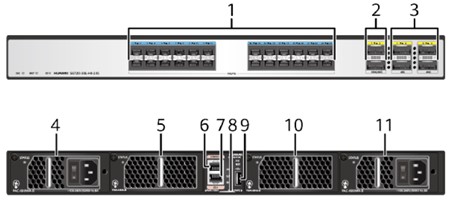

| 1, Twenty-four 10GE SFP+ ports | 2, Two 100GE/40GE QSFP28 ports |
| 3, Four 40GE QSFP+ ports | 4, Power module slot 1 |
| 5, Fan slot 1 | 6, One console port |
| 7, One ETH management port | 8, ESN label |
| 9, One USB port | 10, Fan slot 2 |
| 11, Power module slot 2 | 12, Ground screw |
Huawei S6720-30L-HI-24S Specifications
| Item | Description |
| Part number | 02351MXR |
| Model | S6720-30L-HI-24S |
| Specifications | 24 x 10 Gig SFP+, 4 x 40 Gig QSFP+, 2 x 100 Gig QSFP28 |
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 61.42 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | NA |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
| Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode | |
| Weight (with packaging) | 9.9 kg (21.83 lb) |
| Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
| Any 40GE QSFP+ ports (a maximum of 6 physical ports) | |
| Any 100GE QSFP28 ports (a maximum of 2 physical ports) | |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| -48 V DC to -60 V DC | |
| Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| -38.4 V DC to -72 V DC | |
| Maximum power consumption (100% throughput, full speed of fans) | 232 W |
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 138 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 65 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification | EMC certification Safety certification Manufacturing certification |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 445.6 mm (1.72 in. x 17.4 in. x 17.54 in.) |
Huawei S6720-30L-HI-24S Features
l S6720-HI integrates the AC function, so customers do not need to buy independent AC devices or hardware components. An S6720-HI switch can manage 1K APs and 16K users, adapting to the fast growth of wireless services.
l S6720-HI supports SVF and functions as a parent switch. With this virtualization technology, a physical network with the "Small-sized core/aggregation switches + Access switches + APs" structure can be virtualized into a "super switch", offering the industry's simplest network management solution.
l S6720-HI uses the Packet Conservation Algorithm for Internet (iPCA) technology that changes the traditional method of using simulated traffic for fault location. iPCA technology can monitor network quality for any service flow anywhere, anytime, without extra costs. It can detect temporary service interruptions in a very short time and can identify faulty ports accurately. This cutting-edge fault detection technology turns "extensive management" to "fine granular management."
l S6720-HI supports Two-Way Active Measurement Protocol (TWAMP) to accurately check any IP link and obtain the entire network's IP performance. This protocol eliminates the need of using a dedicated probe or a proprietary protoco
Huawei S6720-30L-HI-24S Ordering Info
| Item | Product Description |
| 1 | S6720-50L-HI-48S (48 x 10 Gig SFP+, 6 x 40 Gig QSFP+ or 44 x 10 Gig SFP+, 4 x 40 Gig QSFP+, 2 x 100 Gig QSFP28; without power module) |
| 2 | S6720-30L-HI-24S (24 x 10 Gig SFP+, 4 x 40 Gig QSFP+, 2 x 100 Gig QSFP28; without power module) |
| 3 | Fan box (B, FAN panel side exhaust) |
| 4 | 600 W AC power module |
| 5 | 350 W DC power module |
Huawei S6720-30L-HI-24S Networking and Applications
