CloudEngine 9860-4C-EI-A
22857.46
Details
Huawei CloudEngine 9860-4C-EI-A is a next-generation Ethernet switch designed for DCs. The product features high performance, high port density, low latency, and flexible cards. The switch is built on an advanced hardware structure and provide high-density 400GE, 100GE, and 40GE ports. Running over the Huawei VRP8 software platform, it supports abundant DC features. Additionally, CloudEngine 9860-4C-EI-A series switches can work with the CloudEngine 16800/8800/6800/5800 series switches to build an elastic, virtual, and high-quality data center network (DCN), meeting networking requirements of DCs in the cloud computing era.
CloudEngine 9860-4C-EI-A can function as core or aggregation switches on DCNs to help enterprises and carriers build a DCN platform for cloud computing. They can also be used as aggregation or core switches on campus networks
Furthermore, the switch supports Huawei IDN One Software (N1) business model, which bundles iMaster NCE-Fabric, iMaster NCE-FabricInsight, and CloudEngine switches in typical scenarios to simplify transactions. This provides customers with more functions and value, and protects customers' software investment through Software License Portability.

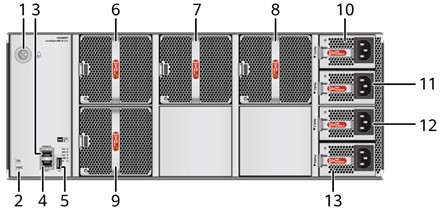

| 1, Ground screw | 2, SN and MAC address label |
| 3, Console port | 4, ETH management port (RJ45) |
| 5, USB 2.0 port | 6, Fan slot 1 |
| 7, Fan slot 2 | 8, Fan slot 3 |
| 9, Fan slot 4 | 10, Power supply slot 1 |
| 11, Power supply slot 2 | 12, Power supply slot 3 |

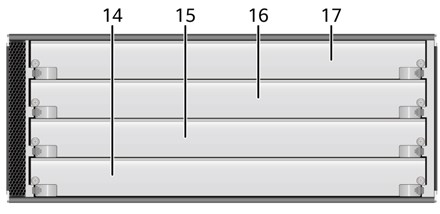

| 13, Power supply slot 4 | 14, Card slot 1 |
| 15, Card slot 2 | 16, Card slot 3 |
| 17, Card slot 4 |
Huawei CloudEngine 9860-4C-EI-A Specifications
| Item | Details |
| Part Number | 02355FEA |
| Model | CE9860-4C-EI-A |
| Description | CE9860-4C-EI-A mainframe (4*subcard slots, without fan and power modules) |
| First supported version | V200R022C10 |
| Dimensions with packaging (H x W x D) [mm (in.)] | 485 mm x 670 mm x 1060 mm (19.09 in. x 26.38 in. x 41.73 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 175 mm x 442 mm x 765 mm (6.89 in. x 17.40 in. x 30.12 in.) |
| Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 175 mm x 442 mm x 817.5 mm (6.89 in. x 17.40 in. x 32.19 in.) | |
| Weight without packaging [kg (lb)] | 26.9 kg (59.30 lb) (excluding fan modules, power modules, and cards) |
| Weight without packaging (full configuration) [kg (lb)] | 43.2 kg (95.24 lb) (with four power modules, four fan modules, and four cards) |
| 33.04 kg (72.84 lb) (with four power modules and four fan modules) | |
| Weight with packaging [kg (lb)] | 51.9 kg (114.42 lb) (excluding fan modules, power modules, and cards) |
| Weight with packaging (full configuration) [kg (lb)] | 68.2 kg (150.36 lb) (with four power modules, four fan modules, and four cards) |
| 58.04 kg (127.96 lb) (with four power modules and four fan modules) | |
| Chassis height [U] | 4 U |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 16-core, 2 GHz |
| Memory | DRAM: 16 GB |
| NOR Flash | 64 MB x 2 |
| SSD Flash | 8 GB |
| USB | Supported |
| Power supply mode | DC pluggable |
| AC/HVDC pluggable | |
| Console port | RJ45 |
| Service port supporting the stack function | Not supported |
| RTC | Supported |
| Number of power modules | 4 |
| Redundant power supply | 2+2 backup |
| Rated input voltage [V] | 1200 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC |
| 1200 W DC power module: –48 V DC: –48 V DC to –60 V DC; +48 V DC: +40 V DC to +57 V DC | |
| Input voltage range [V] | 1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC |
| 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC | |
| Maximum input current [A] | 1200 W AC&240 V DC power module: 10 A (100 V AC to 130 V AC); 8 A (200 V AC to 240 V AC); 8 A (240 V DC) |
| 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC) | |
| Rated output power [W] | 1200 W AC&240 V DC power module: 1200 W |
| 1200 W DC power module: 1200 W | |
| Certification | Compliance with safety standards |
| Compliance with EMC standards | |
| Compliance with environment and environmental protection standards | |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode |
| DC: 4 kV in common mode and 2 kV in differential mode | |
| HVDC: 4 kV in common mode and 2 kV in differential mode | |
| Types of fans | Pluggable |
| Number of fan modules | 4 |
| Redundant fans | The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately. |
| Heat dissipation mode | Air cooling |
| Airflow direction | Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side. |
| Availability | 0.999997861 |
| MTBF [year] | 42.79 years |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Back-to-front airflow: < 66 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Back-to-front airflow: < 81 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
Huawei CloudEngine 9860-4C-EI-A Features
l 25.6 Tbit/s switching, 8000 Mpps forwarding, and L2/L3 full line-rate forwarding capabilities
l Up to 32 x 400GE QSFP-DD ports or 128 x 100GE QSFP28 ports, making the switches ideal for functioning as the core, aggregation, and access switches on DCNs and campus networks
l 100GE QSFP28 ports, supporting 100GE optical modules and 40GE QSFP+ optical modules
l Device-wide 65 MB buffer, effectively dealing with the incast scenario of the distributed system and minimizing the packet loss rate
l Buffer model configurable based on service needs to better adapt to different application scenarios
l ZTP provides built-in scripts through open APIs. DC users can use a programming language they are familiar with, such as Python, to centrally configure network devices.
l ZTP decouples the configuration time of devices from the device quantity and area distribution, which improves service provisioning efficiency.
Huawei CloudEngine 9860-4C-EI-A Ordering Info
| CE9860-4C-EI-A-B | CE9860-4C-EI-A mainframe (4*subcard slots, 4*AC power modules, port-side intake) |
| CE9860-4C-EI-A-B1 | CE9860-4C-EI-A mainframe (4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card,port-side intake) |
| CE9860-4C-EI-A | CE9860-4C-EI-A mainframe (4*subcard slots, without fan and power modules) |
| CE98-D32CQ-A | CE98: 32-port 100GE QSFP28 LPU |
| CE98-D8DQ | CE98: 8-port 400GE QSFPDD LPU |
| Model | Description |
| PAC1K2S12-PB | 1200W AC&240V DC Power Module (Back to Front,Power panel side exhaust) |
| PDC1K2S12-CE | 1200W DC Power Module (Back to |
| Front,Power panel side exhaust) | |
| FAN-180C-B | Fan box(B,FAN panel side exhaust) |
| N1-CE98LIC-CFFD | N1-CloudFabric Foundation SW License for CloudEngine 9800 |
| N1-CE98CFFD- SnS1Y | N1-CloudFabric Foundation SW License for CloudEngine 9800-SnS-Year |
| N1-CE98LIC-CFAD | N1-CloudFabric Advanced SW License for CloudEngine 9800 |
| N1-CE98CFAD-SnS1Y | N1-CloudFabric Advanced SW License for CloudEngine 9800-SnS-Year |
| N1-CE98LIC-CFPM | N1-CloudFabric Premium SW License for CloudEngine 9800 |
| N1-CE98CFPM-SnS1Y | N1-CloudFabric Premium SW License for CloudEngine 9800 -SnS-Year |
| N1-CE98LIC-AIF | N1-CloudEngine 9800 AI Fabric Function |
| N1-CE98AIF-SnS1Y | N1-CloudEngine 9800 AI Fabric Function-SnS-Year |
| N1-CE-F-LIC-DM | N1-CloudEngine Digital Map Function-Fixed |
| N1-CEFDM-SnS1Y | N1-CloudEngine Digital Map Function, Per Fixed device-SnS-Year |
| N1-CE-LIC-AFP1KVM | N1-CloudEngine Network Intelligent Analysis Flow Advantage Per 1000 VM,Electronic |
| N1-CEAFP1KVM-SnS1Y | N1-CloudEngine Network Intelligent Analysis Flow Advantage Per 1000 VM-SnSYear,Electronic |
| N1-CE-F-LIC-MDCA | N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package - Fixed |
| N1-CEFMDCA -SnS1Y | N1-CloudEngine Data Center Switch Multi-cloud Multi-DC Value-added Package, Per Fixed device-SnS-Year |
Huawei CloudEngine 9860-4C-EI-A Networking and Applications
More Information
| Brand | Huawei |
|---|
