RSP-500
70.13

RSP-500

As low as $70.13

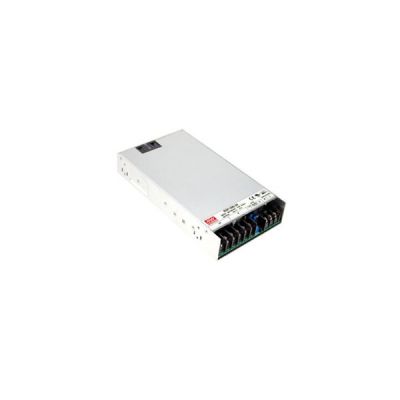

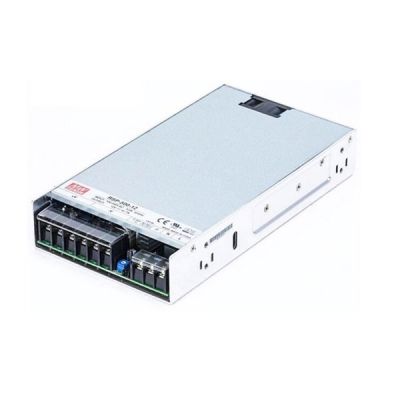

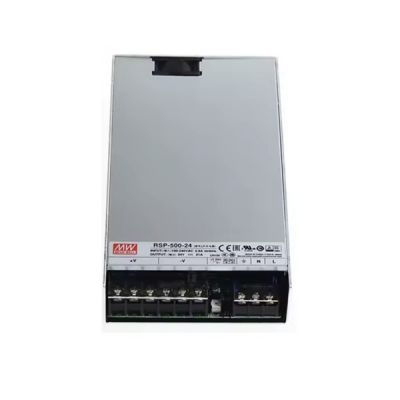

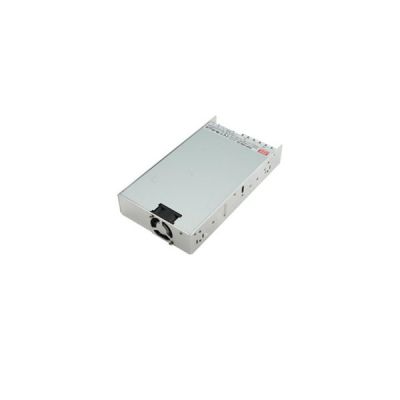

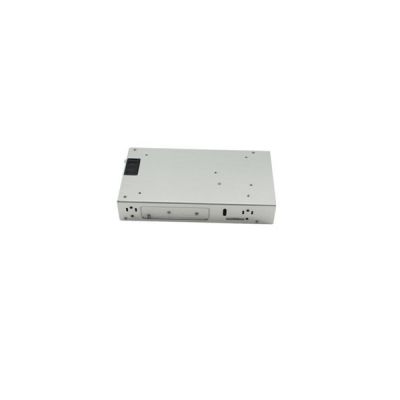

Meanwell 500W Single Output with PFC Function

- +
Availability:In stock
SKU Meanwell RSP-500
Brand Meanwell
Details

Meanwell RSP-500 Series is a 500W single output enclosed type AC/DC power supply. The series operates for 85-264VAC input voltage, and offers them with the DC output mostly demanded from the industry. RSP-500 is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. Moreover, RSP-500 provides vast design flexibility by equipping various built-in functions such as remote ON-OFF control, remote sense, DC OK signal, etc. Considering its high efficiency, long longevity and excellent reliability, Meanwell RSP-500 Series is an ideal high price-to-performance power supply solution for various applications.

RSP-500 Meanwell Power Supply 500W Single Output PFC Function AC/DC Enclosed Type Universal AC input/Full range YCICT

Meanwell RSP-500 Series Encoding

RSP Series Name
500 Output Wattage
24 Output Voltage (3.3V/4V/5V/12V/15V/24V/27V/48V)

Meanwell RSP-500 Series Model Specifications

Model RSP-500-3.3 RSP-500-4 RSP-500-5 RSP-500-12 RSP-500-15 RSP-500-24 RSP-500-27 RSP-500-48
Output DC VOLTAGE 3.3V 4V 5V 12V 15V 24V 27V 48V
RATED CURRENT 90A 90A 90A 41.7A 33.4A 21A 18.6A 10.5A
CURRENT RANGE 0-90A 0-90A 0-90A 0-41.7A 0-33.4A 0-21A 0-18.6A 0-10.5A
RATED POWER W 297W 360W 450W 500.4W 501W 504W 502.2W 504W
RIPPLE & NOISE (max.) mVp-p 120 120 150 150 150 150 150 150
VOLTAGE ADJ. RANGE 2.8-3.6V 3.6-4.3V 4.5-5.5V 10-13.2V 13.5-18V 20-26.4V 26-30V 41-56V
VOLTAGE TOLERANCE ±2% ±2% ±2% ±1% ±1% ±1% ±1% ±1%
LINE REGUL ATION ±0.5% ±0.5% ±0.5% ±0.3% ±0.3% ±0.2% ±0.2% ±0.2%
LOAD REGULATION ±1% ±1% ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1500ms, 80ms/230VAC 3000ms, 80ms/115VAC at full load
HOLD UP TIME  18ms/230VAC 14ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.)  81.00% 83.00% 84.00% 88.00% 88.00% 89.00% 89.50% 90.50%
AC CURRENT (Typ.) 4.2A/115VAC 2.1 A/230VAC 5.3A/115VAC 2.65 A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 40A/230VAC
LEAKAGE CURR ENT <2mA / 240VAC
PROTECTION OVERLOAD 105 ~ 130% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-4.5V 4.5-5.3V 5.75-6.75V 13.8-16.2V 18.8-21.8V 27.6-32.4V 32.9-38.3V 58.4-68V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION REMOTE CONTROL POWER ON:open or 0~0.8VDC between RC+(Pin 4)&RC-(Pin3) on CN100 POWER OFF: 4~10VDC between RC+(Pin 4)&RC-(Pin3) on CN100
REMOTE SENSE Compensate voltage drop on the load wiring up to 0.3V
FAN CONTROL (Typ.) RTH2>=50±10 Fan on ; RTH2<=40±10 Fan off (Fan always on for 3.3~5V,Fan ON/OFF control for 12~48V)
ENVIRONMENT WORKING TEMP -30 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 45)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 , CCC GB4943.1 , BSMI CNS14336-1approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020,GB/T 9254, CNS13438 Class-B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, criteria A, EAC TP TC 020
Others MTBF 187.7K hrs min. MIL-HDBK-217F (25 )
DIMENSION 230*127*40.5mm (L*W*H)
PACKING 1.3Kg; 9pcs/12.7Kg/0.7CUFT

Meanwell RSP-500 Series Features

l  Universal AC input / Full range

l  Built-in active PFC function

l  High efficiency up to 90.5%

l  Forced air cooling by built-in DC fan

l  Built-in remote ON-OFF control / remote sense / DC OK signal

l  Protections: Short circuit / Overload / Over voltage/ Over temperature

l  3 years warranty

RSP-500 Meanwell Power Supply 500W Single Output with PFC AC/DC Enclosed Type Universal AC input/Full range YCICT

Meanwell RSP-500 Series Applications

l  Factory control or automation apparatus

l  Test and measurement instrument

l  Laser related machine

l  Burn-in facility

l  RF application

RSP-500 Meanwell Power Supply 500W Single Output PFC AC/DC Enclosed Type Universal AC input/Full range YCICT

Meanwell RSP-500 Series Mechanical Diagram

RSP-500 Meanwell Power Supply 500W Single Output AC/DC Enclosed Type Universal AC input/Full range 1U low profile YCICT

RSP-500 Meanwell Power Supply 500W Single Output AC/DC Enclosed Universal AC input/Full range 1U low profile YCICT
